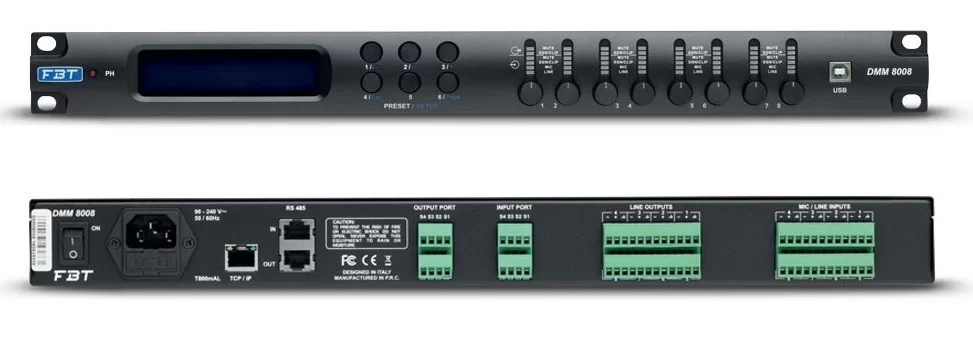

digital matrix mixer DMM 8008 ( Sound System )

The DMM 8008 is a sound system 8 input x 8 output digital matrix mixer. It includes 8 independently switchable Line/ Mic inputs with Phantom power supply, 8 Line outputs, managed by a powerful DSP engine, in addition to high performance D/A converters.

• Excellent audio performance with 24 bit converters coupled with 48kHz sample rate

• 8 Mic/Line inputs, 8 outputs with full matrix mixing, 3 band parametric equalization and Low/High pass filters per input channel

• 5 band parametric equalization per output channel; each band can be switched to peaking, Low/High shelving with variable Q response

• Crossover filters with slopes from 6dB/Octave up to 24dB/Octave including Butterworth, Bessel, Linkwitz-Riley

• Gain control, Noise Gate, Feedback eliminator (Mic input only) per input channel

• Each output features a precision dynamic range controller composed of a Peak Limiter and a RMS Compressor with selectable ratio and variable knee

• Automixing functions include: Configurable NOM attenuation, Gain sharing algorithm, Priority Ducking

• Adjustable Delay time up to 380mS per output channel
