Access Control System

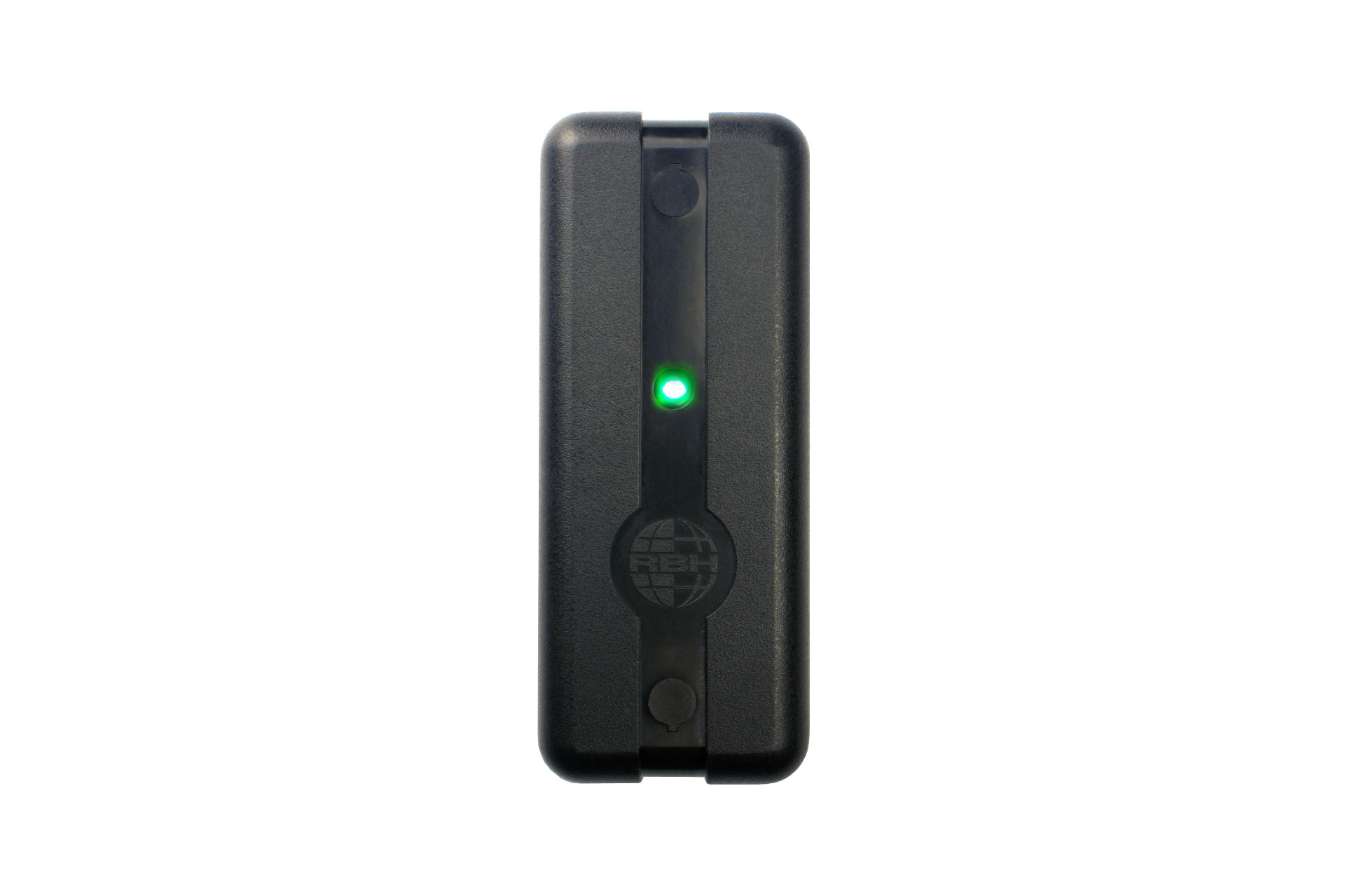

RBH-FR-360N Family RBH-FR-360N Family it's an Access Control System, utilizing proven digital radio frequency identification (RFID) technology, RBH-FR-360N Proximity Readers deliver the best in class read ranges and reliable operation. Mounting is simplified with vertical and horizontal mounting slots, instead of holes, which allow the reader to be conveniently adjusted and leveled. To allow both indoor and outdoor operation the electronics are sealed in tamper resistant epoxy potting. Notable features for these are: low power consumption, easy-to-install readers that include Wiegand interface, independently controllable multi-color LED and audio sounder. These readers are also available with additional formats* as well as MIFARE, CSN and MIFARE Sector: RBH-FR-360N: AWID+Keri (Wiegand)- 125 KHz RBH-FR-360N-H: AWID and more* - 125KHz RBH-FR-360N-STO: MIFARE and more* - 13.56 MHz Externally controlled built-in piezo sounder Compatible with all standard access control systems • Best-in-class read range* • FR-360N direct on-metal mounting** • Mounts onto a single gang electrical switch box with the optional back plate • Internal [...]

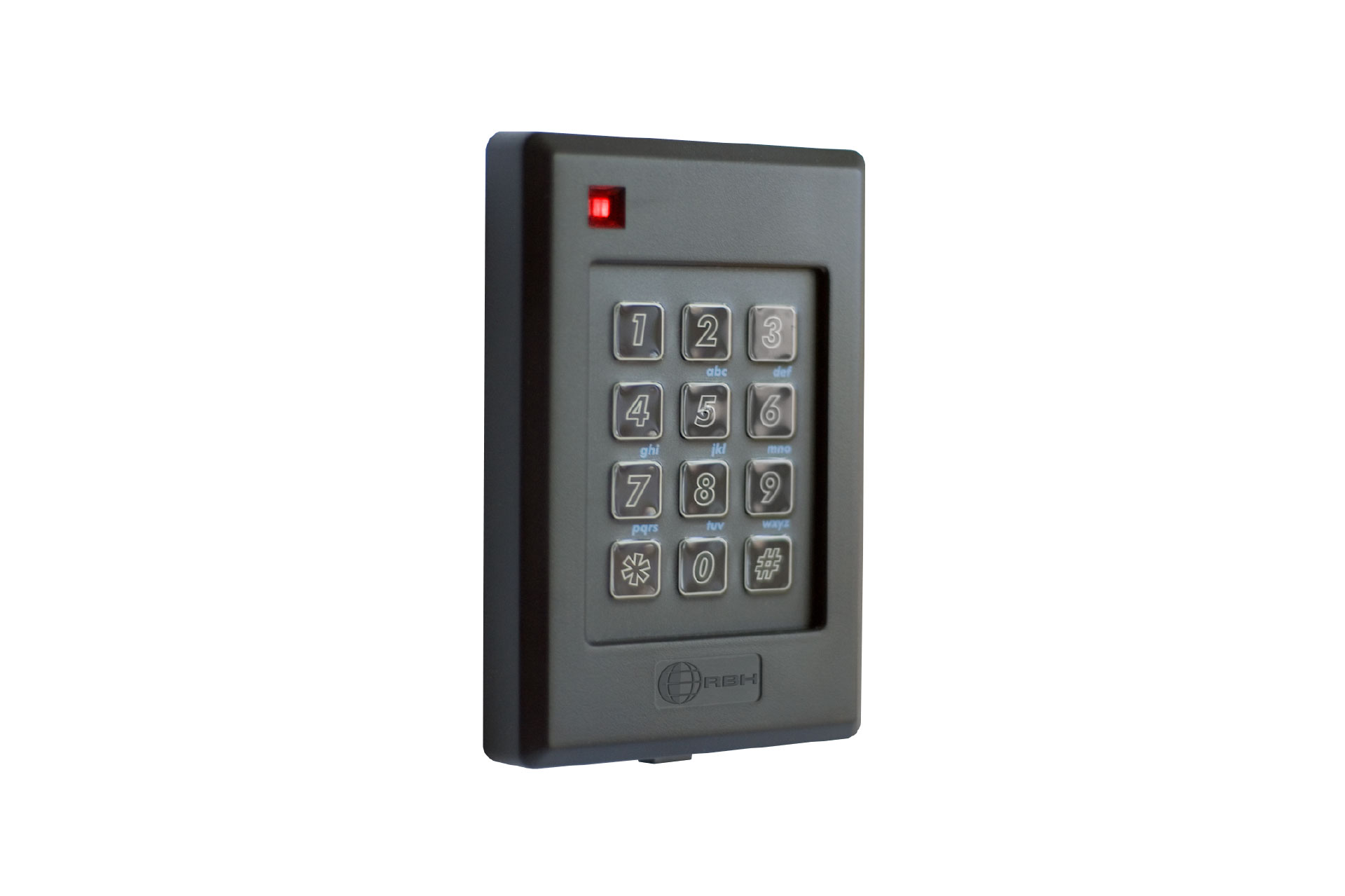

Prox Reader / Keypad FK-640 it's an Access Control System that utilizing proven digital radio frequency identification (RFID) technology, RBH FK-640 Proximity Reader and Keypad may be mounted directly to standard single-gang US wall-boxes, and is ideal for applications requiring an access credential and/or personal identification number (PIN), such as high security dual verification. Keypad data is transmitted via the reader’s data lines in either an 8-Bit Burst or 26-Bit Wiegand data format. The alpha-numeric keypad itself makes use of a durable (no moving parts), non-mechanical capacitive technology. Enhancements include tactile feedback, and a raised ‘pip’ on the 5-key for use by visually impaired individuals. Mounting is simplified with horizontal and vertical mounting slots, instead of holes, which allow the reader to be conveniently adjusted and leveled. To allow both indoor and outdoor operation the electronics are sealed in tamper resistant epoxy potting. This unit is IP67 Rated Frequency: 125 KHz, Compatible credentials: 125 KHz AWID Reader Data Formats: Wiegand [...]

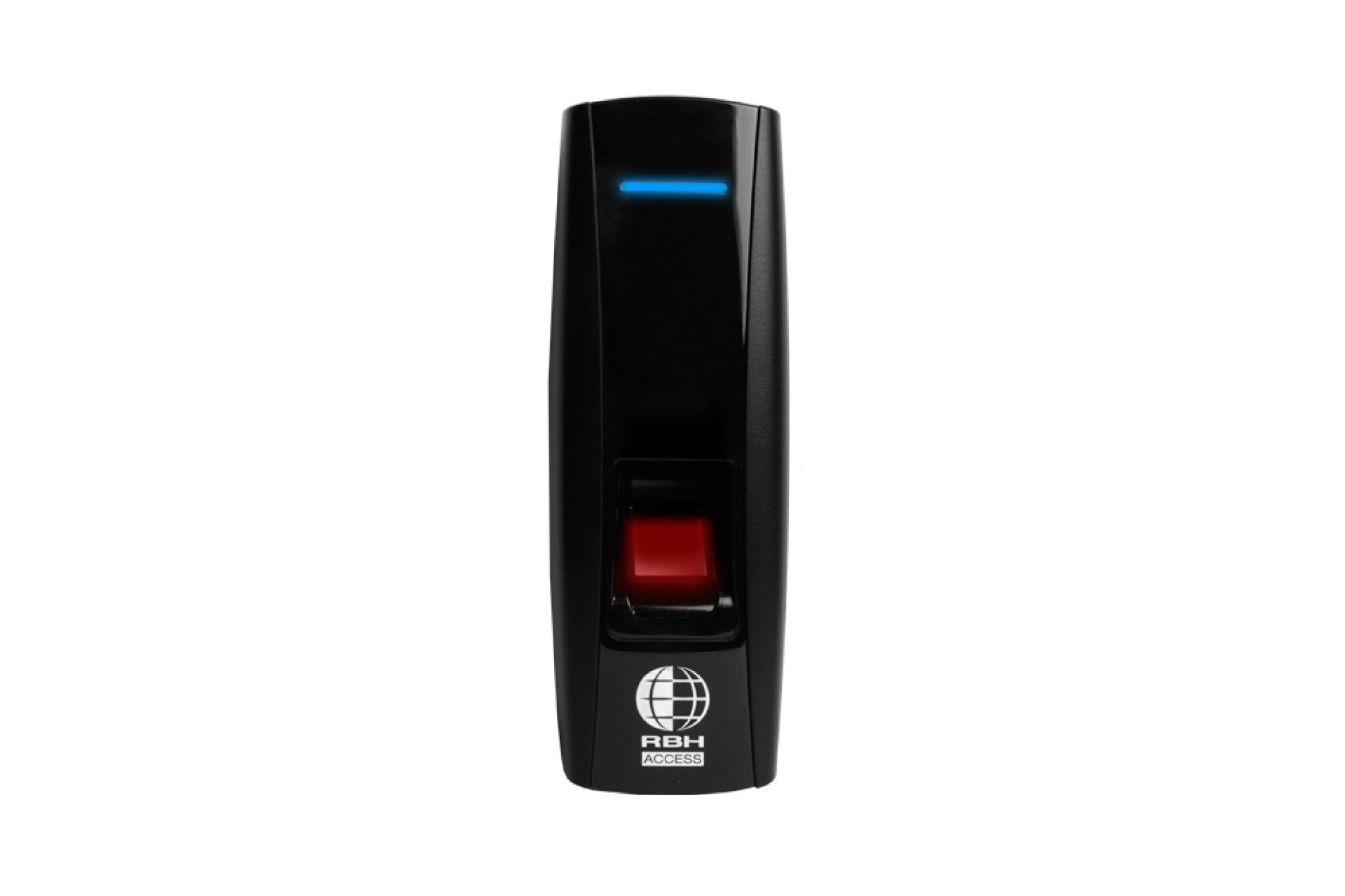

The BFR-150 fingerprint reader it's an Access Control System by RBH is available with a MIFARE smart card reader. Users will benefit from its unparalleled performance, ease-of-use, precision and fast matching speed. This fingerprint reader features a highly accurate optical sensor with tamper switch, advanced matching algorithm and a three color LED indicator for acceptance and rejection of fingerprints. Verification Option: Fingerprint/Fingerprint + Card / Card Verification Mode: 1:1 / 1:N Verification Time: Less Than 2.0 Seconds (1:1 Verification Mode) Registration Time: Less Than 3.0 Seconds Templates: Up to 9,500 PC to Reader / Panel to Reader: Ethernet TCP/IP Cable / Wiegand (6 Cond. Shielded, Stranded, 18-22 AWG) Wiegand Out: 1 Communication Speed: Ethernet 10/100M Integrated Reader: MIFARE CSN Measurements: 160 x 56.9 x 40mm Operating Temperature / Humidity 00C-650 C/ 5%-95% RH Rating: IP-65 Power: DC 9~24 V, 1A Follow Us on Linkedin Contact Us

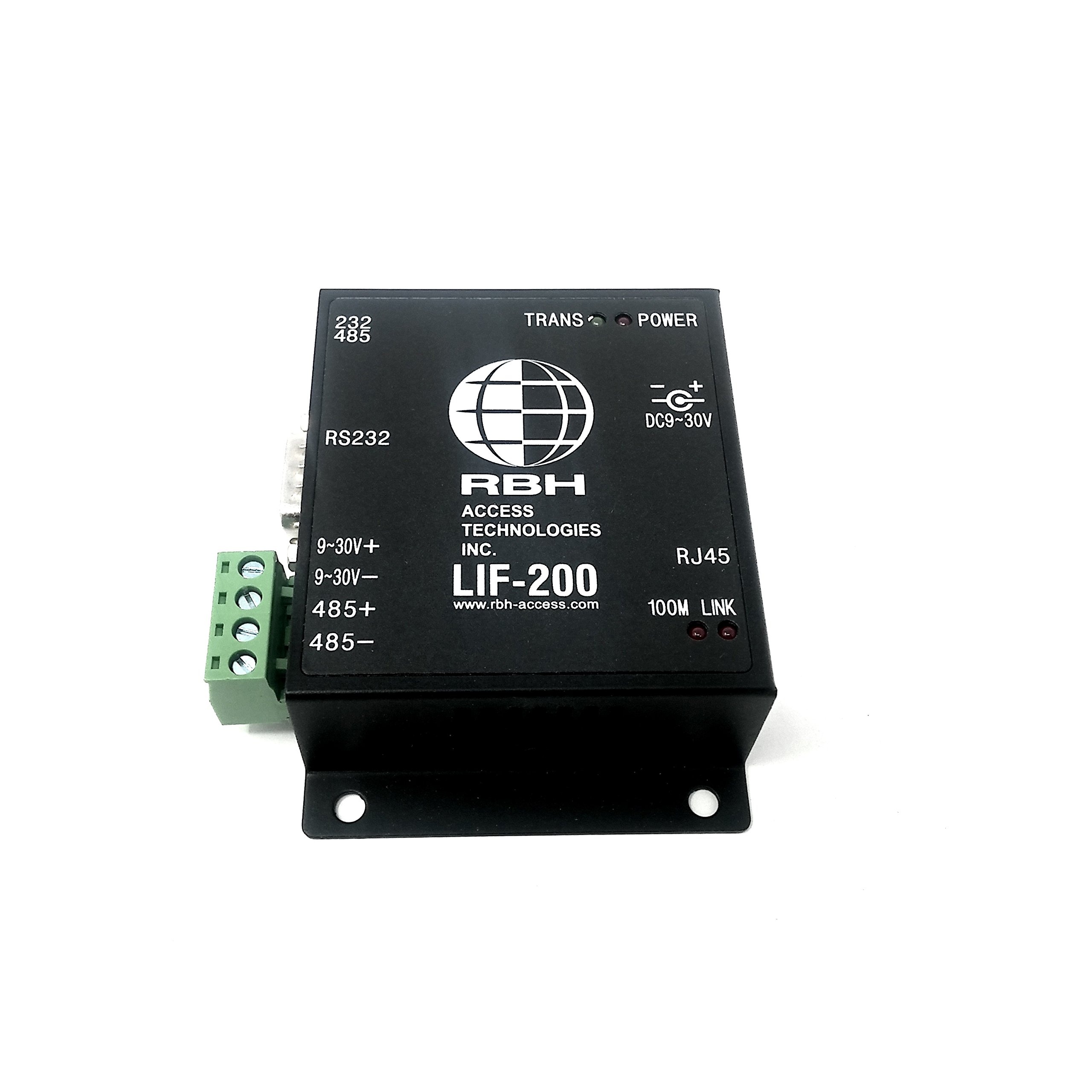

TCP/IP LAN Gateway Our LIF-200 TCP/IP LAN Gateway is an Access Control System, an inexpensive way to connect RBH Access Control panels to a host via the Internet or a local/wide are network. Both RS-485 and RS-232 are supported and are selectable via hardware switch. Reliable, field proven architecture makes for easy configuration and use. Our software communicates directly with LIF-200 gateway, without the need of third party software or “virtual Com ports”. Automatic discovery software is included. Configuration is easily performed via Internet browser. Just configure IP address and port number, type in same settings in the RBH software and you are ready to communicate. LIF-200 automatically detects and adjusts network connection speed. For complex configurations a variety of adjustable settings are available. Specifications: Processor / Memory 80186/512K LAN: Auto-detection 10/100Base-T (10/100 MBps) Network Connector: RJ45 (10/100Base-T) Ethernet Serial Com. Ports: 1 (RS-232 - RS-485) Port 1: Communications (Mounting header) Signals Used: RS-232: TxD, RxD, RTS, CTS, DTR, DSR, [...]

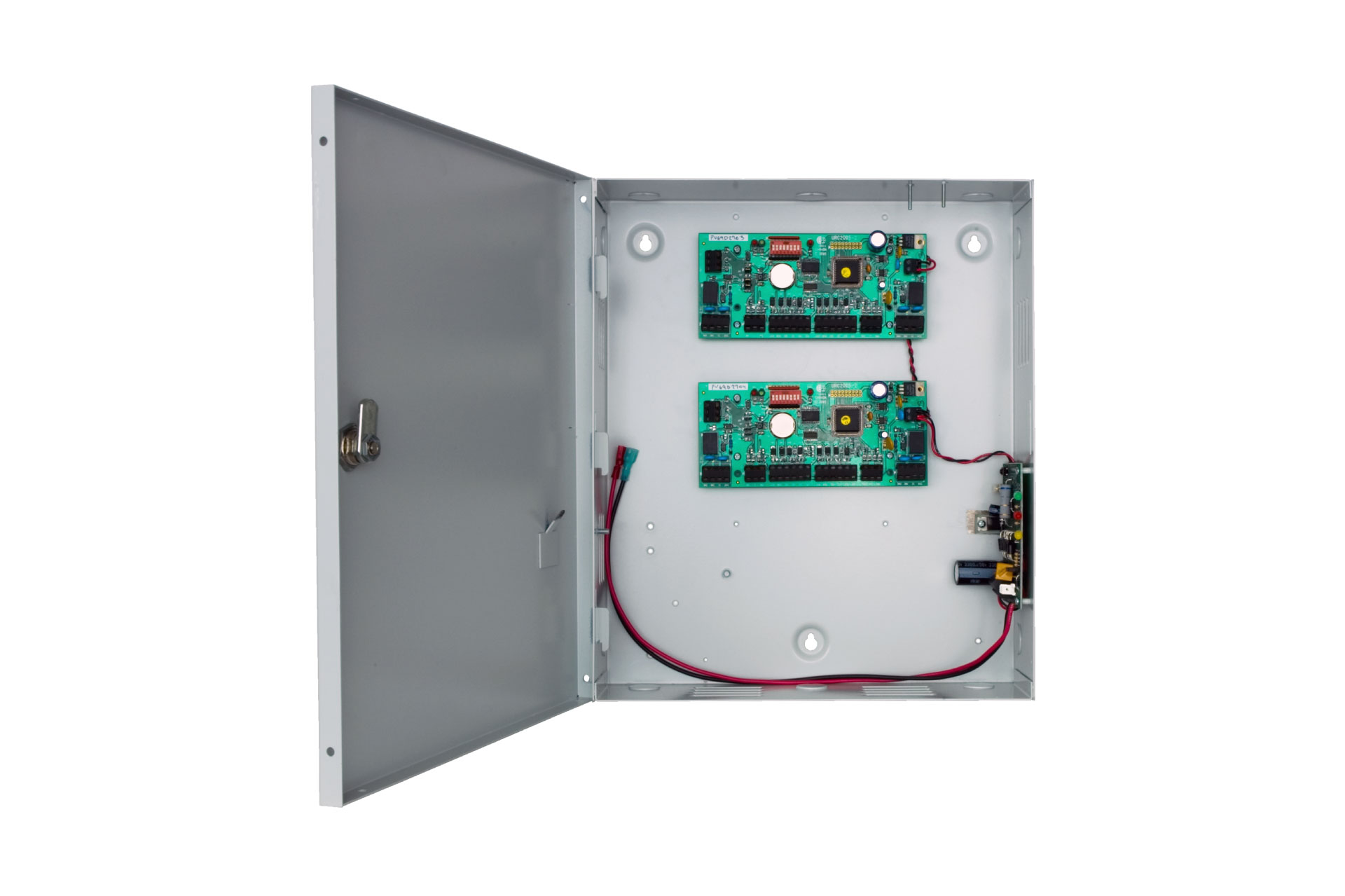

4 Door Panel/ Software Kit With Proximity Readers RBH-URC-2004-FR360N Kit it's an access control system which having Multi-swipe Functionality, Distributive Processing, Built in Clock and Connect via Serial Port, USB or Ethernet Network per PC: 32 (TCP/IP Ethernet or RS-485, supervised) Controllers per Network: 8 Communication Between Controllers: Supervised RS-485 Speed: Programmable 9.6-56 Kbps Distance: 4,000ft (1,200m) Cable Type: 18 AWG, 2 conductor, twisted, shielded Cards per Panel: 3,000 (up to ten digit card numbers) Access Levels per Panel: 3,000 (one per card per panel) Site Codes per Panel: 10 (site code programming is not mandatory) Offline Transactions Buffer: 3,000 FIFO, command and alarm priority Access Points (Readers/Keypads): 4 (Red, Green LED and Buzzer control) Distance: Max 500 ft (150m) Cable Type: 20-22 AWG, 6 or 8 conductor, shielded Simultaneous Card Formats per Panel: 5 Wiegand or Clock & Data Programmable Supervised Inputs: 8 Input Supervision: Four state monitoring (1 or 2 resistors) Distance: Max 1,000ft (300m) Cable Type: 20-22 [...]

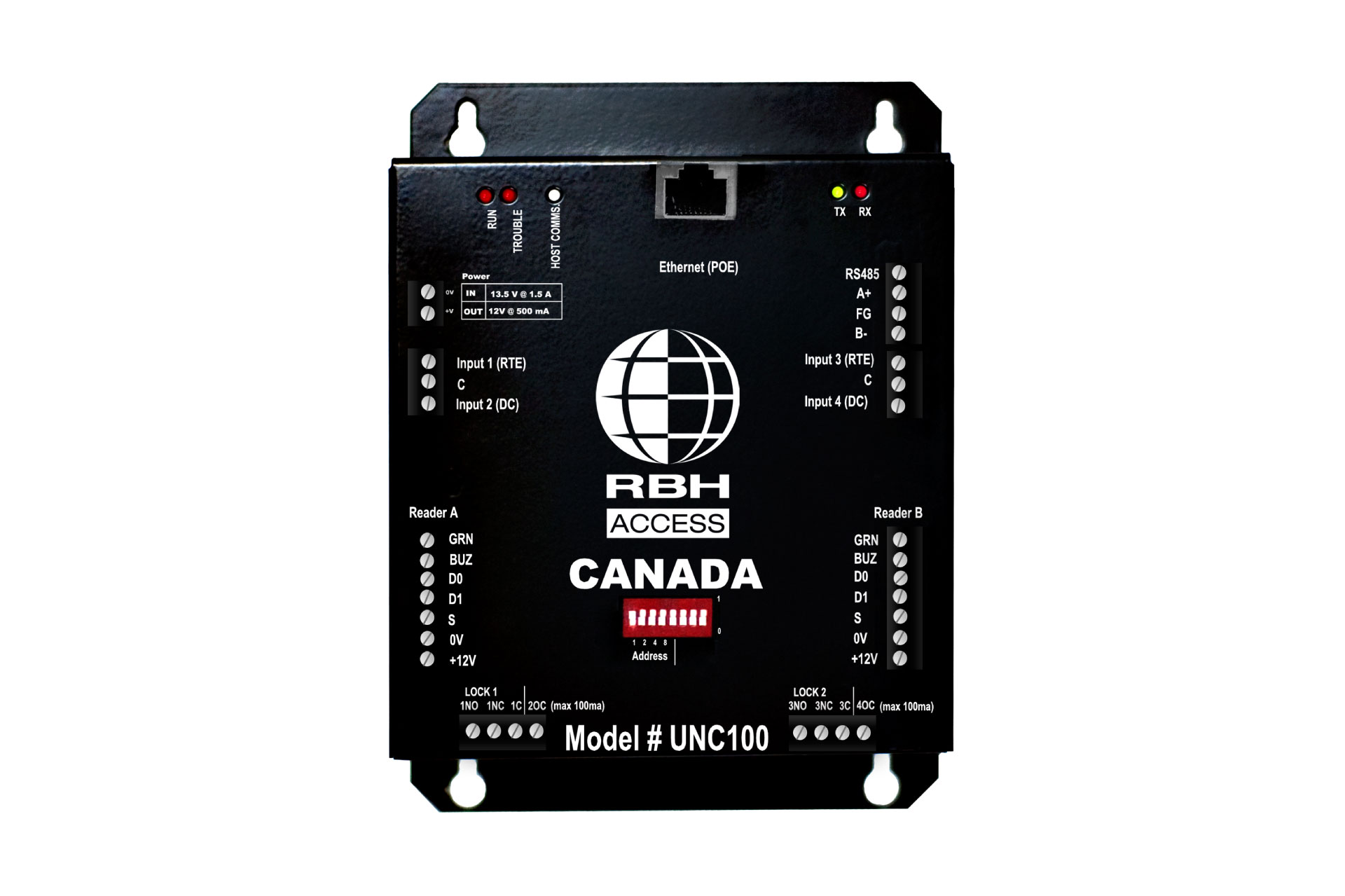

 INT-UNC100 ( Universal Network Controller ) The INT-UNC100 series is an access control system welcome addition to the new generation of powerful and reliable Integra hardware. The two door native TCP/IP controller comes equipped with an onboard battery backup charger and a 32-bit processor with encryption. On-board RS-485 channel makes it easy to provide connectivity to other RBH and 3rd party devices, such as: readers, burglar alarm panels, automation systems, etc. The UNC100-132 model comes equipped with IEEE 802.3at compliant PoE capability, further increasing the UNC series’ award-winning efficiency. Processor / Memory: 32-bit Processor / 2MB Memory Capacity: Cards 8,000 Event Log: 3,000 Firmware: Flash Communications: Built in TCP/IP, RS-485 Com Ports: 1 RS-485 programmable Cable Requirement: Shielded, twisted pair, 20 - 22 AWG; 4,000 ft (1,200 m) total Doors / I/O / Other: 2 Doors IN/OUT Mode (RBH-EXITRDR Compatible) On board Reader Ports: 2 Wiegand ports with up to 5 concurrent card formats Audio/Visual Controls: Red and Green reader [...]
