Intercall Nurse call

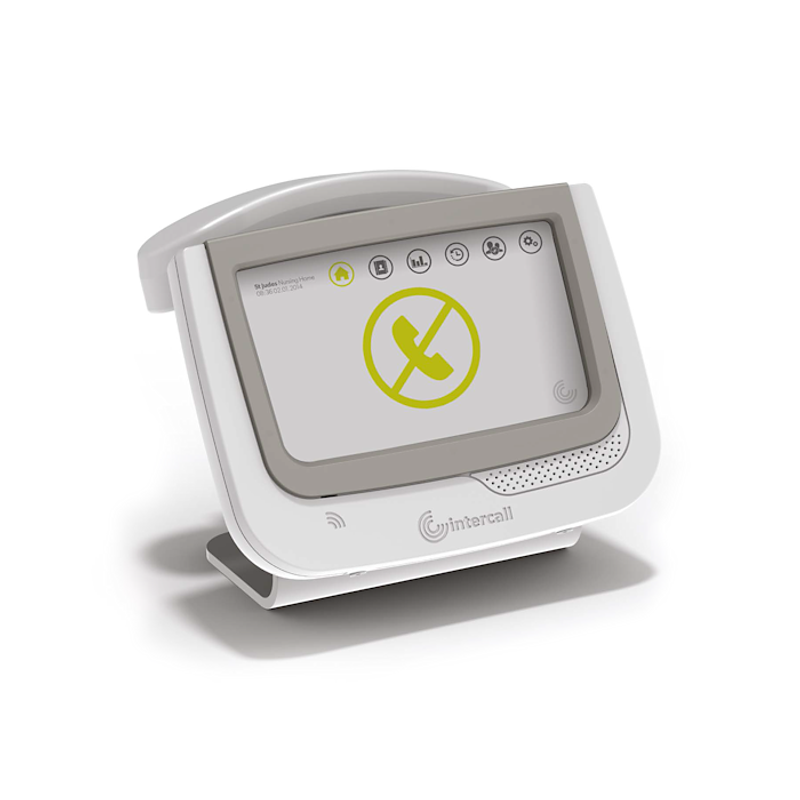

Touch Display Plus The Touch Display Plus is an Intercall Nurse call has all the functionality of our Touch Display, with the addition of a full duplex VoIP speech device. Perfect for larger hospitals or care residences, the Touch Display Plus is the central hub of the Touch Series nurse call system. Ideally installed on a desk, the Touch Display Plus is the primary nurse call system staff interaction point. It helps nursing staff with monitoring while notifying them of calls and alerts on the system. The Touch Display Plus allows staff to speak to patients and residents through its VoIP intercom system, allowing them to decide the most appropriate response. Follow Us on Linkedin Contact Us

905 Room Controller is an Intercall Nurse call designed to support up to 15 Touch Bus Devices. The Touch Room Controller requires a connection Bus Output Terminals Two sets of Bus Output terminals are provided in parallel. Caution Observe Polarity when connecting to these terminals. Ethernet POE The Touch Room Controller requires a connection to the Local Area Network using this RJ45 socket. The device is powered from POE (Power-Over-Ethernet) and is compliant with IEEE802.3af Class 0. LCD and Buttons The integral LCD menu for essential Ethernet settings is controlled via the two menu buttons, OK and MENU. LCD Menu The LCD menu is used to provide essential settings. Use the MENU button to advance to the next item and the OK button to action it. 3.18.3.1.1 IP Address Displays the current IP Address of the controller, this may be manually assigned by the engineer or the IP Address allocated to the controller by the DHCP Server. 3.18.3.1.2 Serial No [...]

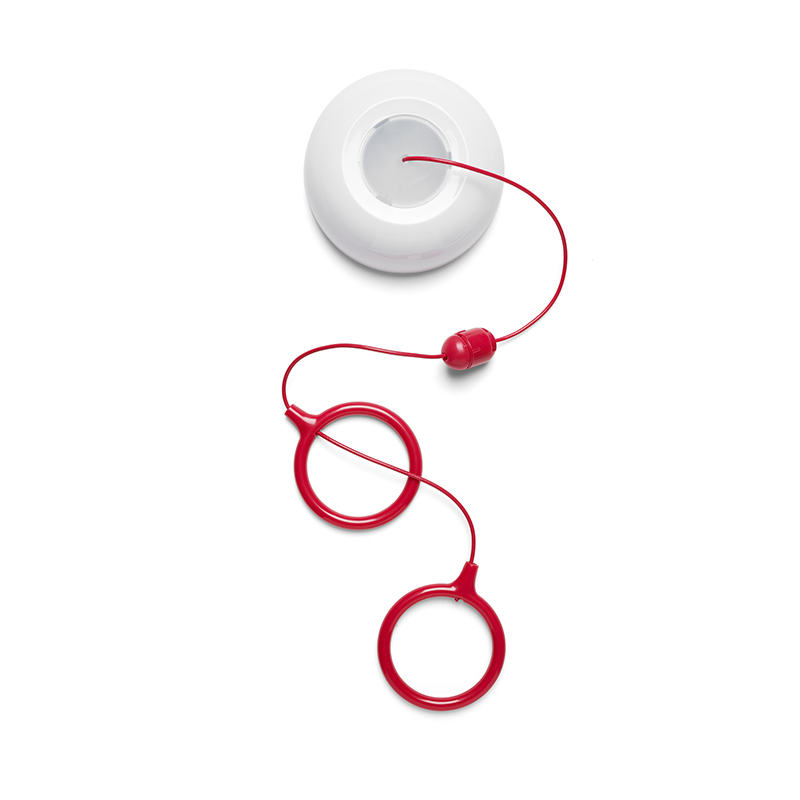

Bathroom Pull Cord The Bathroom Pull Cord is an Intercall Nurse call supplied in a self contained enclosure which is fixed to the ceiling or suitable surface. The unit is designed to operate in the horizontal plane as shown. The unit features antibacterial pull with cord, together with integral Re-assurance LED. The maximum length of the cord and pull is 3000mm. Follow Us on Linkedin Contact Us

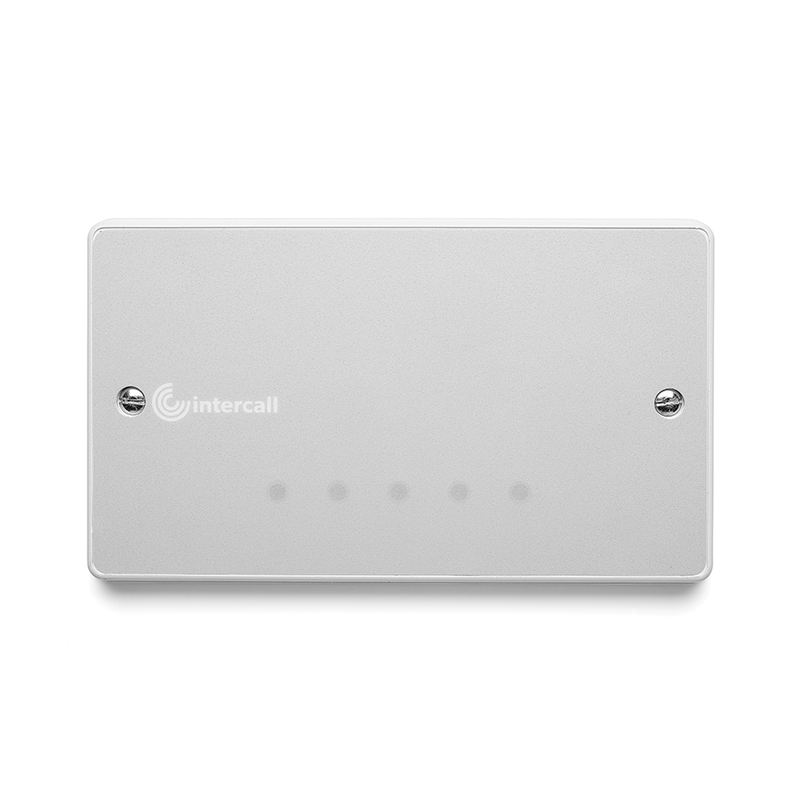

The Isolator is an Intercall Nurse call which used to protect the output from the Controller and limits the current available to the radials and Devices. The Bus cable connects to the Input and provides four current limited outputs for connection the the Radial cables and on to the Devices. There is a through terminal which allows the Bus cable to continue to the next Isolator as required. Input Terminals There are two sets of green terminals which accept the Bus cable from the Controller and allow it to pass through onto the next Isolator as required. The terminals are linked together within the Isolator. Output Terminals There are 4 sets of output terminals to connect the Radial cables to the Devices. The connectors may be unplugged without removing the cables simplifying fault finding. Caution: Observe Polarity when making these connections ! Output Protection Fuses Each output is current limited with an individual fuse. Fuse Rating: 1 Amp Anti- Surge/Slow [...]

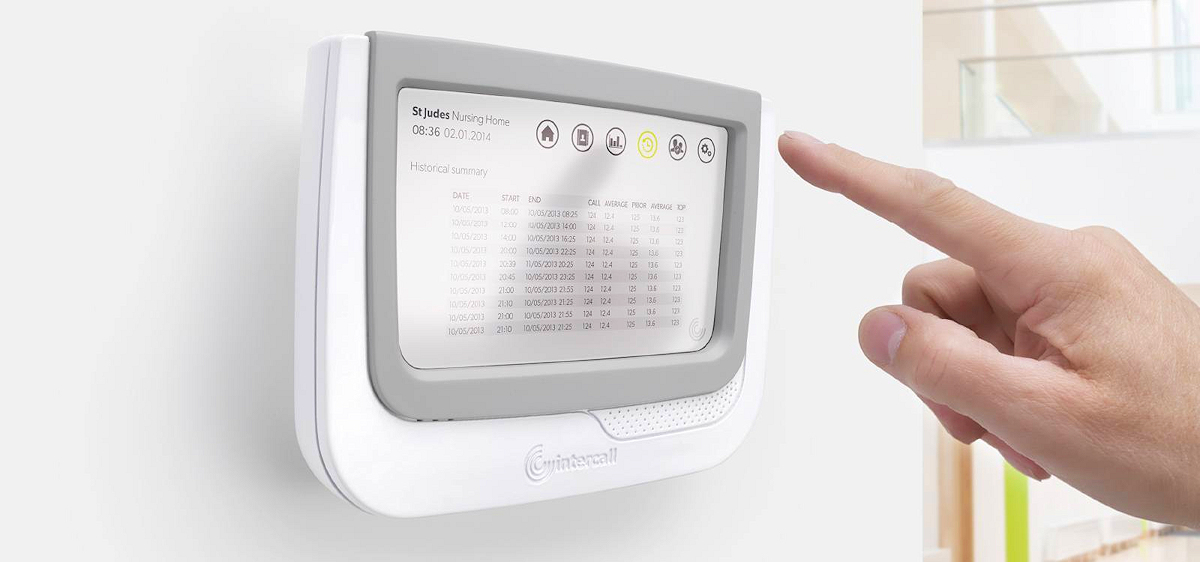

touch series ( Intercall Nurse call ) Intercall supplies industry-leading technology to health care facilities, helping them offer security, comfort and assistance to their residents and patients. Our team are committed to creating solutions that help keep both staff and patients safe and secure. All Intercall products undertake rigorous testing to ensure they meet the standards of modern care environments. Our commitment to innovation through continuous research, development and improvement, has made Intercall the best-selling nurse call system in the UK. The Touch Series The Touch Series is a UK manufactured and designed system, using hospital grade materials that house Intercall technical excellence. Stylish and simple to install, the Touch Series is supported by a sophisticated data-logging system giving access to care and performance information. With industry standard connectivity via TCP/IP and optional Radio Frequency Identification technology (RFID), the Touch Series is a modern nurse call system offering easy communication and management of patient care. Touch Display The Touch Display [...]

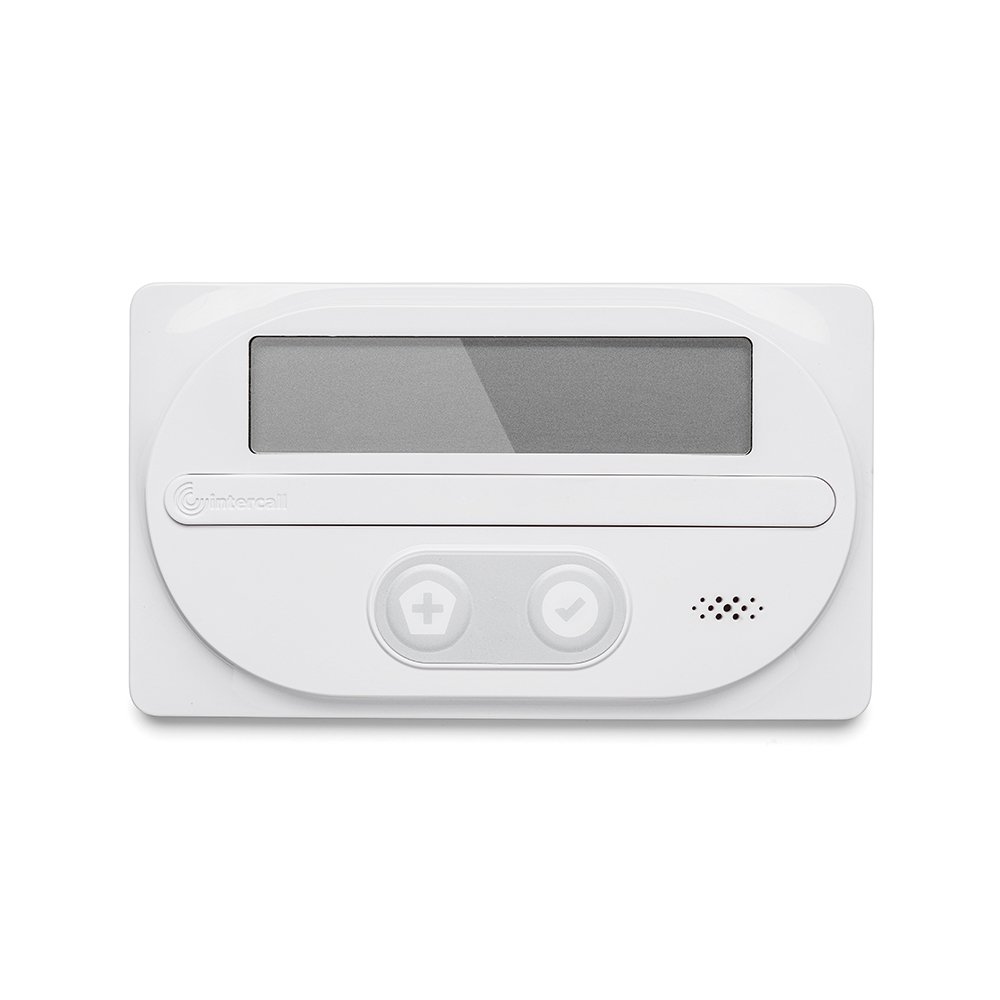

Intercall One Brochure it's an Intercall Nurse call installed on the robust Intercall wired framework, to offer a system upgrade with the minimum of disruption, the interconnected call points supply unrivalled reliability, assisting in the smooth running of the care facility. We are driven by a vocation to develop innovative solutions to support the care sector We call this considered innovation Intercall is a UK manufacturer of nurse call systems, deployed in healthcare facilities in the UK and around the world for over 30 years. We employ continuous research and development in order to improve performance and reduce our carbon footprint, investing in low power technology and the use of antibacterial materials. Silent Alarm Reduced patient alarm fatigue with mobile message integration. Cloud Data Logging Record system events, retrieve and create reports. The Intercall data logging system provides accurate performance data, helping health care managers make informed decisions, while reassuring patients and their families of high care standards. Mobile Solutions [...]
