P8083 range

P8083 range it's a Sound System that having Stereo FM/AM tuner module with backlit display, automaƟc and/or manual tuning, pre-selecƟon of up to 20 staƟons (10 FM plus 10 AM), and SLEEP funcƟon.

Section

Public Address

Category

Sound sources

Range

P8083

Description

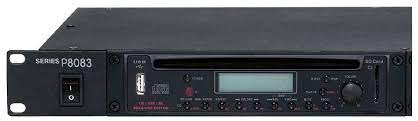

P8083  CD-MP3/USB/SD Card player and FM/AM stereo tuner
A single container that can be mounted in a standard 19" rack and is one modular unit high, comprises a CD-MP3/ USB/SD Card player and an FM/AM stereo tuner.

FuncƟonal features

• Volume control and independent audio outputs on a double RCA socket for both sources of sound.
• Combined audio output from which it is possible to pick up both signals of the modules with priority of the CD
player over the tuner.
• CD player module with back-lit display and shockproof system.
• Normal, repeat, random or programmed play funcƟons.
• Stereo FM/AM tuner module with backlit display, automaƟc and/or manual tuning, pre-selecƟon of up to 20
staƟons (10 FM plus 10 AM), and SLEEP funcƟon.
• FM and AM aerial included.
• Power supply: 230/115Vac - 50/60 Hz | 24 Vdc
• Dimensions (W x H x D): 482 x 44 x 285 mm
The CD player is supplied with a remote control enabling full remote manag

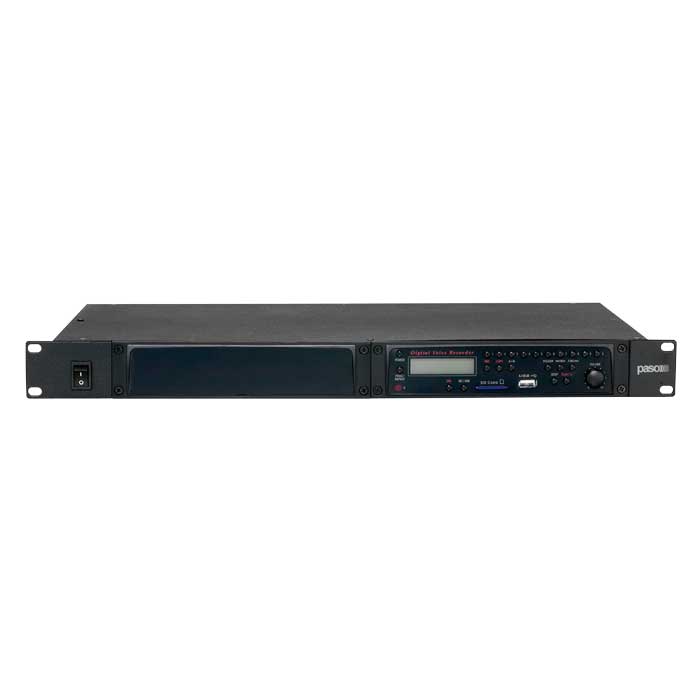

P8083-R • Digital USB/SD Card player/recorder

The P8083-R is a digital recorder and player for audio fi les in MP3 format on external storage devices such as SD
cards or USBs (playing of MP3/WMA audio fi les and recording in MP3 format).

FuncƟonal features

• Front-panel master volume control.
• Rear-panel line input and output on a double RCA socket.
• Management of external storage devices from 128 MB to 16 GB (SD Card/USB).
• Possibility of selecƟng the recording quality (128 Kbps or 192 Kbps).
• Recordable audio tracks up to a maximum of 99.
• Possibility to programme customised sequences for playing out themusic and to select and repeat a single secƟon of a piece of music.
• Files can be deleted and it is possible to copy data from a USB to an SD card or vice versa.
• Large backlit display for showing the various different funcƟons.
• Power supply: 230/115Vac - 50/60 Hz | 24 Vdc
• Dimensions (W x H x D): 482 x 44 x 285 mm
A remote control enabling full remote management is supplied with the equipment.
The P8083-R has provisions for mounƟng in a standard 19” rack and has the height of a single unit.

Other models created by combining various different modules of the P8083 range are available on request. They
all feature a standard container suitable for mounƟng in a standard 19” rack and of the height of one modular unit.
Double RCA sockets are provided for connecƟng the line outputs on the rear panels, using standard stereo cables.
• Power supply: 230/115Vac - 50/60 Hz | 24 Vdc
• Dimensions (W x H x D): 482 x 44 x 285 mm

P8083-ALL

CD-MP3/USB/SD CARD player and FM/AM tuner.
Master volume control. Backlit display. CD player with shockabsorbing system. normal, repeat, random or programmed play
funcƟons. Tuner with automaƟc scanning and pre-selecƟon of
up to 20 staƟons (10 FM and 10 AM staƟons). Remote control
and aerials included in the supply.

P8083-ALL

Model with two CD-MP3/USB/SD CARD player module and FM/AM stereo tuner module.

P8083-T

FM/AM stereo tuner. Master volume control, backlit display,
automaƟc and manual tuning, pre-selecƟon of up to 20 staƟons
(10 FM and 10 AM staƟons) and SLEEP funcƟon. FM and AM
aerial included in the supply.

P8083-T

Two FM/AM stereo tuners.

P8083-P

CD-MP3/USB/SDCARD player with PITCH speed control.
Master volume control and control of speed at which the audio
tracks are played out (PITCH). Backlit display, shock-absorbing
system and normal, repeat, random or programmed play
funcƟons. Remote control included in the supply.
