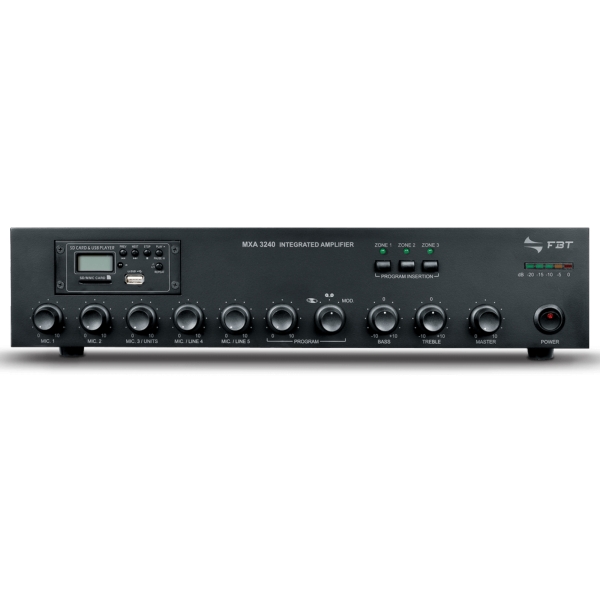

The MXA 3240 Integrated Mixer Amplifier is a sound system integrated mixing amplifier with 120W and an output for selected zones. MXA 3240 Integrated Mixer Amplifier Features
- 2 balanced/unbalanced microphone inputs with phantom power supply
- Microphone input or microphone stations of the MBT 1000 range
- 2 MIC/PH/LINE inputs with specific selector switch
- 2 auxiliary inputs for sound sources (TAPE/CD)
- Telephone/emergency audio input for priority calls with adjustable threshold and sensitivity
- Front-panel adjustment of the level of each microphone and auxiliary input
- Front-panel control of overall volume and of treble and bass tones
- Provisions for inserting via the front panel a USB/SD CARD module ( )
- Constant voltage (50/70/100 V) or 8 impedance loudspeaker line output
- 3 output lines for zones
- Balanced line output for connection to other amplifiers
- Output/input for connection to audio processors
- LED-type Vu meter for clear and immediate reading of power emitted
- Micro-switches for setting operating modes
- Includable/excludable speech filters on all microphone inputs
- Contacts for activating input precedence and override
- "Music On Hold" output with output level control (output of the selected auxiliary signal)
- Alerting signal (chime) with level control
- Front-panel keys for selecting music listening zones
- Selectable mains power supply - 230/115 VAC or 24 VDC
The MDS1000 ( 120W MDS1120 ) compact system range combines a reliable amplifier, an MP3 player, an SD/MMC card reader, a USB socket and a digital FM tuner together in a single convenient unit.
The rear mounted XLR sockets can be separately configured as microphone inputs with an option for phantom power, or as a line inputs. The three position selector switch determines the operation of each socket
Music Distribution System with Amplifier 120W
MP3 player , SD/MMC card drive, USB socket , digital FM tuner
n°3 MIC./LINE inputs with operating mode selector switches
n°1 VOX input (MIC/LINE 1)
n°1 auxiliary input for sound sources (TAPE/CD)
XLR sockets for connection to dynamic microphones and/or MBT 6400S microphone bases
Terminal strip for speakers output (25-50-100V/4ohm)
Terminal strip for external 24 Vdc power supply
Terminal strip for microphone precedence
Possibility to connect an external equalizer and/or booster
Selectable main power (230/120Vac)
Dimensions: 430x88x270mm
Weight: 8,3 kg
