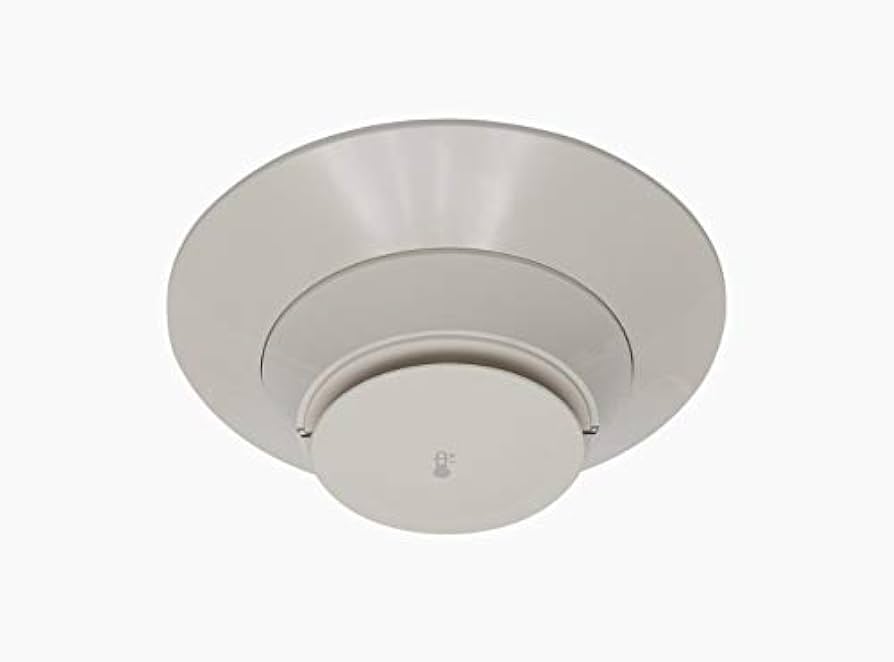

The IDP-Heat, IDP-Heat-HT and IDP-Heat-ROR are plug in thermal detectors, with integral communication, that provide features that surpass conventional detectors. These thermal detectors are for use with Silent Knight IFP-series fire alarm control panels (FACPs).
Detector sensitivity can be programmed from the FACP software. Sensitivity is continuously monitored and reported to the FACP. Point ID capability allows each detector’s address to be set with rotary address switches, providing exact detector locations for selective maintenance when chamber contamination reaches unacceptable levels.
IDP-Heat-ROR is a fixed temperature and rate-of-rise thermal detector that uses a thermistor sensing circuit to produce 135°F (57°C) thermal protection.
| Weight | 1 lbs |
|---|---|
| Dimensions | 5 × 5 × 5 in |
| Color | Ivory |
| Construction | Polymer |
| Device Addressing | Rotary Dials |
| Heat Sensing Element | Fixed Temperature, Rate-of-Rise |
| Thermal Rating | 135°F |
| System Type | Addressable |
