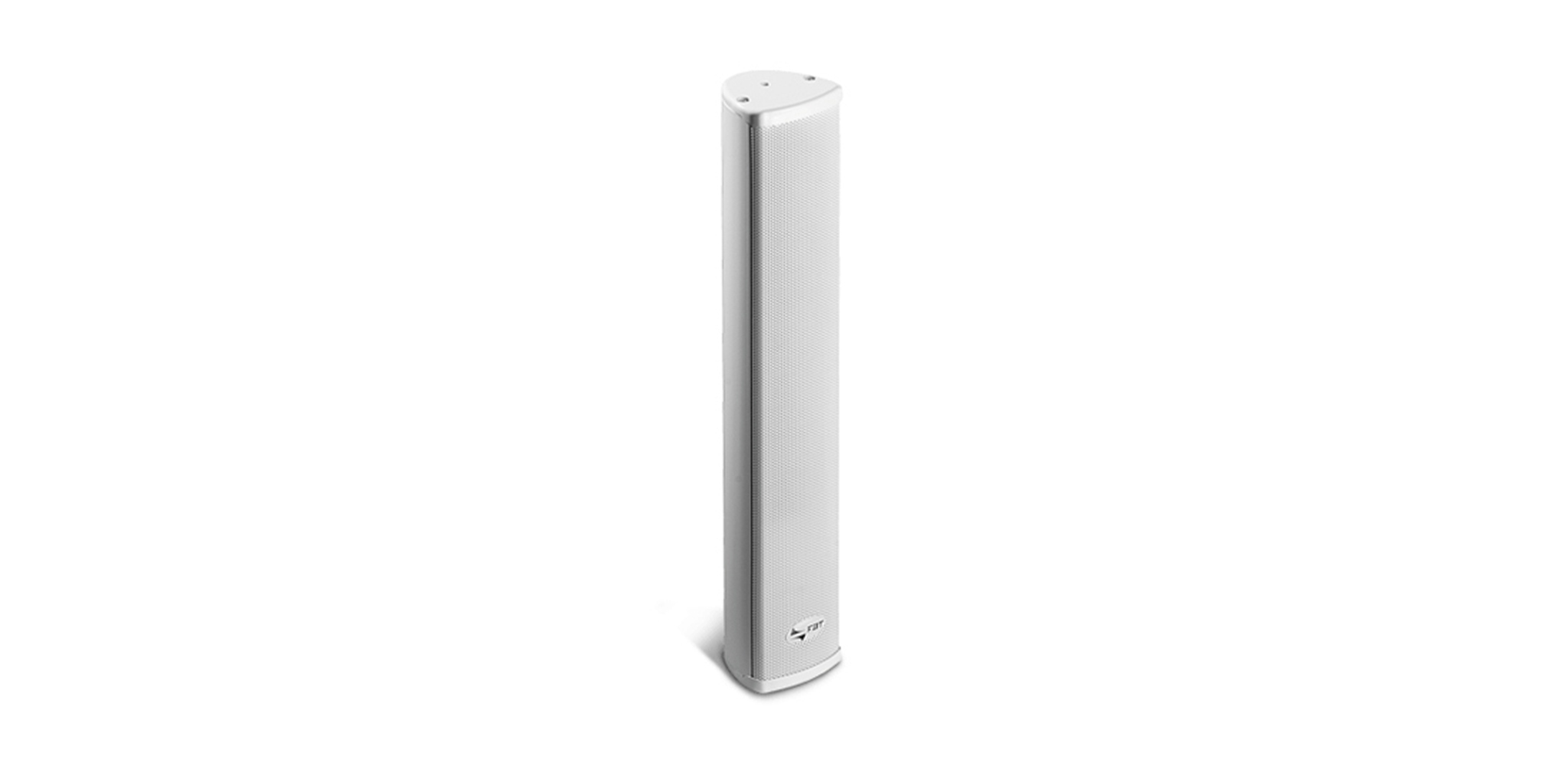

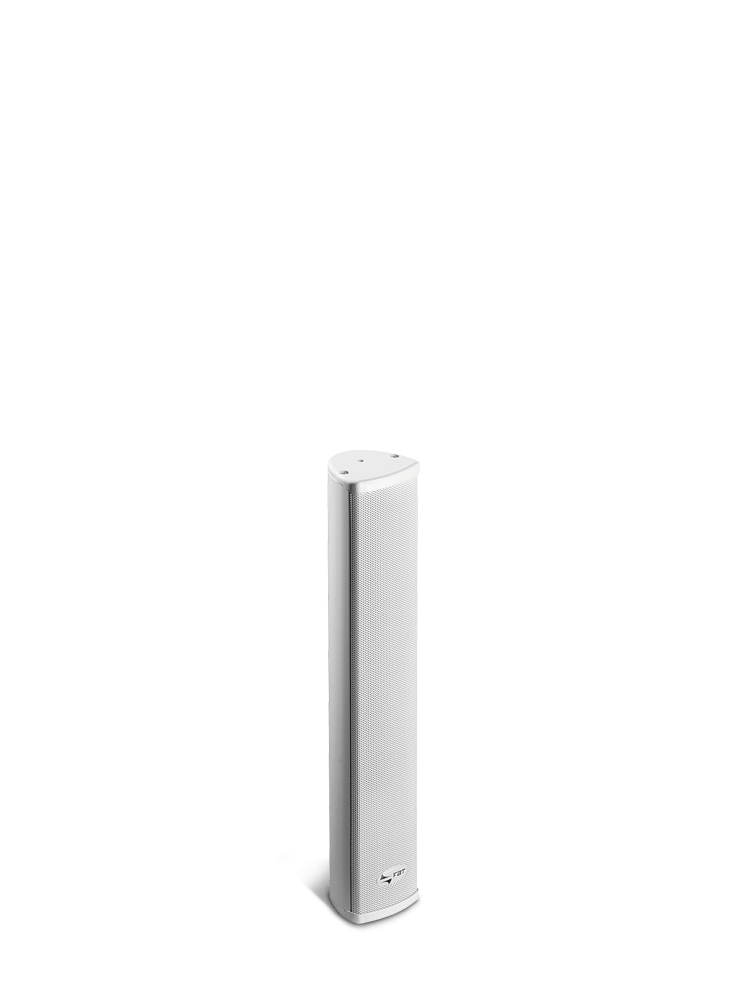

CS3130 TW,CS3150 TW,CS3180 TW

CS3130 TW,CS3150 TW,CS3180 TW it's a Sound System, The tension speaker input voltage must match the output voltage of the amplifier; the sum of the nominal powers of all the speakers connected to the line must not be higher than that of the amplifier.

CONSTANT VOLTAGE SYSTEMS

This connection system requires each speaker to be equipped with its own line transformer. The amplifier must be equipped with 100V or 70V constant voltage outputs. The speakers, connected in parallel to the amplifier output, will make simple, if necessary, an expansion of the system deriving from any of the previously installed speakers; in the same way yes they will be able to eliminate speakers that are no longer needed.

It is in the links It is necessary to respect the "phase" of both the individual speaker and its own transformer and in the parallel connection of the speakers. The tension speaker input voltage must match the output voltage of the amplifier; the sum of the nominal powers of all the speakers connected to the line must not be higher than that of the amplifier.
