XRN-2011A 32CH 12M H.265 NVR, It’s a CCTV system having Multi Screen Display [Local Monitor] 1 / 2V / 3V / 4 / 9 / 16 / 25 / 36 / Sequence
Display
Network camera
Inputs Max. 32CH
Resolution 12MP ~ CIF
Protocols Wisenet, ONVIF
Decoding
Local Display [Dual Display]
HDMI: 3840 x 2160, 1920×1080, 1280×720
VGA: 1920×1080, 1280×720
Multi Screen Display [Local Monitor] 1 / 2V / 3V / 4 / 9 / 16 / 25 / 36 / Sequence
[Web] 1 / 4 / 9 / 16 / Sequence
Resolution 12M (30fps), 8.3M (120fps), 1080p (480fps), 720P (960fps), D1 (960fps)
Performance
Operating System
Embedded Linux
Record
Compression H.265, H.264, MJPEG
Recording Bandwidth Max. 256Mbps
Max. 100Mbps(RAID-5)
Resolution 12MP ~ CIF
Mode Normal, Schedule(Continuous/Event), Event (Pre/Post)
Event Trigger Alarm Input, Video Loss, Camera Event(Alarm, MD, Video Analytics, Defocus)
Event Action e-Mail, PTZ Preset, Alarm Out, Buzzer, Monitor Out
Search & Play
Playback Bandwidth Max. 32Mbps(16CH simultaneously)
User Max. 4 Users (Local 1, Remote 3)
Simultaneous playback Max. 16CH(Local Monitor, Network)
Fisheye Dewarping WEB / CMS
Mode Date & Time(Calendar), Event Log list, Text Search, Smart Search
Resolution 12MP ~ CIF
Playback Control Fast/Slow Forward / Backward, Move one step Up / Down
Storage
Supported HDD Up to 6TB
HDD Slot SATA 8ea(Max. 48TB)
External iSCSI storage(Max. 384TB)
RAID RAID-5
Backup
File backup BU/Exe(GUI), JPG/AVI(Network)
Function Multi channel(Upto 8CH) Play, Date-Time/Title display
Network
Protocol IPv4, IPv6, TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTSP, NTP, HTTP, DHCP (Server, Client), PPPoE, SMTP, ICMP, IGMP, ARP, DNS, DDNS, uPnP, HTTPS, SNMP, ONVIF (Profile-S), SUNAPI(Server, Client)
DDNS Wisenet DDNS
Transmission Bandwidth Max. 512Mbps (iSCSI off)
Max. 256Mbps (iSCSI on)
Audio
Input/Output 32 CH(network)
Compression G.711, G.726, AAC(16/48KHz)
Audio Communication 2-Way
Max Remote Users Search(3), Live Unicast(10), Multicast(20)
Security IP address filtering, User access Log, 802.1x, Encryption
Web viewer
Supported OS Windows 7, 8, 10, Mac OS X 10.9. 10.10. 10.11
Supported browser MS IE, Google Chrome, Mac Safari, Firefox
Viewer Software SSM, Webviewer, Smart Viewer, Wisenet mobile
Support SDK/CGI(SUNAPI) for integration to 3’rd party VMS
Functions
Camera Setup
Register Auto, Manual
Item IP address, Add profile edit, Bitrate, Compression, GOP, Quality, Camera MD setup
Camera video setup (Simple focus, Brightness/Contrast, Flip/Mirror, IRIS, WDR, D&N, SSNR, Shutter, SSDR, DIS), Fisheye Dewarping Mode, Hallway View Setup, Camera Webpage
PTZ
Control Via GUI, Webviewer, SPC-2000
Preset 255 Presets
Smart phone
Support Model iOS, Android
Protocol Support RTP, RTSP, HTTP, CGI(SUNAPI)
Control Live(Multi-Profile Support), Playback
Max. Remote Users Search(3), Live Unicast(10)
Redundancy
Failover N+1
ARB Support
Easy configuration P2P(QR code)
Interface
HDMI 1EA
VGA 1EA
e-SATA 1EA
Audio Out(1EA, RCA, Line)
Ethernet RJ-45(10/100/1000BASE-T) x 2
Alarm In 8EA, Out 4EA
USB 2EA(Front 1, Rear 1)
Serial(Protocols) RS-232C
Power inlet AC 1EA
System
Log
Log List Max. 20,000 (System Log, Event Log each)
System Control Mouse, IR remocon, Web, Controller (SPC-2000)
Language English, French, German, Italian, Spanish, Russian, Turkish, Polish, Dutch, Swedish, Czech, Portuguese, Danish, Rumanian, Serbian, Croatian, Hungarian, Greek, Norwegian, Finnish, Korean, Chinese, Japanese, Thai
Environmental
Operating Temperature 0°C to +40°C(32℉ to 104℉)
Operating Humidity 20% ~ 85% RH
Electrical
Power Input 100~240VAC±10%
Power Consumption Max. 99W(6TB 8EA)
Mechanical
Color / Material Black / Metal
Dimension (WxHxD) 440.0 x 88.0 x 384.8mm (17.32″ x 3.46″ x 15.15″) (2U)
Weight 5.88kg
• The lastest product information / specification can be found at hanwha-security.com
• Design and specifications are subject to change without notice.
• Wisenet is the proprietary brand of Hanwha Techwin, formerly known as Samsung Techwin.

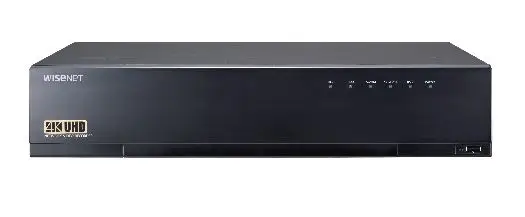

32CH 12M H.265 NVR
• Up to 32CH, Max. 12MP Camera supported
• 256Mbps network camera recording
• 4K video out on HDMI monitor support
• Dual monitor video out support
• H.265, H.264, MJPEG compression support
• WiseStream support
• Max. 8 internal HDDs (48TB), e-SATAT / iSCSI storage support
• Easy installation with front swap hard disks
• ARB, Failover (N+1), RAID 5 support
• P2P service (QR code connect) support
