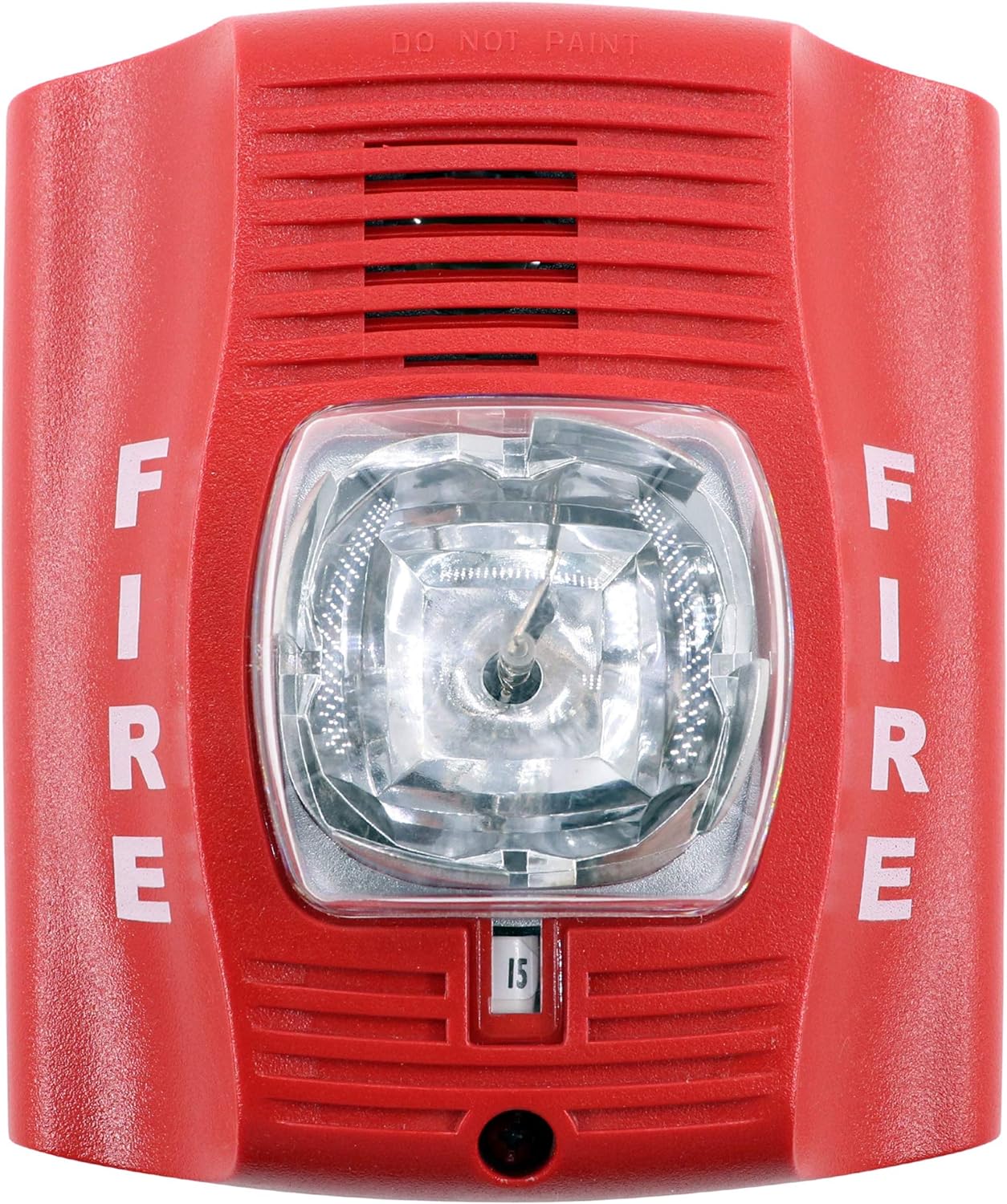

Horn Strobes P2RK

Horn Strobes P2RK is a Fire Alarm System having Maximum Humidity 10 to 93% non-condensing and Operating Temperature 32°F to 120°F (-0°C to 49°C)

Candela

Selectable strobe settings of 15, 30, 75, 95, 110, 135, and 185 cd

Color

Red

DC Max Op Current

see Data Sheet for complete current draw information

FWR Max Op Current

see Data Sheet for complete current draw information

Location

Indoor

Maximum Humidity

10 to 93% non-condensing

Mounting

Wall

Operating Temperature

32°F to 120°F (-0°C to 49°C)

Operating Voltage Range

8 to 17.5 V (12V nominal) or 16 to 33 V (24 nominal)

Series

L-Series

Voltage

Regulated 12DC/FWR or regulated 24DC/FWR

Wall Mount Dimensions

5.6"L x 4.7"W x 1.25"D (142 mm L x 119 mm W x 64 mm D)
Wiring Gauge

12 to 18 AWG
