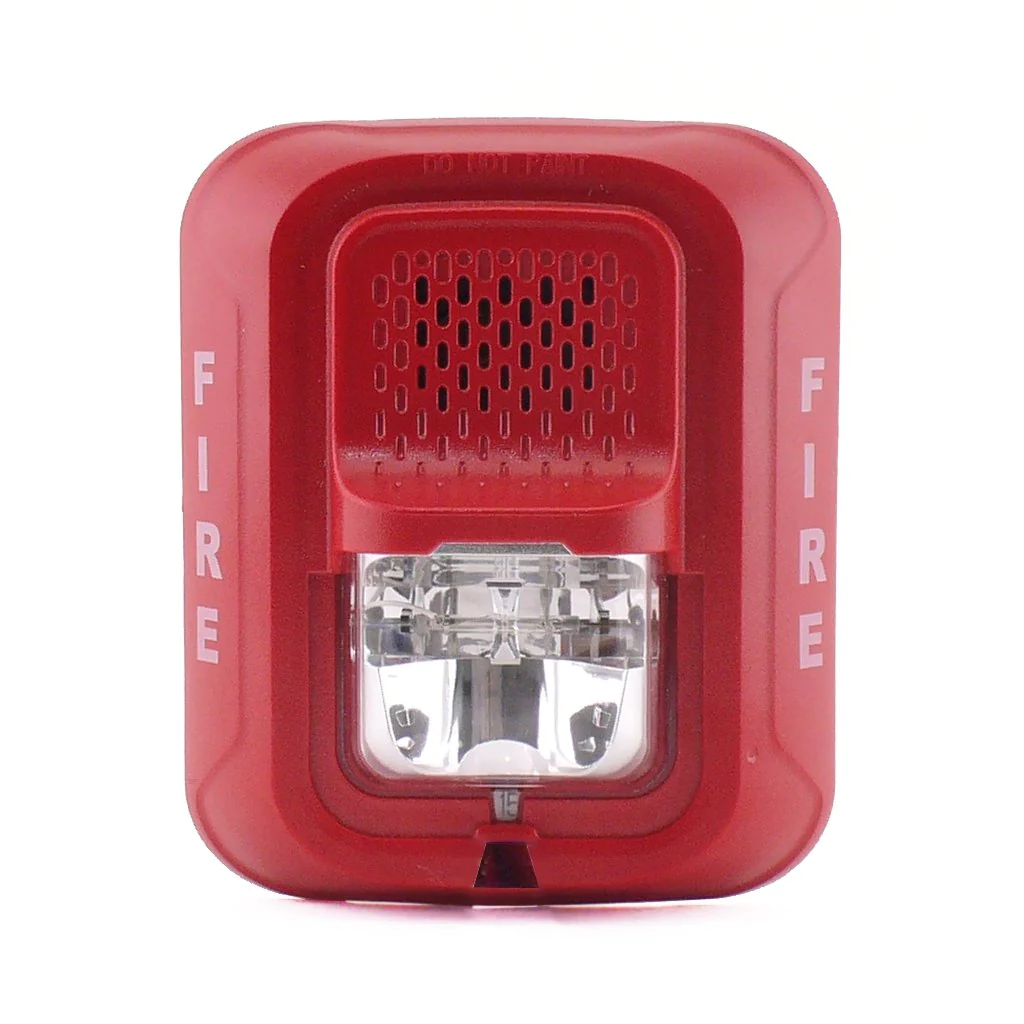

Horn Strobes P2RL is a Fire Alarm System having Operating Temperature 32°F to 120°F (-0°C to 49°C)​ and Operating Voltage Range 8 to 17.5 V (12V nominal) or 16 to 33 V (24 nominal)​



Candela

​Selectable strobe settings of 15, 30, 75, 95, 110, 135, and 185 cd​

Color

​Red​​

DC Max Op Current

​see Data Sheet for complete current draw information

FWR Max Op Current

​see Data Sheet for complete current draw information​

Location

​Indoor​​

Horn Strobes P2RL Fire Alarm System Operating Temperature

Maximum Humidity

​10 to 93% non-condensing​

Mounting

​Wall​​

Operating Temperature

​32°F to 120°F (-0°C to 49°C)​

Operating Voltage Range

​8 to 17.5 V (12V nominal) or 16 to 33 V (24 nominal)​

Series

L-Series​

Voltage

​Regulated 12DC/FWR or regulated 24DC/FWR​

Wall Mount Dimensions

5.6″L x 4.7″W x 1.25″D (142 mm L x 119 mm W x 64 mm D)​
Wiring Gauge

​12 to 18 AWG​
