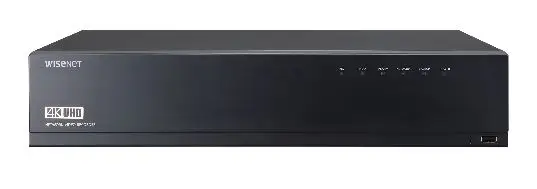

XRN-1610SA 16CH 12M H.265 NVR with PoE Switch, It’s a CCTV system having Resolution 12MP(30fps), 8MP(120fps), 5MP(180fps), 3MP(240fps), 2MP(480fps), 720p(480fps), D1(480fps)
Display
Network camera
Inputs Max. 16CH
Resolution 12MP ~ CIF
Protocols Wisenet, ONVIF
Decoding
Local Display [Dual Display]
HDMI: 3840 x 2160, 1920×1080, 1280×720
VGA: 1920×1080, 1280×720
Resolution 12MP(30fps), 8MP(120fps), 5MP(180fps), 3MP(240fps), 2MP(480fps), 720p(480fps), D1(480fps)
Performance
Record
Compression H.265, H.264, MJPEG
Recording Bandwidth Max. 180Mbps
Resolution 12MP ~ CIF
Mode Normal, Schedule(Continuous/Event), Event (Pre/Post)
Event Trigger Alarm Input, Video Loss, Camera Event(Alarm, MD, Video Analytics, Defocus)
Event Action e-Mail, PTZ Preset, Alarm Out, Buzzer, Monitor Out
Search & Play
Playback Bandwidth Max. 32Mbps(16CH simultaneously)
User Max. 4 Users (Local 1, Remote 3)
Simultaneous playback Max. 16CH(Local Monitor, Network)
Fisheye Dewarping WEB / CMS
Storage
Supported HDD Up to 6TB
HDD Slot SATA 4ea(Max. 24TB)
External iSCSI storage(Max. 384TB)
Backup
File backup BU/Exe(GUI), JPG/AVI(Network)
Function Multi channel(Upto 16CH) Play, Date-Time/Title display
Network
Protocol IPv4, IPv6, TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTSP, NTP, HTTP, DHCP (Server, Client), PPPoE, SMTP, ICMP, IGMP, ARP, DNS, DDNS, uPnP, HTTPS, SNMP, ONVIF (Profile-S), SUNAPI(Server, Client)
DDNS Wisenet DDNS
Transmission Bandwidth Max. 256Mbps (iSCSI off)
Max. 128Mbps (iSCSI on)
Audio
Input/Output 16 CH(network)
Compression G.711, G.726, AAC(16/48KHz)
Audio Communication 2-Way
Max Remote Users Search(3), Live Unicast(10), Multicast(20)
Security IP address filtering, User access Log, 802.1x, Encryption
Web viewer
Supported OS Window XP (Service pack 2 or above), Vista, 7, 8, 10, Mac OS X (10.7 or above)
Supported browser Plug-in free Webviewer
– Supported Browser : Google Chrome 47, MS Edge 20
– WMF : 1CH live (800 x 600), Setup
Plug-in Webviewer
– Supported Browser : MS Explore 11, Mozilla Firefox 43 , Apple Safari 9 * Mac OS X only
Viewer Software SSM, Webviewer, Smart Viewer, Wisenet mobile
Support SDK/CGI(SUNAPI) for integration to 3’rd party VMS
Functions
Camera Setup
Item IP address, Add profile edit, Bitrate, Compression, GOP, Quality, Camera MD setup
Camera video setup (Simple focus, Brightness/Contrast, Flip/Mirror, IRIS, WDR, D&N, SSNR, Shutter, SSDR, DIS), Fisheye Dewarping Mode, Hallway View Setup, Camera Webpage
PTZ
Control Via GUI, Webviewer, SPC-2000
Smart phone
Support Model iOS, Android
Protocol Support RTP, RTSP, HTTP, CGI(SUNAPI)
Control Live(Multi-Profile Support), Playback
Max. Remote Users Search(3), Live Unicast(10)
Redundancy
ARB Support
Easy configuration P2P(QR code)
Interface
HDMI 1EA
VGA 1EA
e-SATA 1EA
Audio Out(1EA, RCA, Line)
Ethernet RJ-45(10/100/1000BASE-T) x 2
RJ-45(PoE+) x 16
Alarm In 8EA, Out 4EA
USB 2EA(Front 1, Rear 1)
Power inlet AC 1EA
System
System Control Mouse, IR remocon, Web, Controller (SPC-2000)
Language English, French, German, Italian, Spanish, Russian, Turkish, Polish, Dutch, Swedish, Czech, Portuguese, Danish, Rumanian, Serbian, Croatian, Hungarian, Greek, Norwegian, Finnish, Korean, Chinese, Japanese, Thai
Environmental
Operating Temperature 0°C to +40°C(32℉ to 104℉)
Operating Humidity 20% ~ 85% RH
Electrical
Power Input 100~240VAC±10%
Power Consumption Max. 271.9W (4 HDDs, PoE/PoE+ On)
Max. 51.9W (4 HDDs, PoE/PoE+ Off)
PoE Budget Max. 220W
Mechanical
Color / Material Black / Metal
Dimension (WxHxD) 440.0 x 88.0 x 384.8mm (17.32″ x 3.46″ x 15.15″) (2U)
Weight 5.1Kg (11.24lb)
• The lastest product information / specification can be found at hanwha-security.com
• Design and specifications are subject to change without notice.
• Wisenet is the proprietary brand of Hanwha Techwin, formerly known as Samsung Techwin.
16CH 12M H.265 NVR with PoE Switch
• Up to 16CH 12megapixel supported
• H.265, H.264, MJPEG codec supported
• WiseStream support
• 180Mbps network camera recording
• Plug & play by 16 PoE/PoE+ ports
• Max. 4HDDs, e-SATA storage supported
• HDMI / VGA local monitor
• P2P service (QR code connect) support
