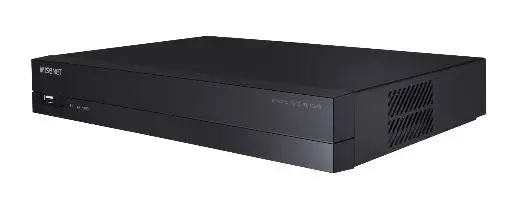

QRN-820S 8CH 8MP NVR with PoE switch, It’s a CCTV system having Resolution 8MP(60fps), 5MP(90fps), 3MP(120fps), 2MP(240fps), 720p(240fps), D1(240fps)
Display
Network camera
Inputs Max. 8CH
Resolution 8MP ~ CIF
Protocols Wisenet, ONVIF
Decoding
Local Display HDMI: 3840 x 2160, 1920×1080, 1280×720
Resolution 8MP(60fps), 5MP(90fps), 3MP(120fps), 2MP(240fps), 720p(240fps), D1(240fps)
Performance
Record
Compression H.265, H.264, MJPEG
Recording Bandwidth Max. 80Mbps
Resolution 8MP ~ CIF
Mode Normal, Schedule(Continuous/Event), Event (Pre/Post), Dual track Recording
Event Trigger Alarm Input, Video Loss, Camera Event(Alarm, MD, Video Analytics, Defocus)
Event Action e-Mail, PTZ Preset, Buzzer, Monitor Out
Search & Play
Playback Bandwidth Max. 32Mbps(8CH simultaneously)
User Max. 4 Users (Local 1, Remote 3)
Simultaneous playback Max. 8CH(Local Monitor, Network)
Fisheye Dewarping WEB / CMS / Mobile
Storage
Supported HDD Up to 6TB
HDD Slot SATA 1ea(Max. 6TB)
Backup
File backup BU/Exe(GUI), JPG/AVI(Network)
Function Multi channel(Upto 8CH) Play, Date-Time/Title display
Network
Protocol IPv4, IPv6, TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTSP, NTP, HTTP, DHCP (Server, Client), PPPoE, SMTP, ICMP, IGMP, ARP, DNS, DDNS, uPnP, HTTPS, SNMP, ONVIF (Profile-S), SUNAPI(Server, Client)
DDNS Wisenet DDNS
Audio
Input/Output 8CH(network)
Compression G.711, G.726, AAC(16/48KHz)
Audio Communication 2-Way
Max Remote Users Search(3), Live Unicast(10), Multicast(20)
Security HTTPS(SSL) Login Authentication
Digest Login Authentication
IP Address Filtering
User access log
802.1X Authentication(EAP-TLS, EAP-LEAP)
Device Certificate(Hanwha Techwin Root CA)
Viewer Software SSM, Webviewer, Smart Viewer, Wisenet mobile
Support SDK/CGI(SUNAPI) for integration to 3’rd party VMS
Functions
Camera Setup
Item IP address, Add profile edit, Bitrate, Compression, GOP, Quality, Camera MD setup, Wisestream, Dynamic GOV/FPS, VA Setup
Camera video setup (Simple focus, Brightness/Contrast, Flip/Mirror, IRIS, WDR, D&N, SSNR, Shutter, SSDR, DIS), Fisheye Dewarping Mode, Hallway View Setup, Camera Webpage
PTZ
Control Via GUI, Webviewer
Smart phone
Support Model iOS, Android
Protocol Support RTP, RTSP, HTTP, HTTPS, CGI(SUNAPI)
Control Live(Multi-Profile Support), Playback
Max. Remote Users Search(3), Live Unicast(10)
Redundancy
ARB Support
Easy configuration P2P(QR code)
Interface
HDMI 1EA
Ethernet RJ-45(10/100/1000BASE-T) x 1
RJ-45(PoE+) x 8
USB 2EA(Front 1, Rear 1)
System
System Control Mouse, IR remocon, Web
Language English, French, German, Italian, Spanish, Russian, Turkish, Polish, Dutch, Swedish, Czech, Portuguese, Danish, Rumanian, Serbian, Croatian, Hungarian, Greek, Norwegian, Finnish, Korean, Chinese, Japanese, Thai, Vietnamese
Environmental
Operating Temperature 0°C to +40°C(32℉ to 104℉)
Operating Humidity 20% ~ 85% RH
Electrical
Power Input 54VDC / 1.67A
Power Consumption Max. 76.2W(1HDD, PoE on)
Max. 8.1W(1HDD, PoE off)
PoE Budget Max. 65W
Mechanical
Color / Material Black / Metal
Dimension (WxHxD) W300.0 x H47.1 x D208.4 mm (11.8″ x 1.85″ x 8.2″) (1U)
Weight 1.01Kg (2.23lb)
• The lastest product information / specification can be found at hanwha-security.com
• Design and specifications are subject to change without notice.
• Wisenet is the proprietary brand of Hanwha Techwin, formerly known as Samsung Techwin.
8CH 8MP NVR with PoE switch
• Up to 8CH 8MP resolution
• H.265, H.264, MJPEG codec
• WiseStream support
• 80Mbps network camera recording
• Plug & play by 8 PoE port
• Max. 1 HDD(Up to 6TB)
• HDMI output
• P2P service(QR code)
