LRN-410S 4CH 5MP NVR with PoE Switch is a CCTV system having Resolution 5MP(30fps), 3MP(60fps), 2MP(120fps),720p(240fps), D1(240fps)
Product Spec
Display
Network camera
Inputs Max. 4CH
Resolution 5MP ~ CIF
Protocols Wisenet, ONVIF
Decoding
Local Display HDMI: 1920×1080, 1280×720
Resolution 5MP(30fps), 3MP(60fps), 2MP(120fps),720p(240fps), D1(240fps)
Performance
Record
Compression H.265, H.264, MJPEG
Recording Bandwidth Max. 30Mbps
Resolution 5MP ~ CIF
Mode Normal, Schedule(Continuous/Event), Event (Pre/Post), Dual track Recording
Event Trigger Alarm Input, Video Loss, Camera Event(Alarm, MD, Video Analytics, Defocus)
Event Action e-Mail, PTZ Preset, Buzzer, Monitor Out
Search & Play
Playback Bandwidth Max. 32Mbps(4CH simultaneously)
User Max. 4 Users (Local 1, Remote 3)
Simultaneous playback Max. 4CH(Local Monitor, Network)
Fisheye Dewarping WEB / CMS / Mobile
Storage
Supported HDD Up to 6TB
HDD Slot SATA 1ea(Max. 6TB)
Backup
File backup BU/Exe(GUI), JPG/AVI(Network)
Function Multi channel(Upto 4CH) Play, Date-Time/Title display
Network
Protocol IPv4, IPv6, TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTSP, NTP, HTTP, DHCP (Server, Client), PPPoE, SMTP, ICMP, IGMP, ARP, DNS, DDNS, uPnP, HTTPS, SNMP, ONVIF (Profile-S), SUNAPI(Server, Client)
DDNS
Wisenet DDNS
Transmission Bandwidth
Max. 20Mbps
Audio
Input/Output 4CH(network)
Compression G.711, G.726, AAC(16/48KHz)
Audio Communication 2-Way
Max Remote Users
Search(3), Live Unicast(10), Multicast(20)
Security
HTTPS(SSL) Login Authentication
Digest Login Authentication
IP Address Filtering
User access log
802.1X Authentication(EAP-TLS, EAP-LEAP)
Device Certificate(Hanwha Techwin Root CA)
Viewer Software
SSM, Webviewer, Smart Viewer, Wisenet mobile
Support SDK/CGI(SUNAPI) for integration to 3’rd party VMS
Functions
Camera Setup
Item IP address, Add profile edit, Bitrate, Compression, GOP, Quality, Camera MD setup, Wisestream, Dynamic GOV/FPS, VA Setup
Camera video setup (Simple focus, Brightness/Contrast, Flip/Mirror, IRIS, WDR, D&N, SSNR, Shutter, SSDR, DIS), Fisheye Dewarping Mode, Hallway View Setup, Camera Webpage
PTZ
Control Via GUI, Webviewer
Smart phone
Support Model iOS, Android
Protocol Support RTP, RTSP, HTTP, HTTPS, CGI(SUNAPI)
Control Live(Multi-Profile Support), Playback
Max. Remote Users Search(3), Live Unicast(10)
Redundancy
ARB Support
Easy configuration
P2P(QR code)
Interface
HDMI 1EA
Ethernet RJ-45(10/100BASE-T) x 1
RJ-45(PoE+) x 4
USB
2EA(Front 1, Rear 1)
System
System Control
Mouse, IR remocon, Web
Language
English, French, German, Italian, Spanish, Russian, Turkish, Polish, Dutch, Swedish, Czech, Portuguese, Danish, Rumanian, Serbian, Croatian, Hungarian, Greek, Norwegian, Finnish, Korean, Chinese, Japanese, Thai, Vietnamese
Environmental
Operating Temperature
0°C to +40°C(32℉ to 104℉)
Operating Humidity
20% ~ 85% RH
Electrical
Power Input
54VDC / 1.20A
Power Consumption Max. 47W(1HDD, PoE on)
Max. 7.4W(1HDD, PoE off)
PoE Budget Max. 35W
Mechanical
Color / Material Black / Metal
Dimension (WxHxD) W300.0 x H47.1 x D208.4 mm (11.8″ x 1.85″ x 8.2″) (1U)
Weight 0.99Kg (2.18lb)
• The lastest product information / specification can be found at hanwha-security.com
• Design and specifications are subject to change without notice.
• Wisenet is the proprietary brand of Hanwha Techwin, formerly known as Samsung Techwin.

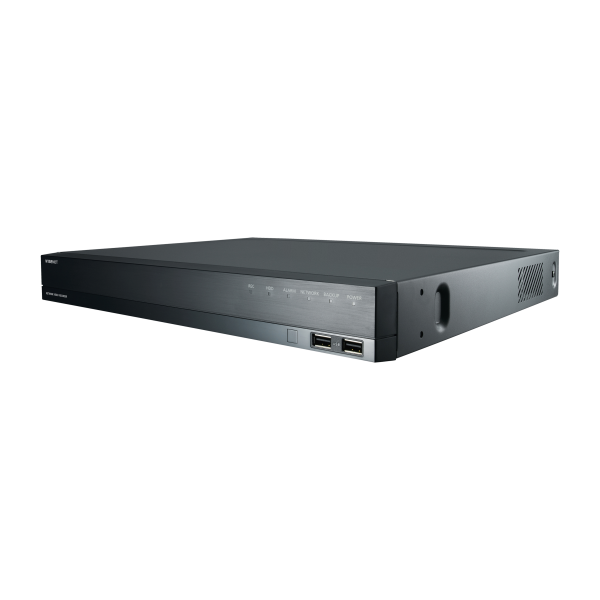

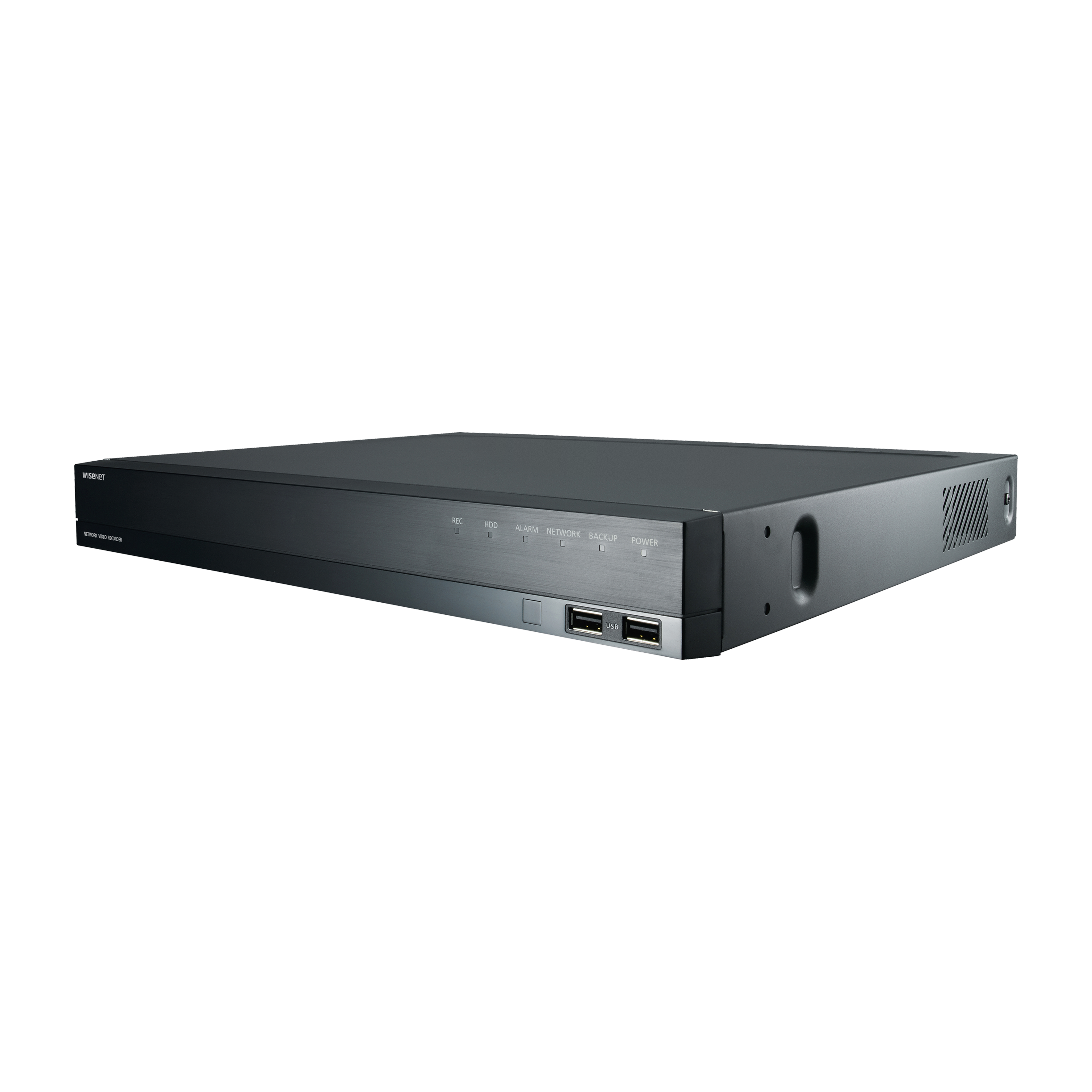

4CH 5MP NVR with PoE Switch
• Up to 4CH 5MP
• H.265, H.264, MJPEG codec
• 30Mbps network camera recording
• Plug & play by 4 PoE ports
• Up to 1 SATA (Max. 6TB)
• HDMI local monitor
• P2P service (QR code connect)
