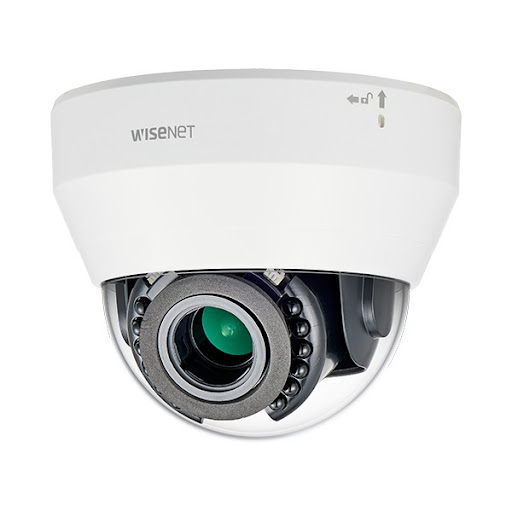

LND-6070R 2M H.264 NW IR Dome Camera, It’s a CCTV system having Resolution 1920×1080, 1280×1024, 1280×960, 1280×720, 1024×768, 800×600, 800×448, 720×576, 640×480, 640×360, 320×240
Video
Imaging Device 1/2.9″ 2MP CMOS
Resolution 1920×1080, 1280×1024, 1280×960, 1280×720, 1024×768, 800×600, 800×448, 720×576, 640×480, 640×360, 320×240
Max. Framerate H.264: Max. 30fps/25fps(60Hz/50Hz)
MJPEG : Max. 1fps at 1920×1080, 1280×1024, 1280×720, 1024×768,
Max. 15fps at other resolution
Min. Illumination Color: 0.095Lux(F1.6, 1/30sec)
BW : 0Lux (IR LED on)
Lens
Focal Length (Zoom Ratio) 3.2~10mm(3.1x) manual varifocal
Max. Aperture Ratio F1.6(Wide)~F2.9(Tele)
Angular Field of View H: 101.6°(Wide)~31.3°(Tele) / V: 54.1°(Wide)~17.8°(Tele) / D: 120.6°(Wide)~36.0°(Tele)
Min. Object Distance 0.5m(1.64ft)
Focus Control Manual
Lens Type DC auto iris
Pan / Tilt / Rotate
Pan / Tilt / Rotate Range 0°~350° / 0°~67° / 0°~355°
Operational
Camera Title Displayed up to 15 characters
Day & Night Auto(ICR)
Backlight Compensation BLC, WDR, SSDR
Wide Dynamic Range 120dB
Digital Noise Reduction SSNR
Motion Detection 4ea, 8 point polygonal zones
Privacy Masking 6ea, rectangular zones
Gain Control Support
White Balance ATW / AWC / Manual / Indoor / Outdoor
LDC Low / Middle / High
Electronic Shutter Speed Minimum / Maximum / Anti flicker
Video Rotation Flip, Mirror, Hallway view(90°/270°)
Analytics Motion detection, Tampering
Alarm Triggers Analytics
Alarm Events File upload via FTP and e-mail
Notification via e-mail
SD/SDHC recording at event triggers
IR Viewable Length 20m(65.62ft)
Network
Ethernet RJ-45(10/100BASE-T)
Video Compression H.264: Main/Baseline/High, MJPEG
Smart Codec WiseStreamⅡ
Bitrate Control H.264: CBR or VBR
MJPEG: VBR
Streaming Unicast(6 users) / Multicast
Multiple streaming (Up to 3 profiles)
Protocol IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour
Security HTTPS(SSL) Login Authentication
Digest Login Authentication
IP Address Filtering
User access log
802.1X Authentication(EAP-TLS, EAP-LEAP)
Application Programming Interface ONVIF Profile S/G
SUNAPI(HTTP API)
General
Webpage Language English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek, Finnish, Norwegian
Web Viewer Supported OS: Windows 7, 8.1, 10, Mac OS X 10.10, 10.11, 10.12
Recommended Browser: Google Chrome
Supported Browser: MS Explore11, MS Edge, Mozilla Firefox(Window 64bit only), Apple Safari(Mac OS X only)
Edge Storage Micro SD/SDHC 1slot 32GB
Memory 256MB RAM, 256MB Flash
Environmental & Electrical
Operating Temperature / Humidity -10°C ~ +55°C(-14°F ~ +131°F) / Less than 90% RH
Storage Temperature / Humidity -30°C ~ +60°C(-22°F ~ +131°F) / Less than 90% RH
Input Voltage PoE(IEEE802.3af, Class3)
Power Consumption Max 6.50W
Mechanical
Color / Material White / Plastic
RAL Code RAL9003
Product Dimensions / Weight Ø119.8×98.8mm(Ø4.72×3.89″), 274g(0.60 lb)
• The lastest product information / specification can be found at hanwha-security.com
• Design and specifications are subject to change without notice.
• Wisenet is the proprietary brand of Hanwha Techwin, formerly known as Samsung Techwin.
2M H.264 NW IR Dome Camera
• Max. 2megapixel (1920 x 1080) resolution
• 3.2 ~ 10mm varifocal lens
• Max. 30fps@all resolutions (H.264)
• H.264, MJPEG codec supported, Multiple streaming
• Day & Night (ICR), WDR (120dB)
• Tampering, Motion detection
• microSD/SDHC/SDXC memory slot (Max. 32GB), PoE
• Hallway view, WiseStreamII support
• IR viewable length 20m
