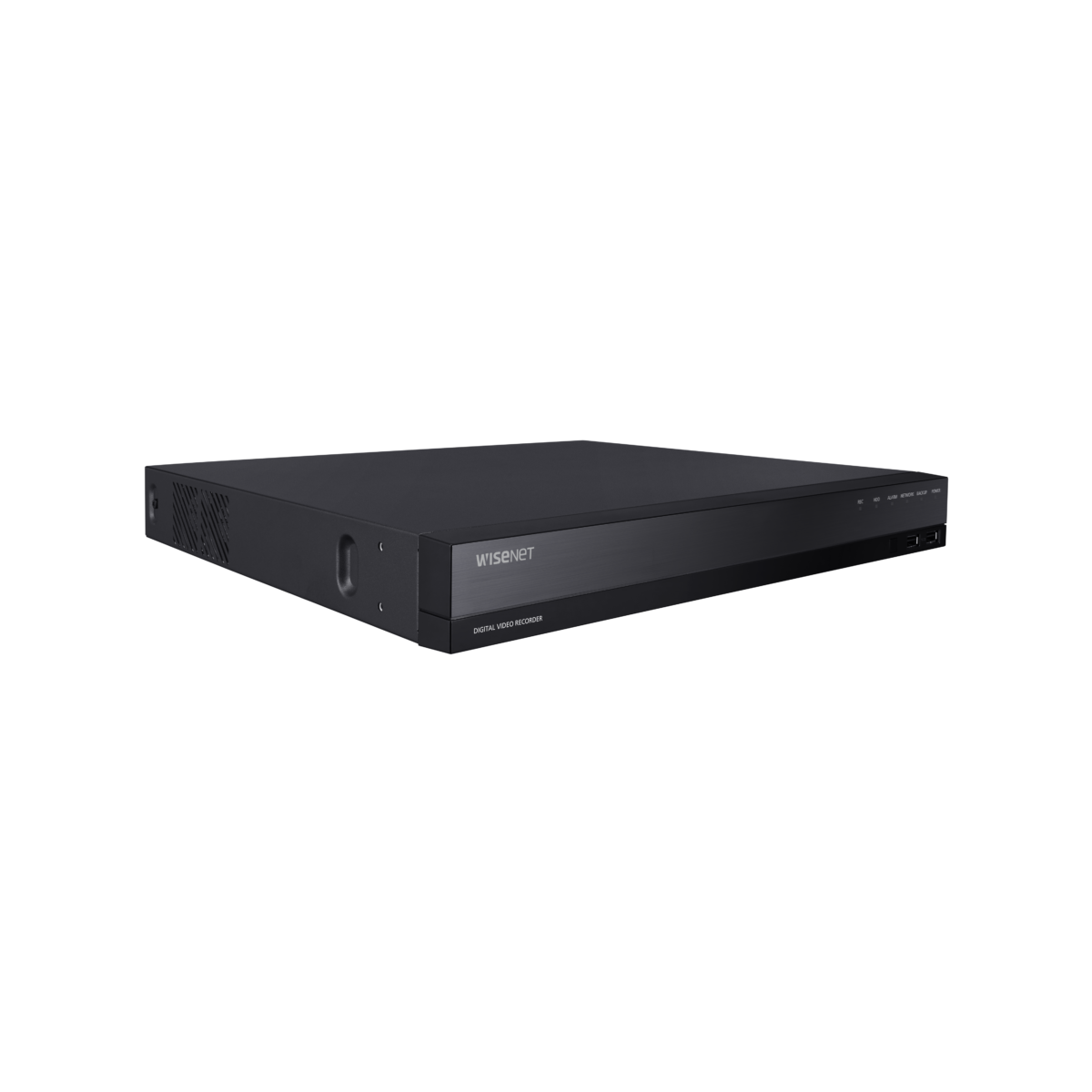

HRX-820 8CH Pentabrid DVR it’s a CCTV system having  HDTVI(8MP, 5MP, 4MP, 1080p, 720p) and HDCVI(5MP, 4MP, 1080p, 720p)

Analog camera

Inputs: 8CH(1Vp-p 75ohm, BNC)

Signal Type:

AHD(8MP, 5MP, 4MP, 1080p, 720p)
HDTVI(8MP, 5MP, 4MP, 1080p, 720p)
HDCVI(5MP, 4MP, 1080p, 720p)

Network camera

Inputs: Max. 10CHR

esolution: 8MP ~ CIF

Protocols: SUNAPI(Wisenet), ONVIF


Local Display: 1x HDMI, 1x VGA (Dual monitor)
HDMI: 3840 x 2160, 1920×1080, 1280×720 (1920×1080, Clone mode)
VGA: 1920×1080, 1280×720

Resolution: [Ananlg Camera(NTSC/PAL)]
– 8MP(15/12fps), 5MP(20/12fps), 4MP(30/25fps), 2MP(30/25fps),1MP(30/25fps), 960H(or 720H)(30/25fps) * per CH
[Network Camera]
– Typ. 2MP(240fps)



Compression: H.265, H.264, MJPEG

Rate(Analog): Analog Camera(NTSC/PAL)
(Main Stream) 8MP 8/8fps CH, 5M 12/12fps CH, 4M 15/12fps CH, 2M 30/25fps CH, 720p 30/25fps/CH, SD 30/25fps/CH
(Sub Stream) 720p or higher : 640×360 full fps/CH, SD sugnal : upto SD full fps/CH
* The maximum recording frame rate depends on the frame rate of the input camera.

Recording Bandwidth: Max. 40Mbps (Analog Camera only) ~ 28Mbps (Network Camera only)

Resolution: 8MP ~ CIF

Mode:  Manual, Schedule (Continuous/Event), Event(Pre/Post), Dual Track

Event Trigger: Alarm Input
Analog Camera : Video Loss, Motion Detection,Tampering
Network Camera : Camera Event (Sensor, MD, Video analytics), VA event (Tampering, Enter / Exit, Passing, Virtual- line, (Dis)Appear, Face Detection, Audio detection), Defocus camera event

Event Action: E-mail, PTZ preset, Alarm out, Buzzer, Monitor out

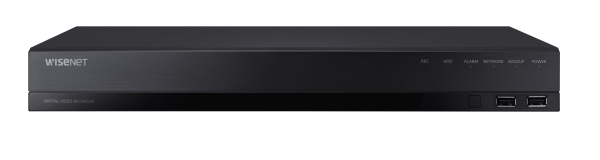

HRX-820 8CH Pentabrid DVR CCTV system

Search & Play

Playback Bandwidth: Max. 32Mbps (10CH simultaneously)

User: Max. 4 Users (Local 1, Remote 3)

Simultaneous playback: 10CH(Local Monitor)
4Ch (CMS, Wisenet Mobile), 1Ch(Web)

Fisheye Dewarping: WEB / CMS


Supported HDD: Up to 6TB

HDD Slot: SATA 2ea(Max 12TB)


File backup: BU, EXE(Include Player), AVI(Webviewer only)

Function: Max. 10 CH play, Date-time/title display



Control:  Via GUI, Webviewer, SSM, SmartViewer, Wisenet Mobile Viewer, System Controller

Smart phone

Support Model: iOS, Android

Protocol Support: RTP, RTSP, HTTP, CGI(SUNAPI)
