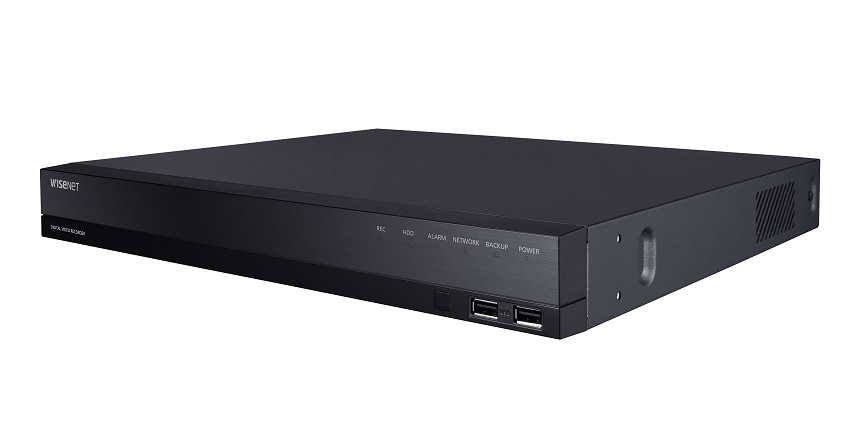

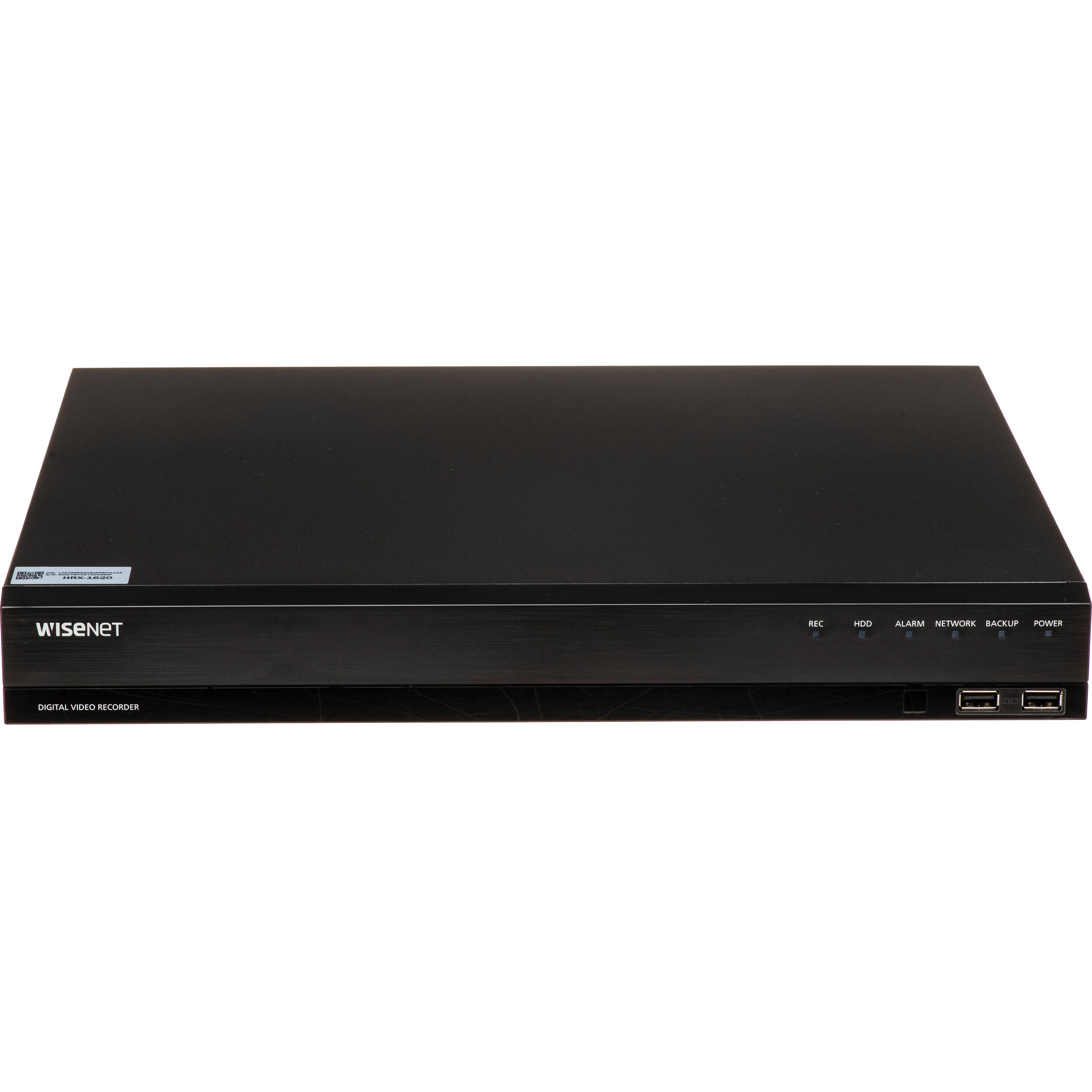

HRX-1620 16CH Pentabrid DVR is a CCTV system having Smart search(only Network camera) and it’s Up to 2 SATA HDDs(6TB/HDD)
Display
Analog camera
Inputs 16CH(1Vp-p 75ohm, BNC)
Signal Type AHD(8MP, 5MP, 4MP, 1080p, 720p)
HDTVI(8MP, 5MP, 4MP, 1080p, 720p)
HDCVI(5MP, 4MP, 1080p, 720p)
CVBS(NTSC/PAL)
Network camera
Inputs Max. 18CH
Resolution 8MP ~ CIF
Protocols SUNAPI(Wisenet), ONVIF
Live
Local Display 1x HDMI, 1x VGA (Dual monitor)
HDMI: 3840 x 2160, 1920×1080, 1280×720 (1920×1080, Clone mode)
VGA: 1920×1080, 1280×720
Resolution [Analog Camera(NTSC/PAL)]
– 8MP(15/12fps), 5MP(20/12fps), 4MP(30/25fps), 2MP(30/25fps),1MP(30/25fps), 960H(or 720H)(30/25fps) * per CH
[Network Camera]
– Typ. 2MP(480fps)
Performance
Record
Compression H.265, H.264, MJPEG
Record Rate(Analog) Analog Camera(NTSC/PAL)
(Main Stream) 8MP 8/8fps CH, 5M 12/12fps CH, 4M 15/12fps CH, 2M 30/25fps CH, 720p 30/25fps/CH, SD 30/25fps/CH
(Sub Stream) 720p or higher : 640×360 full fps/CH, SD sugnal : upto SD full fps/CH
* The maximum recording frame rate depends on the frame rate of the input camera.
Recording Bandwidth Max. 70Mbps (Analog Camera only) ~ 51Mbps (Network Camera only)
Resolution 8MP ~ CIF
Mode Manual, Schedule (Continuous/Event), Event(Pre/Post), Dual Track
Event Trigger Alarm Input
Analog Camera : Video Loss, Motion Detection,Tampering
Network Camera : Camera Event (Sensor, MD, Video analytics), VA event (Tampering, Enter / Exit, Passing, Virtual- line, (Dis)Appear, Face Detection, Audio detection), Defocus camera event
Event Action E-mail, PTZ preset, Alarm out, Buzzer, Monitor out
Search & Play
Playback Bandwidth Max. 32Mbps (18CH simultaneously)
User Max. 4 Users (Local 1, Remote 3)
Simultaneous playback 18CH(Local Monitor)
4Ch (CMS, Wisenet Mobile), 1Ch(Web)
Fisheye Dewarping WEB / CMS
Storage
Supported HDD Up to 6TB
HDD Slot SATA 2ea(Max 12TB)
Backup
File backup BU, EXE(Include Player), AVI(Webviewer only)
Function Max. 10 CH play, Date-time/title display
Functions
PTZ
Control Via GUI, Webviewer, SSM, SmartViewer, Wisenet Mobile Viewer, System Controller
Smart phone
Support Model iOS, Android
Protocol Support RTP, RTSP, HTTP, CGI(SUNAPI)
Control Live(16ch) : Multi-Profile Support
Playback(4Ch Multi Playback, Max 2MP)
Event push
Max. Remote Users Search(3), Live Unicast(10)
Redundancy
ARB Support
Easy configuration Setup Wizard (Language Date/Time, Password, Network, Auto Camera Configuration), P2P (QR code)
Coaxial Control CVBS(Pelco-C)/AHD/CVI/TVI
Interface
HDMI 1EA
VGA 1EA
BNC 16CH In / 1CH Out(Spot Output)
Audio Out(1EA, RCA, Line)
Ethernet RJ-45(10/100/1000BASE-T)
Alarm In 16EA, Out 4EA
– Relay Out1(NO/NC/COM)
– Relay Out2~4(NO/COM)
USB 3EA(Front USB2.0 2a , Rear USB 3.0 1ea)
Serial(Protocols) RS-485 (Samsung-T/Pelco-D/Pelco-p) * for PTZ
Power inlet 1EA DC Input Jack
System
System Control Mouse, IR Remocon, Webviewer, System Controller(SPC-7000, SPC-6000, SPC-2000)
Language English, French, German, Italian, Spanish, Russian, Turkish, Polish, Dutch, Swedish, Czech, Portuguese, Danish, Rumanian, Serbian, Croatian, Hungarian, Greek, Norwegian, Finnish, Korean, Chinese, Japanese, Thai
Environmental
Operating Temperature 0°C to +40°C(+32℉ to +104℉)
Operating Humidity 20% ~ 85% RH
Certification UL, CE, FCC, KC
Electrical
Power Input DC12V
Power Consumption Max. 41W (6T HDD 2ea)
Mechanical
Color / Material Black / Metal
Dimension (WxHxD) 370.0x 44.0 x 320mm(14.57” x 1.73” x 12.6”)
Weight Approx. 2.6Kg (5.8 lb, 4TB HDD 1ea)
Network
Protocol TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTSP, NTP, HTTP, DHCP (Server, Client), PPPoE, SMTP, ICMP, IGMP, ARP, DNS, DDNS, uPnP, HTTPS, SNMP, ONVIF (Profile-S), SUNAPI(Server, Client)
DDNS Wisenet DDNS
Transmission speed Analog Camera(NTSC/PAL)
(Main Stream) 8MP 8/8fps CH, 5M 12/12fps CH, 4M 15/12fps CH, 2M 30/25fps CH, 720p 30/25fps/CH, SD 30/25fps/CH, 720p 30/25fps/CH, SD 30/25fps/CH
(Sub Stream) 720p or higher : 640×360 full fps/CH, SD sugnal : upto SD full fps/CH
* The maximum recording frame rate depends on the frame rate of the input camera.
Transmission Bandwidth Max. 30Mbps
Audio
Input/Output 4 Line in / 1 Line out
Compression G.711 (N/W Cam G.711, 726)
Audio Communication 2-Way
Max Remote Users Search(3), Live Unicast(10), Multicast(20)
Security IP address filtering, User access log, 802.1x Authentication, Encryption (ID/PW, Recording, Transmission, Backup)
Device Certificate(Hanwha Techwin Root CA)
Viewer Software SSM, Webviewer, Smart Viewer, Wisenet mobile
Support SDK/CGI(SUNAPI) for integration to 3’rd party VMS
• The lastest product information / specification can be found at hanwha-security.com
• Design and specifications are subject to change without notice.
• Wisenet is the proprietary brand of Hanwha Techwin, formerly known as Samsung Techwin.
16CH Pentabrid DVR
• 5-in-1 16CH Pentabrid DVR
• AHD/HDTVI/HDCVI/CVBS/IP inputs
• Max. Analog 16CH + NW 2CH(Max. 18CH), up to 8MP
• H.265, H.264, MJPEG
• 8fps@8MP, 12fps@5MP, 30fps@2MP recording
• Coaxial control
• Smart search(only Network camera)
• Up to 2 SATA HDDs(6TB/HDD)
• HDMI/VGA Dual monitor
• P2P service(QR code connect)
