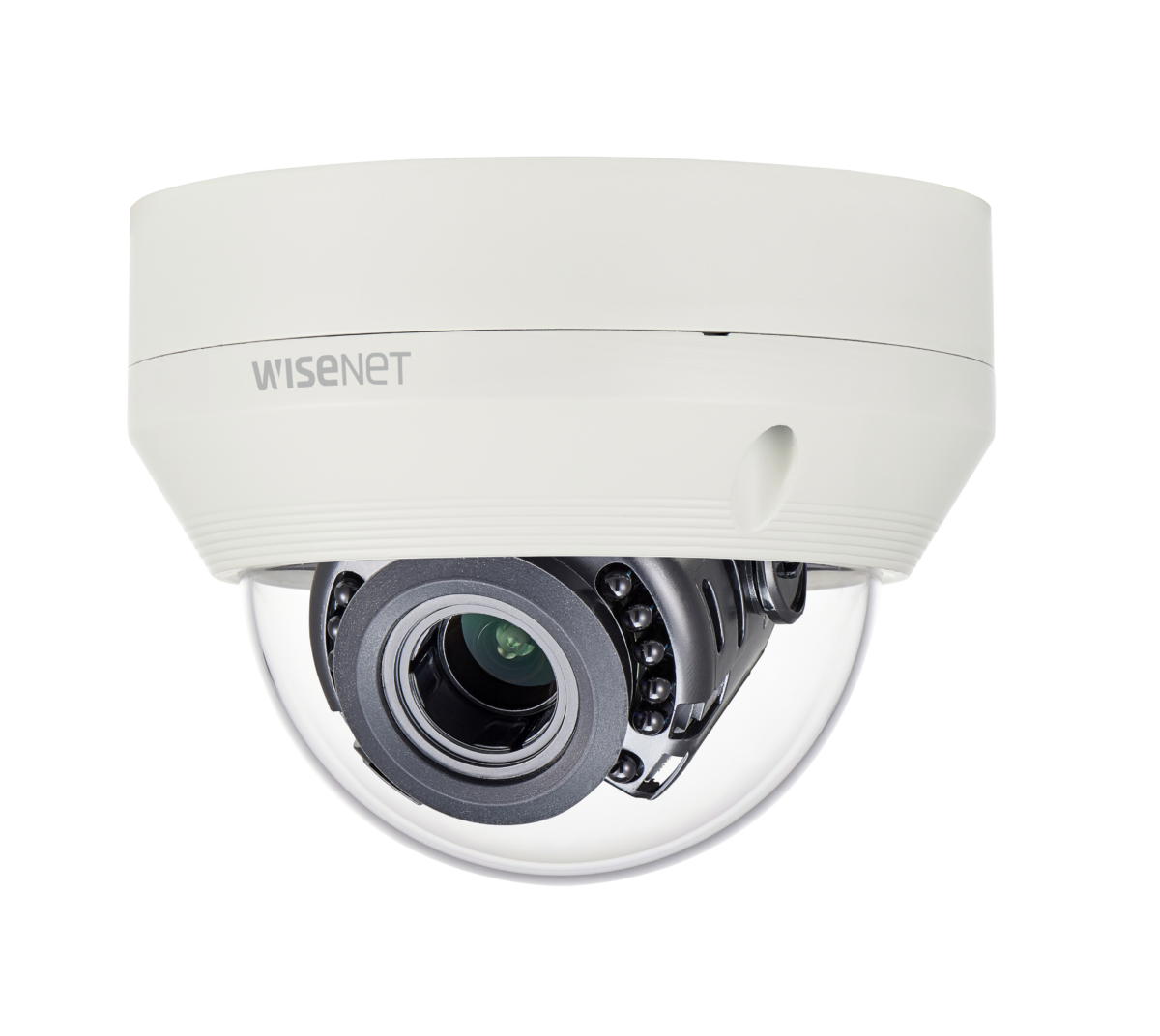

HCD-6080R 1080p Analog HD IR Dome Camera

HCD-6080R 1080p Analog HD IR Dome Camera is a CCTV system having Max. Framerate 30fps / 25fps(60Hz / 50Hz) and Min. Illumination Color 0.11Lux(F1.6)(30IRE)

Product Spec

Video

Imaging Device 1/2.8″ 2MP CMOS
Resolution 1920×1080
Max. Framerate 30fps / 25fps(60Hz / 50Hz)
Min. Illumination Color: 0.11Lux(F1.6)(30IRE)
BW: 0Lux(IR LED on)
Video Out BNC(AHD / TVI / CVI / CVBS Selectable)
Video Transmission Distance 500m(5C2V Coaxial Cable)

Lens

Focal Length (Zoom Ratio) 3.2~10mm(3.1x) motorized varifocal
Max. Aperture Ratio F1.6
Angular Field of View H: 110.2°(Wide) ~ 32°(Tele) / V: 55.4°(Wide) ~ 18°(Tele) / D: 128.4°(Wide) ~ 36.6°(Tele)
Min. Object Distance 0.5m(1.64ft)
Focus Control Manual
Lens Type DC auto iris
Pan / Tilt / Rotate
Pan / Tilt / Rotate Range 0° ~ 350° / 0° ~ 67° / 0° ~ 355°

Operational

Camera Title Displayed up to 15 characters
Day & Night Auto(ICR)
Backlight Compensation BLC, HLC, WDR
Wide Dynamic Range 120dB
Digital Noise Reduction SSNRⅣ
Defog Support
Motion Detection 4ea
Privacy Masking 8ea, rectangular zones
Gain Control Low / Middle / High / Very High
White Balance ATW / AWC / Manual / Indoor / Outdoor
Electronic Shutter Speed 1 ~ 1/12,000sec
Video Rotation H-Rev / V-Rev
Analytics Motion detection
Alarm I/O MD output 1ea
Alarm Triggers Analytics
Alarm Events Alarm output
IR Viewable Length 20m(65.62ft)
Coaxial Protocol ACP(AHD Coax Protocol), TCP(TVI Coax Protocol), CCP(CVI Coax Protocol)
CVBS: Pelco-C(Coaxitron)

Environmental & Electrical

Operating Temperature / Humidity -10°C ~ +55°C(+14°F ~ +131°F) / Less than 90% RH
Input Voltage 24VAC, 12VDC
Power Consumption Max 5.8W

Mechanical

Color / Material Ivory / Plastic
Product Dimensions / Weight Ø119.8×98.5mm(4.72×3.88″), 330g(0.73 lb)
• The lastest product information / specification can be found at hanwha-security.com
• Design and specifications are subject to change without notice.
• Wisenet is the proprietary brand of Hanwha Techwin, formerly known as Samsung Techwin.
