Sound System

CS3130 TW,CS3150 TW,CS3180 TW it's a Sound System, The tension speaker input voltage must match the output voltage of the amplifier; the sum of the nominal powers of all the speakers connected to the line must not be higher than that of the amplifier. CONSTANT VOLTAGE SYSTEMS This connection system requires each speaker to be equipped with its own line transformer. The amplifier must be equipped with 100V or 70V constant voltage outputs. The speakers, connected in parallel to the amplifier output, will make simple, if necessary, an expansion of the system deriving from any of the previously installed speakers; in the same way yes they will be able to eliminate speakers that are no longer needed. It is in the links It is necessary to respect the "phase" of both the individual speaker and its own transformer and in the parallel connection of the speakers. The tension speaker input voltage must match the output voltage of the amplifier; the [...]

P8083 range it's a Sound System that having Stereo FM/AM tuner module with backlit display, automaƟc and/or manual tuning, pre-selecƟon of up to 20 staƟons (10 FM plus 10 AM), and SLEEP funcƟon. Section Public Address Category Sound sources Range P8083 Description P8083  CD-MP3/USB/SD Card player and FM/AM stereo tuner A single container that can be mounted in a standard 19" rack and is one modular unit high, comprises a CD-MP3/ USB/SD Card player and an FM/AM stereo tuner. FuncƟonal features • Volume control and independent audio outputs on a double RCA socket for both sources of sound. • Combined audio output from which it is possible to pick up both signals of the modules with priority of the CD player over the tuner. • CD player module with back-lit display and shockproof system. • Normal, repeat, random or programmed play funcƟons. • Stereo FM/AM tuner module with backlit display, automaƟc and/or manual tuning, pre-selecƟon of up to 20 staƟons [...]

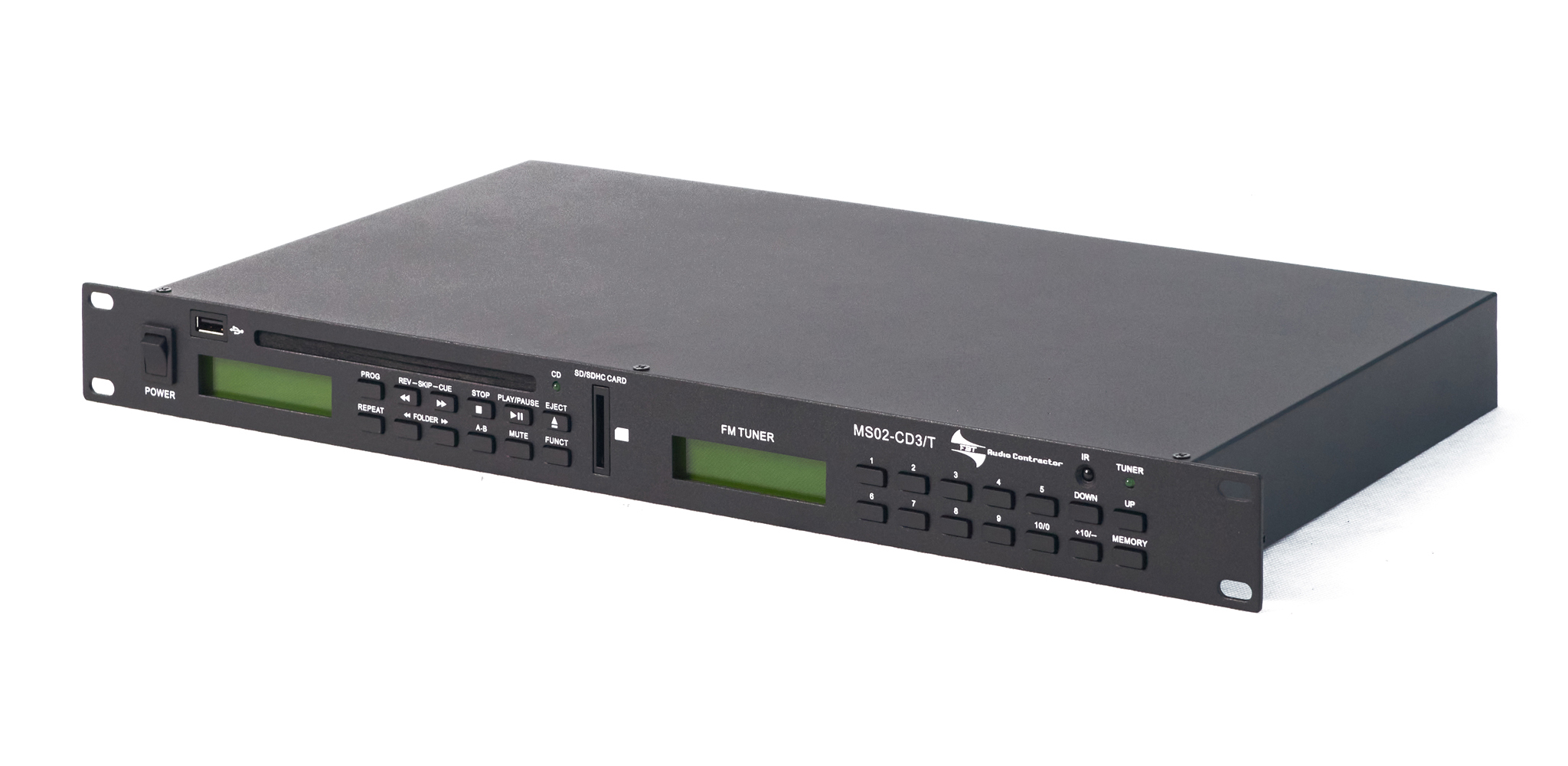

MS02 CD3/T it's a  Sound System that having CD with mechanic and electronic anti-shock, CD-R, CD-RW, MP3, USB MP3 available and Power supply 220Vac Dual source: -AM/FM synthesizer tuner - 20 preset memories for tuner (10x FM and 10xAM) - CD with mechanic and electronic anti-shock, CD-R, CD-RW, MP3, USB MP3 available - INPUT: FM 75 Ohm unbalanced antenna terminal, AM loop antenna terminal, USB port for memory stick - OUTPUT: RCA audio output for AM/FM tuner, RCA audio output for CD player - Power supply 220Vac - Power consumption 50VA - Weight 3,5kg - Dimensions 482 x 44 x 250mm FM SECTION Frequency range IF frequency 30dB sensitivity S/N at 1mV 3dB limiting IF rejection Image rejection THD at 1mV 40Hz dev. Stereo separation 1kHz Auto scan sensitivity AM suppression MOD 30% FM deviation 22.5kHz input level 1mV Overall AF response AM SECTION Frequency range IF frequency 20dB sensitivity S/N at 5mV/M 6dB bandwidth IF rejection Image rejection A.C.A [...]

Sound Systems Microphones Bases, MDS 1100-MDS 1300-MDF 5044-MCF 5042 ( DYNAMIC MICROPHONES ) having High-quality voice reproduction Low distortion MD-S 1100 Dynamic microphones cardioid • ON-OFF switch • Male XLR connector • Anthracite grey body • Black mesh and antipop filter High performance High-quality voice reproduction Low distortion High resistance to knocks Special cartridge suspension mount to isolate the microphone from handling noise • Ideally suited for speech applications MD-S 1300 Dynamic microphones percardioid • ON-OFF switch • Male XLR connector • Anthracite grey body • Black mesh and antipop filter • High performance • High-quality voice reproduction • Low distortion • High resistance to knocks • Special cartridge suspension mount to isolate the microphone from handling noise • Ideally suited for singing applications MD-F 5044 Dynamic microphones cardioid with gooseneck Male XLR connector • Low reflectivity black finish Outstanding directional characteristics • Ideal for: - hotels - shopping centres churches - conferences - offices MC-F 5042 Electret microphone with [...]

MB-T 8000 is a Sound System, The microphone bases in the MB-T 8000 series feature a plastic body with a metal base. These products stand out for their high sensitivity and wide frequency response and the microphones feature a cardioid polar curve. The bases are equipped with a functional 3-position switch, ON push-to-lock, OFF and push-to talk ON as well as an emergency button. • Pre-amplified (output OdBu) • Dynamics compressor to ensure optimal level of clarity • Internal message generator to indicate the start and end of microphone messages and for an emergency signal • Option to control priority (music off) • Management of 4 or 8 zones independently, depending on the model, and general calls • For the management of a larger number of zones, upon request Follow Us on Linkedin Contact Us

Sound Systems ( Chairman ), The innovative design makes the CS series more than just another conference system. With its ECM capsule, intelligent automatic mixing technology and integrated acoustic and mechanical system, the conference system provides turnkey solution with natural, feedback-free audio performance whatever the environment. This conference system is ideal for conferences up to 150 attendees. The system is composed of 1 central unit and up to a maximum of 150 chairman or delegate console. FBTAC CS 1CU Control unit Code 27510 • Controls the chairman and delegate microphones as well as the connections to other audio inputs and outputs • Self-powered FBTAC CS 1DU Delegate microphone base Code 27512 Provides the facility for the user to take part in the conference via the gooseneck microphone, a PTT ON/OFF switch is provided as is an internal loudspeaker and an external earphone socket • Flexible condenser microphone • Diameter without microphone 170x115x90mm • Microphone length 400mm • Net weight 1100g [...]
