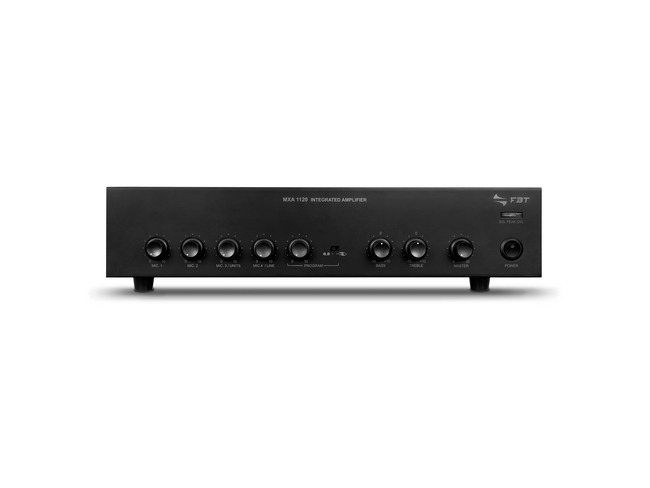

Integrated mixing amplifier MXA1060 it’s a sound system having 2 microphone inputs with phantom power supply (XLR). MIC 1 with automatic precedence function (VOX) and threshold adjustment control

PRODUCT DESCRIPTION
2 microphone inputs with phantom power supply (XLR). MIC 1 with automatic precedence function (VOX) and threshold adjustment control
Microphone input (XLR) with phantom power supply or RJ45 for connecting up to 6 MBT 1101 microphone stations (maximum distance 200 m)
MIC/PH/LINE input with associated selector switch 2 auxiliary inputs for sound sources (TAPE/CD)
Telephone/emergency audio input for priority calls with adjustable threshold and sensitivity
Front-panel level control for each microphone and auxiliary input

MXA1060 sound system Integrated mixing

Front panel overall volume control and treble and bass controls
Constant voltage (50/70/100 V) or 8 impedance loudspeaker line output
Auxiliary line output
LED-type Vu meter for immediate monitoring of output power
Micro switches for setting priorities and input functions
Inclusion/exclusion of speech filter on all microphone inputs
Contacts for activating input precedence
Alerting signal (chime) with level control
Selectable 230/115 VAC and 24 VDC mains power supply
