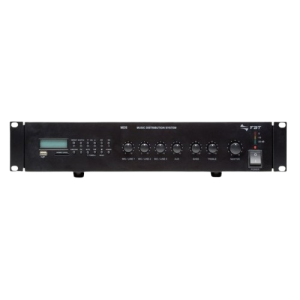

The MDS1000 ( 120W MDS1120 ) compact system range combines a reliable amplifier, an MP3 player, an SD/MMC card reader, a USB socket and a digital FM tuner together in a single convenient unit.
The rear mounted XLR sockets can be separately configured as microphone inputs with an option for phantom power, or as a line inputs. The three position selector switch determines the operation of each socket
Music Distribution System with Amplifier 120W
MP3 player , SD/MMC card drive, USB socket , digital FM tuner
n°3 MIC./LINE inputs with operating mode selector switches
n°1 VOX input (MIC/LINE 1)
n°1 auxiliary input for sound sources (TAPE/CD)
XLR sockets for connection to dynamic microphones and/or MBT 6400S microphone bases
Terminal strip for speakers output (25-50-100V/4ohm)
Terminal strip for external 24 Vdc power supply
Terminal strip for microphone precedence
Possibility to connect an external equalizer and/or booster
Selectable main power (230/120Vac)
Dimensions: 430x88x270mm
Weight: 8,3 kg
