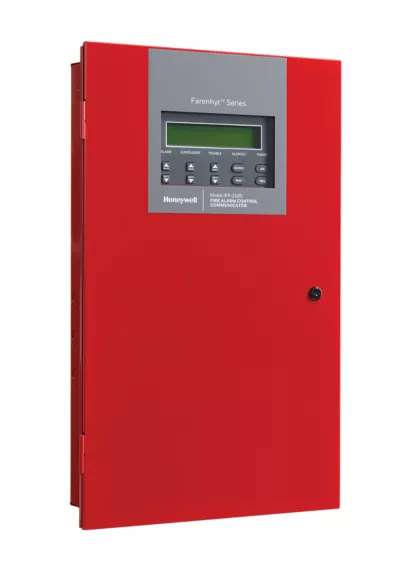

IFP-2100 HV Fire Alarm Control System

IFP-2100 HV Fire Alarm Control System having Operating Temperature: 32°F to 120°F (0°C to 49°C) and 18AH max. allowed in control panel

PHYSICAL
Overall Dimensions: 26.4”H x 16.4"W x 4.11”D
Shipping Weight: 33 lbs.
Color: Red or Black
ENVIRONMENTAL

Operating Temperature: 32°F to 120°F (0°C to
49°C)
Humidity: 0 to 93% relative humidity (noncondensing)
ELECTRICAL
IFP-2100 Primary AC: 120VAC @ 50/60Hz, 4.5A
IFP-2100HV AC: 240VAC @ 50/60Hz, 2.8A
Total Accessory Load: 9A @ 24VDC power-limited
Standby Current: 230mA
Alarm Current: 415mA
Battery Charging Capacity: 17 to 55AH
Battery Size: 18AH max. allowed in control panel
cabinet. Larger capacity batteries can be housed in
RBB accessory cabinet.
Six Conductor Wiring: Two voice bus & four SBUS
