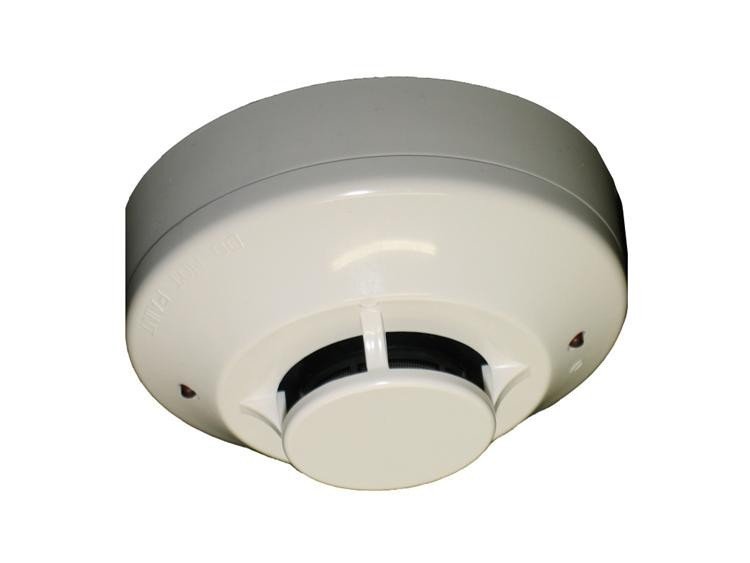

IDP-PHOTO-W Series intelligent plug-in smoke detectors are designed for both performance and aesthetics. A new modern, sleek, contemporary design and enhanced optical sensing chamber is engineered to sense smoke produced by a wide range of combustion sources in accordance with more stringent code standards.
The IDP-PHOTO-W Series detector sensitivity can be programmed in the control panel software. Sensitivity is continuously monitored and reported to the panel. Point ID capability allows each detector’s address to be set with rotary, decimal address switches, providing exact detector location for selective maintenance when chamber contamination reaches an unacceptable level.
Dual electronic thermistors add 135°F (57°C) fixed temperature thermal sensing on the IDP-PHOTO-T. The IDP-PHOTO-R is a remote test capable detector for use with DNR Series duct detector housings.
Weight
1 lbs
Dimensions
5 × 5 × 5 in
Color
Device Addressing
Rotary Dials
Sensing Element
Photoelectric
Series
Farenhyt IDP-PHOTO-W Series: Intelligent Plug-in Photoelectric Smoke Detectors, Farenhyt Series
System Type
Addressable
