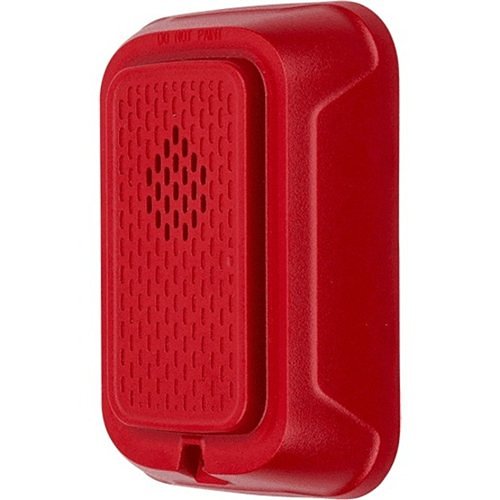

Horn HRL

Horn HRL is a Fire Alarm System having Operating Temperature 32°F to 120°F (-0°C to 49°C) and Maximum Humidity 10 to 93% non-condensing

Specifications
Color

Red
DC Max Op Current

see Data Sheet for complete current draw information

Dimensions

5.6"L x 4.7"W x 1.25"D (142 mm L x 119 mm W x 32 mm D)

FWR Max Op Current

see Data Sheet for complete current draw information

Location

Indoor

Maximum Humidity

10 to 93% non-condensing

Mounting

Wall

Operating Temperature

32°F to 120°F (-0°C to 49°C)

Operating Voltage Range

8 to 17.5 V (12V nominal) or 16 to 33 V (24 nominal)

Series

L-Series

Voltage

Regulated 12DC/FWR or regulated 24DC/FWR

Wiring Gauge

12 to 18 AWG
