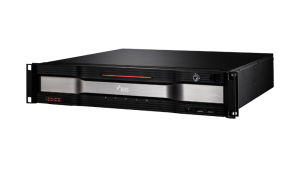

DirectIP 8500 Series H.265 4K Recorder
DirectIP 8500 Series H.265 4K Recorder
The DR-8564 is the flagship 64-channel NVR in the DirectIP 8500 series. Engineered for large-scale enterprise solutions, it delivers massive throughput, 4K resolution support, and mission-critical data redundancy through advanced RAID configurations.
Product Features
Product Features
Massive Performance: Total incoming throughput of up to 540Mbps.
4K UHD Experience: Supports real-time recording and display up to 1920ips UHD.
High Efficiency: H.265 / H.264 codec support reduces storage costs by up to 50%.
Data Reliability (RAID): Supports RAID 1, 5, and 10 to prevent data loss in case of HDD failure.
Plug & Play: DirectIP technology for automatic camera recognition and one-click network configuration.
Scalable Storage: Supports up to 8 Internal SATA HDDs and expandable storage via eSATA.
Global Compliance: Fully NDAA & TAA compliant, meeting the strictest cybersecurity and regulatory standards.
Universal Compatibility: Supports third-party cameras (Axis, Panasonic, ONVIF, etc.).
Technical Specifications
Technical Specifications
VIDEO & CAPACITY
Channels: Up to 64 Channels.
Max. Throughput: 540Mbps (Incoming) / 540Mbps (Outgoing).
Recording Resolution: Up to 12MP (including 4K UHD).
Display Output: 1 HDMI (up to 3840x2160) and 1 VGA (up to 1920x1080).
STORAGE & REDUNDANCY
Internal HDD: 8 x SATA slots (Max capacity depends on HDD size).
External Storage: 2 x eSATA ports.
RAID Support: RAID 1, RAID 5, RAID 10 for professional data protection.
Smart Failover: Ensures continuous recording during network instability.
NETWORK & CONNECTIVITY
Video In: 64 IP Channels (via Network Switch).
Interface: Gigabit Ethernet ports for stable high-speed data transfer.
Remote Connection: One-click network configuration via IDIS FEN service.
Software Integration: Fully compatible with IDIS Center and IDIS Solution Suite (ISS).
GENERAL
Operating System: Embedded Linux (For 24/7 stability).
Security: SSL Encryption, IP Address Filtering, Multi-user Authority Levels.
Dimensions: 2U Rack Mount Chassis (430mm x 88mm x 410.8mm).
Power: 100-240V~, 50/60Hz, 2.0-1.0A.
