DR-6532P-A
DR-6532P-A

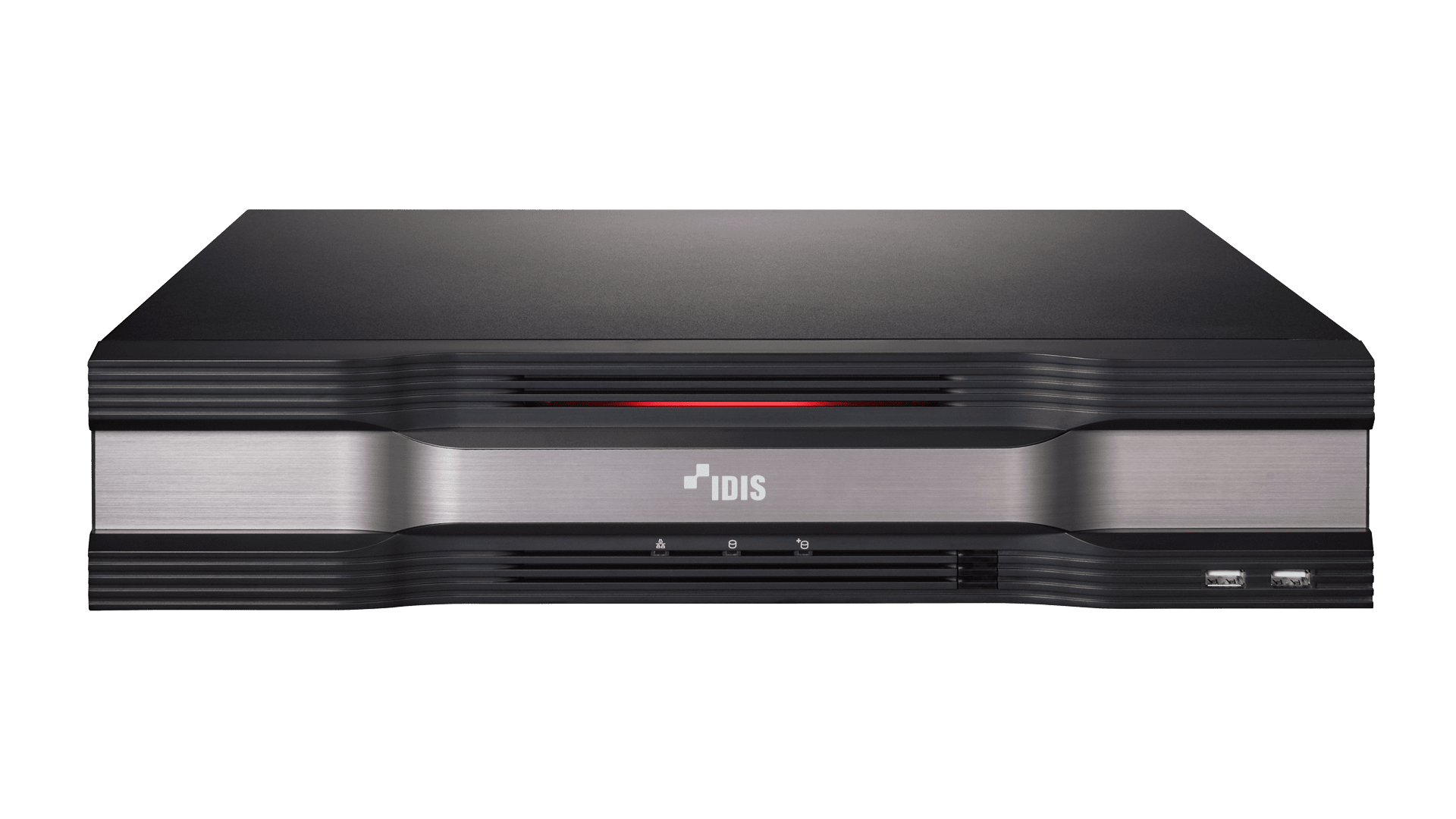

DirectIP 6500 Series H.265 4K Recorder
DirectIP 6500 Series H.265 4K Recorder
The DR-6532P-A is an expert-level 32-channel NVR designed for high-performance surveillance systems. As a core component of KYR Company’s light current security systems, this recorder features built-in AI Analytics and massive PoE capacity, making it a powerful, all-in-one solution for integrated security solutions.
Product Features
Product Features
4K UHD Performance: Supports high-definition recording and playback with a total incoming throughput of 320Mbps.
Integrated AI Analytics: Powered by the IDIS Deep Learning Engine, supporting Object Detection, Intrusion, Loitering, and Face Detection.
High PoE Capacity: Built-in 16-port PoE switch (IEEE 802.3at Class 4) with a total power budget of 200W for direct camera power.
Reliable Storage: Supports 6 internal SATA HDDs and 4 eSATA ports, with RAID 1 support for mission-critical data redundancy.
Smart Codec Efficiency: Utilizes H.265 and IDIS Intelligent Codec to deliver up to 90% savings on storage and bandwidth.
Cybersecurity & Compliance: Fully NDAA Compliant, ensuring secure data confidentiality and protection against unauthorized access.
Seamless Integration: DirectIP™ technology allows for true plug-and-play setup with automatic camera mutual authentication.
Technical Specifications
Technical Specifications
VIDEO & RECORDING
Video Inputs: 32 IP Channels.
Max. Throughput: 320Mbps Incoming / 230Mbps Recording.
Recording Resolution: Up to 12MP (Depending on IP Camera).
Display Resolution: HDMI output up to 3840 x 2160 (4K).
Compression: H.265, H.264, and Intelligent Codec supported.
STORAGE & INTERFACE
Internal HDD: 6 x SATA Ports.
External Storage: 4 x eSATA Ports.
RAID Support: RAID 1 Supported.
PoE Ports: 16 Ports (IEEE 802.3at Class 4), 200W total.
Alarm I/O: Local(NVR): 4 In / 1 Out; IP Camera: 32 In / 32 Out.
NETWORK & GENERAL
Client Connection: 1 x Gigabit Ethernet Port.
Operating System: Embedded Linux for 24/7 stability.
Dimensions (WxHxD): 430mm x 88mm x 420mm (16.9" x 3.5" x 16.5").
Operating Temperature: 0°C to 40°C (32°F to 104°F).
Power Input: 100-240 V AC, 50/60 Hz, 3.0-1.5 A
