DC-Y6516X Fisheye Camera

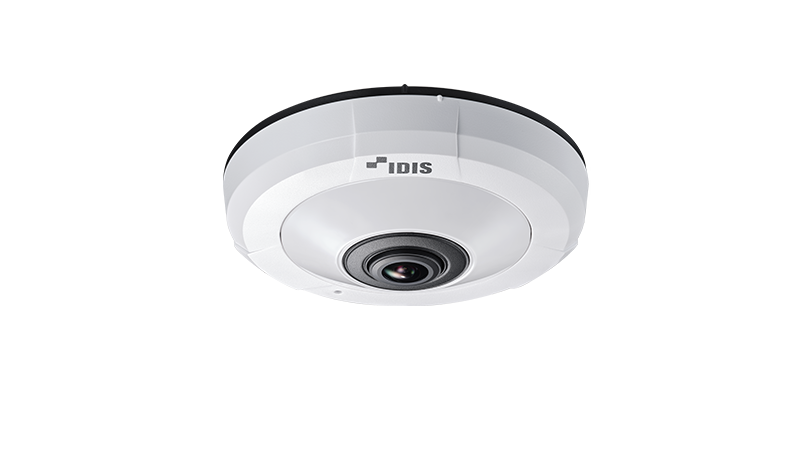

IDIS DC-Y6516X Fisheye Camera: Ultimate 360° Surveillance Solution

The IDIS DC-Y6516X is a high-performance fisheye camera engineered for expansive panoramic surveillance. Designed for modern security applications, this 12MP camera delivers unmatched clarity, coverage, and ease of installation, making it ideal for retail, commercial, and public spaces.

Key Features

• 12MP Resolution: Equipped with a 1/1.8” CMOS sensor, the DC-Y6516X captures stunningly detailed images at 2560 x 2048 resolution, ensuring every detail is visible.

• 360° Panoramic View: The fixed-focal lens with a 1.5mm focal length and F1.8 aperture provides full 180° horizontal, vertical, and diagonal coverage, eliminating blind spots.

• Advanced Dewarping Technology: Featuring dual-side dewarping and smooth mobile dewarping, the camera ensures distortion-free panoramic video in real-time.

• Robust Design: Rated IP67 for outdoor readiness and IK10 for vandal resistance, it can withstand harsh weather and tampering attempts.

• Smart Event Detection: Supports motion detection, tampering alerts, trip zones, and audio detection, enhancing proactive security measures.

• Flexible Installation: Power via PoE (IEEE 802.3af Class 3) simplifies wiring, while its compact design (Ø135 x 56.9 mm) ensures discreet mounting.

• Edge Storage: Compatible with micro SD/SDHC/SDXC cards up to 512GB, supporting smart failover to safeguard video during network interruptions.

• Video Compression: H.265, H.264, and MJPEG formats optimize bandwidth and storage while maintaining high image quality.

Ideal Applications

The DC-Y6516X excels in environments where full-area coverage is critical, including:

• Retail stores and shopping malls

• Airports and transit hubs

• Educational campuses

• Corporate offices and lobbies

• Public facilities and government buildings

Summary

With its 12MP high-resolution sensor, 360° panoramic view, and durable IP67/IK10 housing, the IDIS DC-Y6516X fisheye camera provides a powerful, all-in-one surveillance solution. Its dual-side dewarping, edge storage, and smart detection features make it a top choice for organizations seeking comprehensive security coverage with minimal blind spots.
