DC-Y6516WRX Fisheye Camera

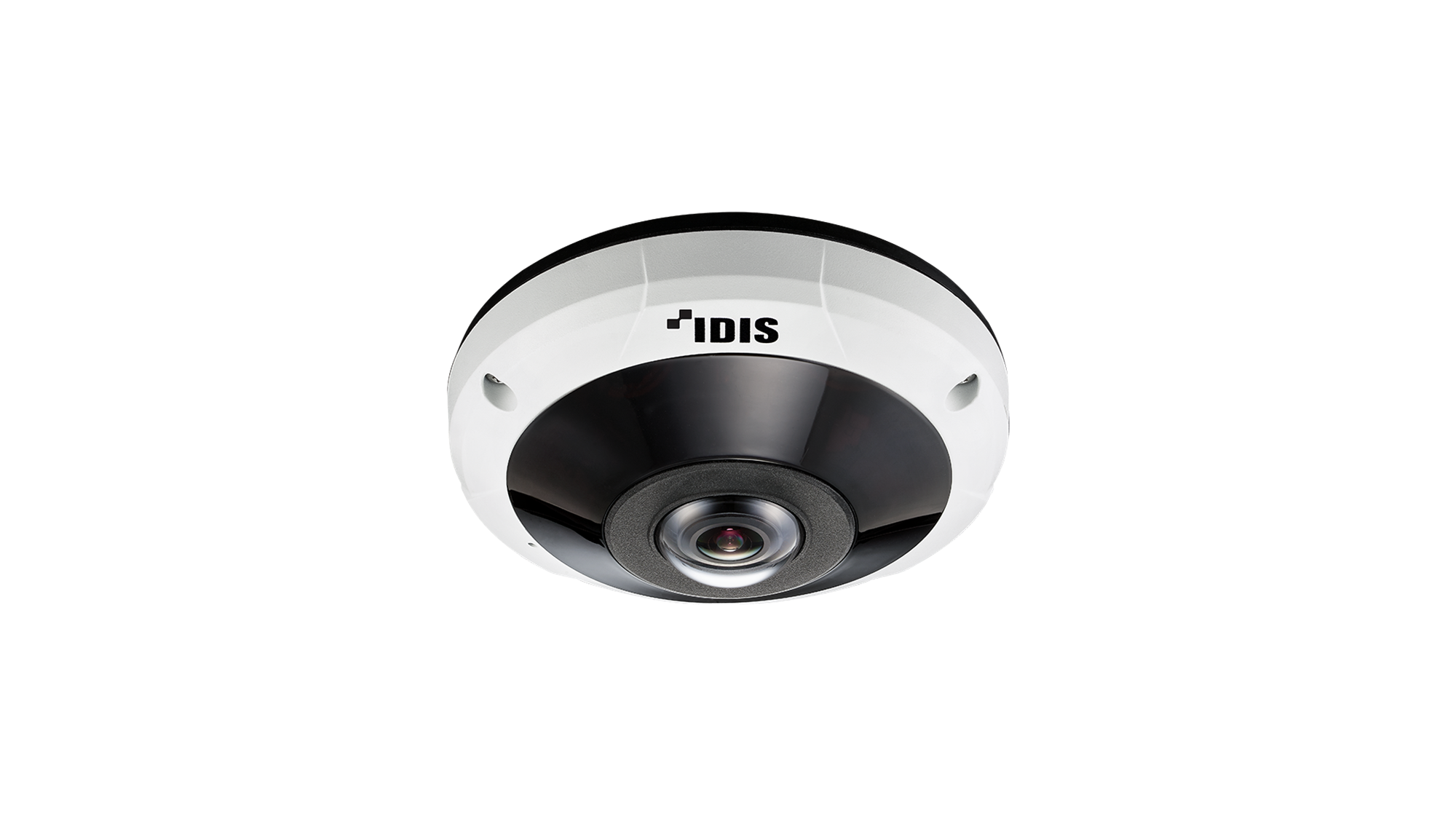

IDIS DC-Y6516WRX Fisheye Camera

Revolutionizing Panoramic Surveillance

The IDIS DC-Y6516WRX is a state-of-the-art fisheye camera designed to provide unparalleled panoramic surveillance. Ideal for indoor and outdoor environments, this camera combines high-resolution imaging, robust build quality, and advanced features to ensure comprehensive monitoring with minimal blind spots.

Key Features and Specifications

• Image Sensor: 1/1.8” CMOS sensor for crisp and clear video.

• Resolution: Supports up to 2560 x 2048 pixels, providing detailed image quality.

• Lens Type: Fixed-focal fisheye lens with a 1.5 mm focal length.

• Aperture & Iris: F1.8 aperture with fixed iris for consistent exposure in varying light conditions.

• Field of View: Offers a 180° horizontal, vertical, and diagonal view, ensuring maximum coverage.

• Frame Rate: Delivers up to 30 fps at full resolution, maintaining smooth video capture.

• Video Compression: Supports H.265, H.264, and MJPEG for efficient storage and streaming.

• Edge Storage: Micro SD/SDHC/SDXC slot with Smart Failover, supporting up to 512 GB.

• Advanced Imaging: Includes motion detection, tampering alerts, trip zones, and audio detection for proactive surveillance.

• Durability: IK10-rated vandal-proof casing and IP67 weather resistance for reliable outdoor operation.

• Operating Conditions: Works in temperatures ranging from -10°C to +50°C, suitable for diverse environments.

• Power Options: Flexible powering via 12V DC or PoE (IEEE 802.3af Class 2), simplifying installation.

• Dimensions & Weight: Compact design with a diameter of 135 mm x 56.9 mm height and a weight of 0.67 kg, allowing discreet placement.

• Audio & Alarms: Built-in microphone with 1/1 audio in/out and alarm input/output for integrated security systems.

Why Choose the DC-Y6516WRX?

The DC-Y6516WRX excels in providing full panoramic coverage without the need for multiple cameras, reducing installation and maintenance costs. Its dual-side dewarping technology ensures smooth and distortion-free images, while edge storage and smart failover capabilities ensure no crucial footage is lost. The camera’s robust design, combined with versatile power options, makes it perfect for high-traffic areas, retail stores, offices, and critical infrastructure.

With advanced features like motion detection, tampering alerts, and trip zone monitoring, the DC-Y6516WRX enhances security and situational awareness, offering peace of mind and reliable surveillance performance.
