DC-V4212XJ (4.3mm)
DC-V4212XJ (4.3mm)

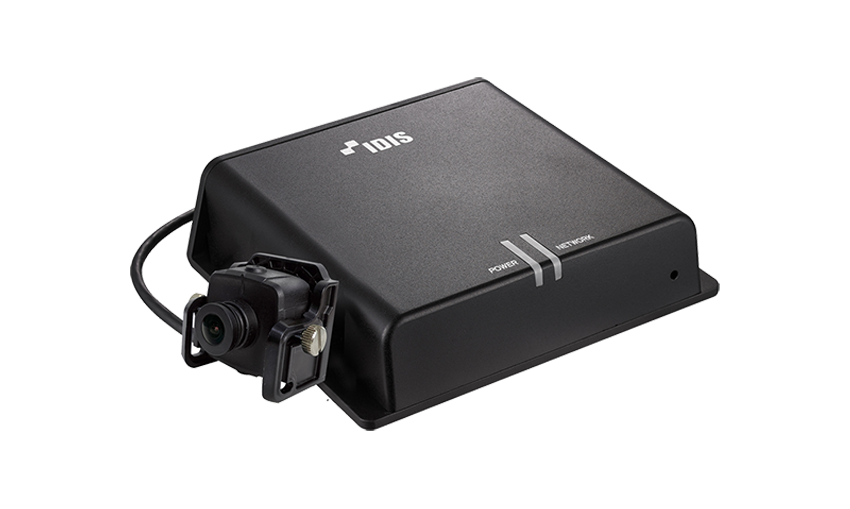

2MP Modular Covert Camera | Standard View Pinhole
2MP Modular Covert Camera | Standard View Pinhole
This modular system is engineered for total discretion. By utilizing a 4.3mm fixed lens, it captures subjects with minimal distortion, ensuring that facial features are clear and proportional—a critical requirement for forensic identification. Like all DirectIP™ devices, it offers a secure, plug-and-play experience that is both NDAA and TAA compliant.
Product Features
Product Features
Targeted Identification: The 4.3mm lens offers a narrower, more focused field of view (81.6°) compared to wide-angle models, providing higher pixel density on subjects’ faces.
True 1080p Quality: Delivers high-definition 2MP video at 30ips, even when Wide Dynamic Range (WDR) is active.
Invisible Installation: The tiny pinhole lens can be mounted behind panels, inside machines, or within decorative fixtures, connected by a long cable (up to 30m) to the concealed main unit.
Advanced Light Handling: Features 120dB True WDR to handle the extreme glare often found in glass-heavy lobbies or ATM environments.
Smart Storage: Uses IDIS Intelligent Codec (H.265/H.264) to reduce storage and bandwidth costs by up to 90%.
Interactive Security: Supports Two-Way Audio and Alarm I/O, allowing security teams to listen or communicate through the hidden unit.
Zero-Loss Recording: Includes a microSD slot (up to 512GB) with Smart Failover, ensuring data is backed up if the network connection drops.
Technical Specifications
Technical Specifications
VIDEO & LENS PERFORMANCE
Image Sensor: 1/2.8" CMOS.
Max. Resolution: 1920 x 1080 (2MP).
Lens Type: Fixed-focal Pinhole (f=4.3mm).
Angular Field of View: Horizontal: 81.6° / Vertical: 42.3° / Diagonal: 99°.
Min. Illumination: Color: 0.1 Lux / B/W: 0.01 Lux.
Dynamic Range: 120dB (True WDR).
NETWORK & CONNECTIVITY
Protocol: DirectIP 2.0 (Plug-and-Play), ONVIF Profile S/T.
Compression: H.265, H.264, M-JPEG.
Intelligence: Motion Detection, Active Tampering Alarm, Trip Zone.
Security: SSL Encryption, Password Protection, IP Filtering.
INTERFACE & ELECTRICAL
Audio I/O: 1 In / 1 Out (G.711 / G.726).
Alarm I/O: 1 In / 1 Out.
Power Source: PoE (IEEE 802.3af Class 4) or 12V DC.
Power Consumption: Max 6.3W.
Edge Storage: microSD/SDHC/SDXC (Up to 512GB).
MECHANICAL
Main Unit Weight: 0.47 kg (1.04 lb).
Camera Unit Weight: 0.06 kg (0.13 lb).
Operating Temp: -10°C to +50°C.
