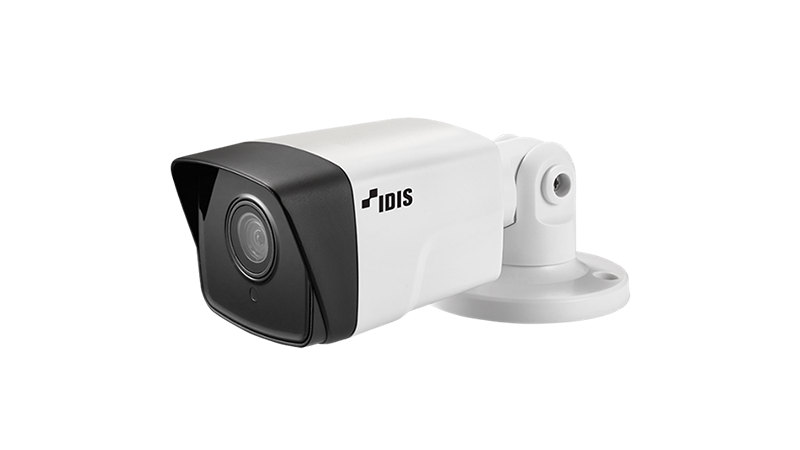

IDIS DC-T4217WRX Network Camera
IDIS DC-T4217WRX Network Camera
Reliable 2MP Outdoor Bullet Camera for Professional Surveillance
Reliable 2MP Outdoor Bullet Camera for Professional Surveillance
The IDIS DC-T4217WRX is a high-performance 2MP network bullet camera designed for reliable outdoor surveillance with excellent image clarity, flexible lens options, and durable weatherproof construction. Built for commercial, industrial, and enterprise environments, this camera delivers dependable monitoring with advanced compression, robust protection, and easy integration into existing IDIS systems.
Overview: IDIS DC-T4217WRX
Overview: IDIS DC-T4217WRX
The DC-T4217WRX is part of IDIS’s 4200 Series bullet cameras, offering Full HD 1080p resolution, multiple fixed lens options, and IR night visibility for consistent monitoring in both daylight and low-light environments.
With IP67 weatherproof rating and IK10 vandal resistance, the DC-T4217WRX is engineered for outdoor installations, including:
Commercial buildings
Warehouses
Retail stores
Parking lots
Schools & campuses
Industrial facilities
Key Features of DC-T4217WRX
Key Features of DC-T4217WRX
Full HD 2MP Resolution
Full HD 2MP Resolution
The camera features a 1/2.8" CMOS image sensor with 1920 × 1080 resolution, delivering clear and detailed video for identification and monitoring.
Multiple Fixed Lens Options
Multiple Fixed Lens Options
The DC-T4217WRX offers flexible viewing angles with three lens options:
2.8mm lens — Wide coverage
4.0mm lens — Balanced view
6.0mm lens — Narrow, longer-distance monitoring
Field of View:
2.8mm: 111.6° (H) / 61.45° (V) / 127.3° (D)
4.0mm: 87.4° (H) / 46.9° (V) / 103.5° (D)
6.0mm: 53.5° (H) / 29.5° (V) / 62.1° (D)
This flexibility allows installers to choose the best lens for each surveillance environment.
Built for Outdoor Performance
Built for Outdoor Performance
IP67 Weatherproof Protection
The DC-T4217WRX is IP67 rated, ensuring reliable operation in rain, dust, and harsh outdoor environments.
IK10 Vandal-Resistant Housing
The rugged housing protects the camera from tampering and physical damage, making it ideal for public areas.
Wide Operating Temperature
The camera supports −10°C to +50°C operating temperature, ensuring dependable performance in varying climates.
Smart Surveillance Capabilities
Smart Surveillance Capabilities
The DC-T4217WRX includes essential video analytics and monitoring features:
Motion Detection
Audio Detection
Tampering Detection
Trip Zone Detection
Alarm Input / Output Support
Event-based notifications (Email / FTP)
These features help improve security response and reduce false alarms.
Video Compression & Streaming
Video Compression & Streaming
The camera supports modern compression technologies:
H.265
H.264
MJPEG
These formats reduce bandwidth usage while maintaining high image quality. The camera also supports multi-streaming, enabling efficient remote monitoring and recording.
Network & Storage Features
Network & Storage Features
The DC-T4217WRX supports:
RJ45 (10/100 Base-T) Ethernet
Micro SD / SDHC / SDXC Edge Storage
ONVIF compatibility
Secure HTTPS communication
Multi-user access control
These capabilities make integration with existing surveillance systems easy and scalable.
Power Options
Power Options
The camera supports flexible power configurations:
12V DC
PoE (IEEE 802.3af Class 3)
Power Consumption:
Approx. 11W (PoE)
Approx. 13.2W (12V DC)
This flexibility simplifies installation and reduces infrastructure costs.
Ideal Applications
Ideal Applications
The DC-T4217WRX is ideal for:
Commercial Buildings
Industrial Facilities
Schools & Campuses
Retail Stores
Parking Areas
Banking & Financial Institutions
Why Choose IDIS DC-T4217WRX
Why Choose IDIS DC-T4217WRX
Full HD 1080p resolution
Multiple lens options for flexible coverage
IP67 weatherproof design
IK10 vandal-resistant housing
Smart event detection features
H.265 bandwidth optimization
Easy integration with IDIS ecosystem
Reliable outdoor performance
Technical Specifications (Quick Summary)
Technical Specifications (Quick Summary)
Resolution: 1920 × 1080 (2MP)
Sensor: 1/2.8" CMOS
Lens Options: 2.8mm / 4.0mm / 6.0mm
Compression: H.265 / H.264 / MJPEG
Protection: IP67, IK10
Storage: Micro SD / SDHC / SDXC
Power: 12V DC / PoE
Temperature: −10°C to +50°C
Network: RJ45 10/100 Base-T
Conclusion
Conclusion
The IDIS DC-T4217WRX is a reliable, cost-effective, and durable 2MP network bullet camera designed for professional surveillance applications. With flexible lens options, rugged outdoor protection, and smart monitoring features, it delivers dependable security performance for a wide range of environments.
Whether deployed in retail, commercial, or industrial set
