DC-T2531WR IDIS Lite Series Dome Cameras

The DC-T2531WR is the premium 5MP bullet camera in the IDIS Lite Series. While it shares a similar name with the dome version, its rugged bullet housing and powerful motorized lens make it KYR Company’s most versatile choice for long-range outdoor monitoring, such as gate entrances, perimeter walls, and expansive parking areas.

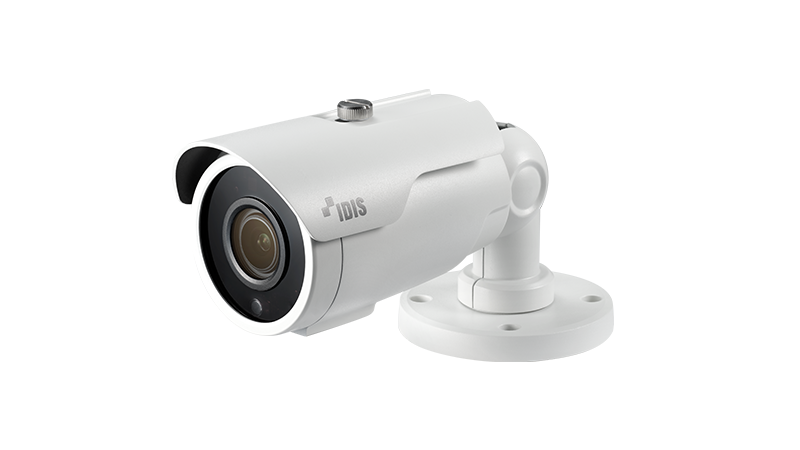

DC-T2531WR

5MP Full HD IR Bullet Camera (IDIS Lite Series)

The DC-T2531WR is designed for high-performance outdoor surveillance where clarity and adjustable focus are critical. Featuring a high-resolution 5MP Sony Starvis™ sensor and a motorized vari-focal lens, it allows security teams to zoom in on specific zones from the comfort of the control room. With IP67 and IK10 ratings, it is built to survive the harshest Egyptian environmental conditions while maintaining superior forensic detail.

Product Highlights

• 5MP Forensic Precision: Captures at 2592 x 1944 resolution (30ips), providing 2.5x the detail of 1080p, perfect for identifying license plates or facial features at a distance.



• Motorized Vari-focal Lens: Equipped with a 2.7mm – 13.5mm lens. This allows for remote optical zoom and focus, giving you the ability to switch from a wide 108.1° overview to a focused 30.3° telephoto view.





• Sony Starvis™ Technology: Built with the 1/2.8" Sony Starvis CMOS sensor for exceptional color reproduction in low-light environments.





• True WDR (120dB): Ensures high-quality images in scenes with extreme shadows and bright highlights, such as entrances facing direct sunlight.





• Extended Night Vision: Features 4 high-power IR LEDs providing a night-time range of up to 30 meters (98.4 ft).





• Maximized Storage Efficiency: Supports H.265 and triple streaming, reducing bandwidth and storage usage by up to 90% via IDIS optimizations.





• All-Weather Ruggedness: Rated IP67 (water/dust proof) and IK10 (vandal-resistant), with an operating temperature of up to +50°C.





• Global Security Standards: Fully NDAA & TAA compliant, ensuring secure data transmission and high-quality manufacturing.





Technical Specifications

VIDEO & IMAGE

• Image Sensor: 1/2.8" Sony Starvis CMOS.





• Max. Resolution: 2592 x 1944 (5MP).





• Lens Type: Motorized Vari-focal (2.7mm – 13.5mm).





• Min. Illumination: Color: 0.001 Lux @ F1.6 / B/W: 0 Lux (IR LED On).





• Angle of View: 108.1° (Wide) ~ 30.3° (Tele).





• Day & Night: True Day & Night with IR Cut Filter (ICR).





NETWORK & INTEGRATION

• Compression: H.265, H.264, M-JPEG.

• Audio: Two-way Audio (Line-In / Line-Out).



• Alarm I/O: 1 Input / 1 Output.

• Edge Storage: microSDHC / microSDXC slot (up to 512GB) with Smart Failover.



• Protocols: ONVIF Profile S/T, IDIS Lite, API.



ELECTRICAL & MECHANICAL

• Power Source: PoE (IEEE 802.3af Class 2) or 12V DC.



• Power Consumption: 6.3W.



• Dimensions: Ø79.3mm x 77.5mm x 212mm (Ø3.12”x3.05”x8.34”).



• Weight: 0.677 kg (1.49 lbs).




• Ratings: IP67 (Weatherproof) & IK10 (Vandal-Proof).
