DC-T2214WR IDIS Lite Series Dome Cameras

The DC-T2214WR is the high-durability Bullet version of the IDIS Lite Series. While it shares the same internal "Sony Starvis" technology as the dome model (DC-D2214R), its rugged bullet form factor makes it the preferred choice for KYR Company projects requiring a visible deterrent and superior outdoor reach.

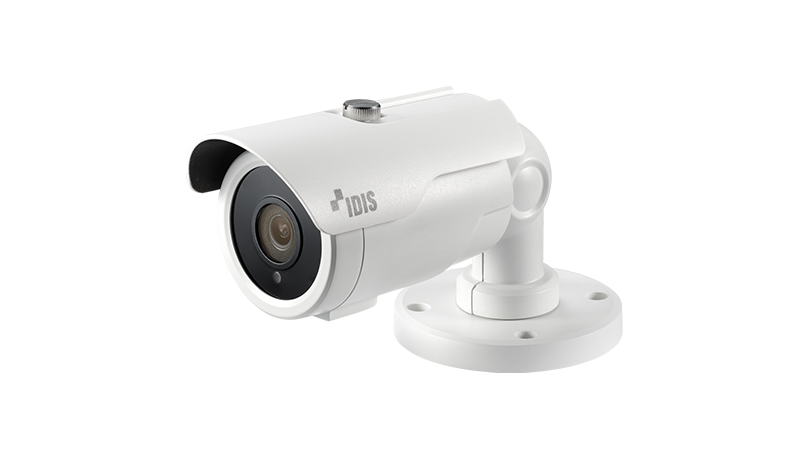

DC-T2214WR

2MP Full HD IR Bullet Camera (IDIS Lite Series)

The DC-T2214WR is engineered for high-performance outdoor surveillance where clarity and durability are non-negotiable. Powered by the Sony Starvis™ sensor, it provides exceptional low-light imagery, turning near-darkness into clear evidence. With its IP67 and IK10 ratings, it is built to withstand both extreme weather and physical tampering, making it ideal for perimeter security, parking lots, and building exteriors.

Product Highlights

• Sony Starvis™ Powered: Equipped with the 1/2.8" Sony IMX 307 Starvis CMOS sensor, delivering industry-leading color performance in ultra-low-light conditions.





• Full HD Resolution: Captures crisp 1080p (1920 x 1080) video at 30ips for smooth, detailed motion.





• Superior Night Vision: Features 4 high-power IR LEDs that extend clear visibility up to 25 meters (82 ft) in total darkness.





• True WDR (120dB): Prevents "washout" in high-contrast scenes, such as headlights at night or direct sunlight, ensuring subjects remain visible.





• Rugged Outdoor Build: Boasts an IP67 weather-resistance rating and IK10 vandal-resistance, making it a "bulletproof" choice for exposed areas.





• Wide-Angle Coverage: The 2.8mm fixed lens provides a broad 106.9° horizontal field of view, perfect for monitoring wide driveways or yards.





• Bandwidth Efficiency: Supports H.265 and triple streaming, reducing storage consumption by up to 90% while maintaining image quality.





• NDAA Compliant: Meets the highest international security standards for government and enterprise-level installations.





Technical Specifications

VIDEO & IMAGE

• Image Sensor: 1/2.8" Sony Starvis CMOS.





• Max. Resolution: 1920 x 1080 (2MP).





• Lens Type: Fixed-focal (2.8mm).





• Aperture: F1.6 (High light intake).





• Angular Field of View: 106.9°(H) / 56.9°(V) / 127.9°(D).





• Min. Illumination: Color: 0.001 Lux @ F1.6 / B/W: 0 Lux (IR LED On).





NETWORK & INTEGRATION

• Compression: H.265, H.264, M-JPEG.





• IP Camera Protocol: API, ONVIF Profile S/T, IDIS Lite.





• Intelligence: Motion Detection, Tampering Alarm, De-fog.





• Edge Storage: microSDHC / microSDXC slot (up to 512GB).





ELECTRICAL & MECHANICAL

• Power Source: PoE (IEEE 802.3af Class 2) or 12V DC.





• Power Consumption: Ultra-efficient 4.4W.





• Dimensions: Ø73.8mm x 69.1mm x 210.4mm (Ø2.9”x2.72”x8.28”).





• Weight: 0.536 kg (1.18 lbs).





• Environmental Ratings: IP67 (Weatherproof) & IK10 (Vandal-Proof).
