The DC-SP6C11EXY is a high-end 12MP Explosion-Proof Fisheye Camera, representing the ultimate in wide-area surveillance for high-risk environments. For KYR Company, this is the definitive solution for 360° situational awareness in hazardous locations like offshore platforms, gas storage facilities, and chemical processing plants.
Unlike standard fisheye cameras, this model is encased in an industrial-grade Stainless Steel 316L housing, specifically designed to contain internal explosions and survive corrosive atmospheres.

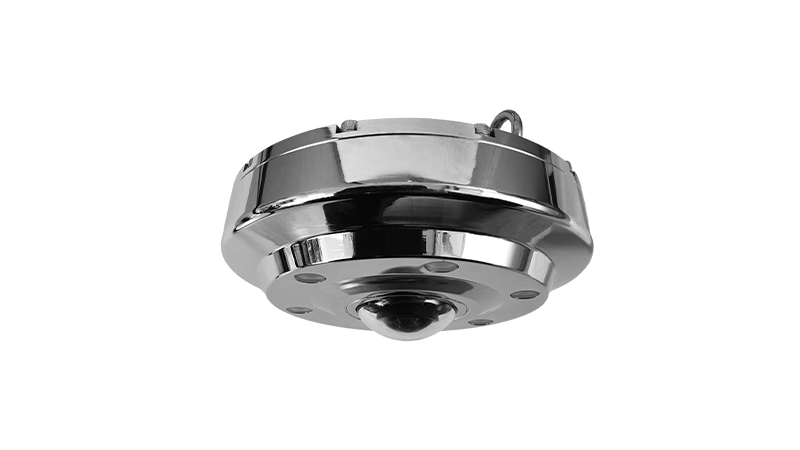

DC-SP6C11EXY
12MP Explosion-Proof IR Fisheye Camera
The DC-SP6C11EXY eliminates blind spots in hazardous zones. By providing a complete 360° field of view at a massive 12MP resolution, it can replace multiple fixed cameras, reducing the number of expensive explosion-proof cable runs and enclosures required for a project. It combines the forensic power of 4K+ resolution with the extreme safety ratings needed for Zone 1 and 2 environments.
Product Features
Hazardous Area Certified: Rated Ex db IIC T6 Gb (Gas) and Ex tD A21 T80°C (Dust), ensuring safety in atmospheres containing explosive gases or combustible dust.
Full 360° Coverage: A single camera captures an entire room or wide-area exterior, providing total situational awareness with no blind spots.
12.47MP Ultra-High Definition: Delivers stunning 2944 x 2944 resolution, allowing for powerful digital de-warping and clear zoomed-in details.
Corrosion-Resistant Housing: Constructed from Electro-polished Stainless Steel 316L, making it immune to salt spray and harsh chemical cleaners.
Superior Night Vision: Equipped with 4 high-power IR LEDs that provide 360° illumination up to 30 meters (98 ft).
Multiple Viewing Modes: Supports various de-warping modes including Panorama, Double Panorama, and Quad View for flexible monitoring.
True WDR (120dB): Successfully manages extreme light and shadow (e.g., bright outdoor glare vs. dark industrial corners) to ensure balanced exposure.
Extreme Weather Resilience: Rated IP67 and operational from -40°C to +55°C, built for the most punishing climates.
Technical Specifications
VIDEO & IMAGE
Image Sensor: 1/2.3″ Progressive Sony CMOS.
Max. Resolution: 2944 x 2944 (12.47MP)
Lens Type: Fixed-focal Fisheye (1.6mm).
Field of View: 180° (Horizontal) / 180° (Vertical) / 180° (Diagonal).
Min. Illumination: Color: 0.1 Lux @ F2.0 / B/W: 0 Lux (IR LED On).
Frame Rate: 30ips @ 2944 x 2944.
NETWORK & INTEGRATION
Compression: H.265, H.264, M-JPEG.
Protocol: DirectIP 2.0 (Plug-and-Play), ONVIF Profile S/T.
Audio/Alarm: Optional Audio and Alarm I/O for interactive security.
Edge Storage: microSD/SDHC/SDXC slot for local recording
ELECTRICAL & MECHANICAL
Explosion-Proof Rating: Ex db IIC T6 Gb / Ex tD A21 T80°C.
Material: Stainless Steel 316L (Electro-polished).
Power Source: PoE (IEEE 802.3af Class 3).
Power Consumption: Max 10.6W.
Dimensions: Ø180mm x 64mm (7.09″ x 2.52″).
Weight: 3.7 kg (8.15 lbs).
