The DC-SP6531EXD is a high-performance 5MP Explosion-Proof Mini Dome Camera, representing the pinnacle of IDIS’s specialty engineering. For KYR Company, this model is the essential choice for hazardous environments, including oil and gas refineries, chemical plants, and grain silos, where explosive gases or dust are a constant risk.

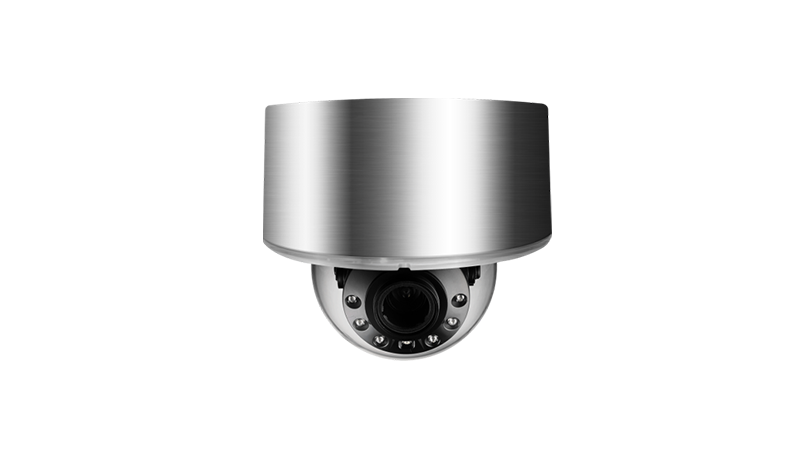

DC-SP6531EXD
5MP Explosion-Proof IR Mini Dome Camera
The DC-SP6531EXD is built to operate where standard cameras cannot. Encased in a rugged Stainless Steel 316L housing, it is designed to contain any internal spark and prevent the ignition of the surrounding atmosphere. Beyond its safety ratings, it delivers 5MP 4K-grade resolution and AI-driven analytics, ensuring that high-risk sites are monitored with the same intelligence as an enterprise office.
Product Highlights
Hazardous Area Certification: Rated Ex db IIC T6 Gb (Gas) and Ex tD A21 T80°C (Dust), making it safe for use in Zone 1, 2, 21, and 22 environments.
Corrosion-Resistant Build: Constructed from Electro-polished Stainless Steel 316L, providing maximum protection against salt air, chemicals, and extreme oxidation.
High-Resolution 5MP Imagery: Captures at 2592 x 1944 resolution, providing superior forensic detail compared to standard HD explosion-proof cameras.
Motorized Vari-focal Lens: Features a 3.0mm – 13.5mm motorized lens, allowing for remote focus and zoom adjustment—critical for hazardous areas where manual maintenance is difficult and dangerous.
LightMaster NIR Performance: Exceptional low-light sensitivity (0.001 Lux), delivering clear images in dimly lit industrial corridors.
Powerful Night Vision: Integrated IR LEDs provide a viewing range of up to 30 meters (98 ft) in total darkness.
Extreme Temperature Resilience: Engineered to start and operate in temperatures ranging from -40°C to +60°C, making it suitable for both cryogenic and high-heat industrial processes.
Integrated AI Analytics: Supports Video Motion Detection, Active Tampering Alarms, and Trip Zone analytics to automate perimeter security in restricted areas.
Technical Specifications
VIDEO & LENS
Image Sensor: 1/2.8″ Progressive Scan CMOS.
Max. Resolution: 2592 x 1944 (5MP).
Lens Type: Motorized Vari-focal (3.0mm – 13.5mm).
Field of View: Horizontal: 91° (Wide) to 31° (Tele).
Min. Illumination: Color: 0.001 Lux @ F1.2 / B/W: 0 Lux (IR LED On).
Dynamic Range: 120dB (True WDR).
NETWORK & STORAGE
Compression: H.265, H.264, M-JPEG.
Protocol: DirectIP 2.0 (Plug-and-Play), ONVIF Profile S/T.
Edge Storage: microSD/SDHC/SDXC slot for local recording backup.
Cybersecurity: SSL Encryption, Password Protection, IP Filtering.
ELECTRICAL & MECHANICAL
Explosion-Proof Rating: Ex db IIC T6 Gb / Ex tD A21 T80°C.
Material: Stainless Steel 316L (Electro-polished).
Power Source: PoE (IEEE 802.3af Class 3).
Power Consumption: Max 11W.
Weight: 3.7 kg (8.15 lbs).
Outdoor Rating: IP67 (Weatherproof)
