DC-S6261X PTZ Camera

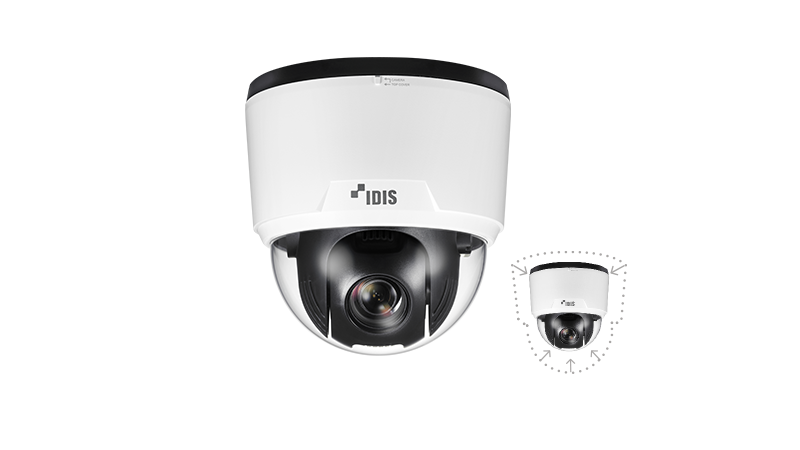

IDIS DC-S6261X PTZ Camera

Compact, High-Performance Surveillance

The IDIS DC-S6261X is a 2MP PTZ (Pan-Tilt-Zoom) dome camera designed for high-performance, intelligent surveillance. Combining compact design, ease of installation, and advanced imaging capabilities, this speed dome camera is ideal for monitoring mid-sized areas such as retail stores, banks, and public spaces.

Key Features

• High-Definition Imaging: Equipped with a 1/2.8” CMOS sensor, the DC-S6261X captures crisp full HD 1920x1080 video.

• Powerful Zoom & Aperture: Its AF Zoom Lens offers a focal length range of 5.3–64 mm with an aperture of F1.6–2.8 and a DC Auto Iris (Hall Sensor), ensuring clear imaging across varying lighting conditions.

• Wide Field of View: The camera provides a wide-angle view of 58.2° (H) and a telephoto view of 4.83° (H), enabling detailed monitoring of both close and distant subjects.

• Low-Light Performance: With minimum illumination levels of 0.1 Lux in color mode and 0.01 Lux in black & white, the DC-S6261X excels in low-light scenarios.

• Enhanced Imaging Features: Includes True WDR (120 dB) for high contrast scenes, EIS (Electronic Image Stabilization), de-fog capability, and intelligent codecs like H.265, H.264, and M-JPEG for efficient video compression.

• Smart Surveillance: The camera supports motion detection, audio detection, tampering alarms, and trip zone features, enhancing automated monitoring.

• Durable Outdoor Design: Rated for IK10 vandal resistance and outdoor-ready operation from -10°C to +50°C (14°F–122°F), making it suitable for challenging environments.

• Flexible Power Options: Operates on 12V DC or PoE (IEEE 802.3af Class 3) with a low power consumption of 9.2–10W.

• Compact & Lightweight: Dimensions of Ø155 mm x 158.1 mm (Ø6.1" x 6.22") and weight of 1.0 kg (2.2 lb) make installation quick and unobtrusive.

Applications

The DC-S6261X is ideal for scenarios requiring high-detail PTZ surveillance with minimal maintenance. Its compact design and advanced imaging features are particularly suited for:

• Retail and banking environments

• Public infrastructure monitoring

• Mid-sized commercial sites

With IDIS plug-and-play technology, the DC-S6261X simplifies deployment, making it a reliable choice for both new installations and upgrades.
