The DC-S3283EX is a high-performance 2MP Explosion-Proof PTZ Camera, representing the pinnacle of IDIS’s specialty engineering for hazardous environments. For KYR Company, this is the definitive choice for large-scale industrial monitoring in sites such as oil refineries, gas plants, and chemical storage facilities where both wide-area coverage and high-speed precision are required.

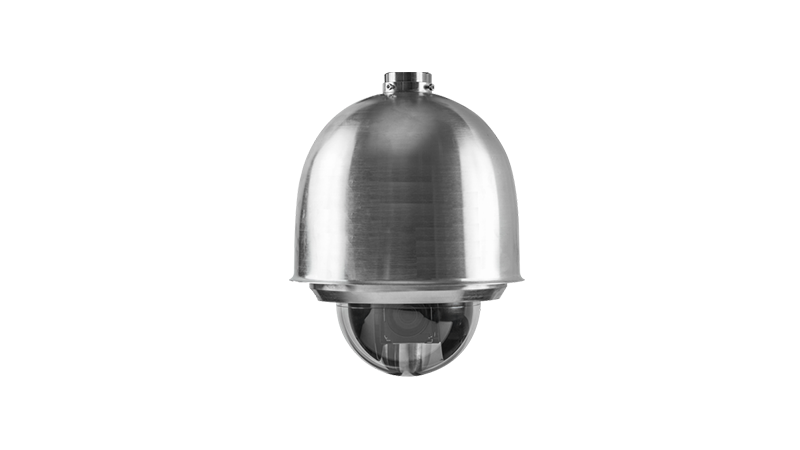

DC-S3283EX
2MP 30x Explosion-Proof PTZ Camera
The DC-S3283EX is designed to provide proactive surveillance in areas where explosive gases or dust are a constant threat. Encased in a heavy-duty Stainless Steel 316L housing, it combines full PTZ (Pan-Tilt-Zoom) functionality with a powerful 30x optical zoom, allowing security teams to inspect minute details from a safe distance in high-risk zones.
Product Features
Hazardous Area Certified: Rated Ex db IIC T6 Gb (Gas) and Ex tD A21 T80°C (Dust), ensuring safety in Zone 1, 2, 21, and 22 environments.
Superior 30x Optical Zoom: Features a 4.3mm – 129mm auto-focus lens, enabling long-range identification of personnel, equipment labels, or potential leaks.
Full HD 1080p Resolution: Captures crisp video at 1920 x 1080, ensuring forensic-quality evidence during critical incidents.
High-Speed PTZ Performance: Provides smooth 360° endless panning and high-speed tilting to track moving objects or switch between 256 programmable presets instantly.
Corrosion-Resistant Stainless Steel 316L: Built to withstand the harshest industrial and marine atmospheres, including high salt content and chemical exposure.
True WDR (120dB): Successfully manages extreme light and shadow, providing balanced exposures even in high-contrast outdoor industrial settings.
Intelligent Image Optimization: Equipped with DIS (Digital Image Stabilization) to ensure steady video during heavy vibrations or high winds—typical in industrial environments.
Extreme Temperature Operation: Operational from -40°C to +60°C, featuring a built-in heater and fan for 24/7 reliability in any climate.
Technical Specifications
VIDEO & LENS
Image Sensor: 1/3″ Progressive Scan CMOS.
Max. Resolution: 1920 x 1080 (2MP).
Focal Length: Optical 30x (4.3mm – 129mm).
Field of View: Horizontal: 64.7° (Wide) to 2.3° (Tele).
Min. Illumination: Color: 0.1 Lux @ F1.6 / B/W: 0.01 Lux @ F1.6.
PAN / TILT PERFORMANCE
Pan Range: 360° Endless.
Tilt Range: Typical range covering standard PTZ angles for hazardous enclosures.
Preset Speed: Up to 420°/sec.
Presets: 256 positions.
NETWORK & STORAGE
Compression: H.265, H.264, M-JPEG.
Protocol: DirectIP 2.0 (Plug-and-Play), ONVIF Profile S.
Edge Storage: microSD/SDHC/SDXC slot with Smart Failover.
Network: RJ-45 (10/100/1000Base-T) Gigabit Ethernet.
ELECTRICAL & MECHANICAL
Certification: Ex db IIC T6 Gb / Ex tD A21 T80°C.
Material: Stainless Steel 316L.
Power Source: PoE (48V DC).
Power Consumption: ≤15.3W (Heater and Fan included).
Dimensions: Ø245mm x 386mm.
Weight: 12.7 kg (28 lbs).
Outdoor Rating: IP67 (Weatherproof)
