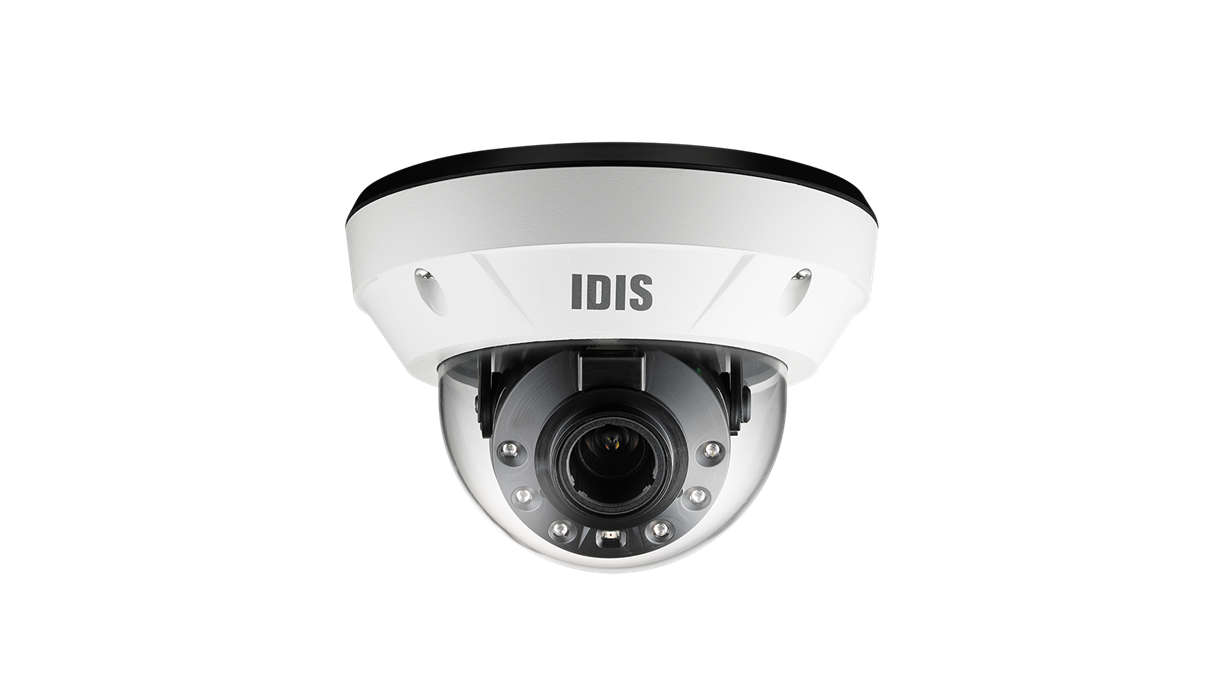

Full HD IR Dome Camera

The DC-D4212R is a high-performance 2MP network dome camera designed for seamless integration with DirectIP systems. It offers crystal-clear Full HD imaging with advanced H.265 compression and high-efficiency IR illumination for 24/7 monitoring.

Product Features

  • Full HD Resolution: 1920 x 1080 @ 30fps for smooth, high-definition video.

  • Wide Angle Lens: Fixed 2.8mm focal length providing a wide 109.2° horizontal field of view.

  • DirectIP Technology: Plug-and-play simplicity with IDIS NVRs.

  • Smart Compression: Supports H.265, H.264, and M-JPEG with Intelligent Codec.

  • Night Vision: Integrated IR LEDs with a viewable length of up to 20m (65.6ft).

  • Multiple Streaming: Supports up to 4 simultaneous streams for various monitoring needs.

  • Power Efficiency: Low power consumption (Max 4.6W) via PoE (Class 2).

Technical Specifications

VIDEO

  • Imaging Device: 1/2.9″ CMOS

  • Max. Resolution: 1920 x 1080

  • Scanning Mode: Progressive Scan

  • Min. Illumination: Color: 0.1 Lux (F2.0) / BW: 0 Lux (IR LED ON)

  • S/N Ratio: More than 45dB

  • Dynamic Range: More than 70dB

LENS

  • Focal Length: Fixed-focal 2.8mm

  • Max. Aperture Ratio: F2.0

  • Angular Field of View: H: 109.2° / V: 59.3° / D: 128.5°

  • Pan / Tilt Range: Manual Pan (0°~350°), Tilt (0°~65°)

OPERATIONAL

  • IR Distance: 20m (65.6ft)

  • Day & Night: True Day & Night (ICR)

  • Backlight Compensation: BLC / HSBLC

  • Digital Noise Reduction: 2DNR / 3DNR

  • Motion Detection: Up to 8 rectangular zones

  • Privacy Masking: Up to 8 rectangular zones

  • Intelligent Video: Tampering, Trip Zone

NETWORK

  • Camera Protocol: DirectIP, ONVIF Profile S

  • Video Compression: H.265, H.264, M-JPEG

  • Bitrate Control: H.265 – CBR / VBR

  • Streaming: Quadruple Streaming

  • Security: SSL Encryption, IP Address Filtering, Multi-user Authority

ENVIRONMENTAL & ELECTRICAL

  • Operating Temperature: -10°C ~ +50°C (+14°F ~ +122°F)

  • Operating Humidity: 0% ~ 90% RH

  • Power Source: PoE (IEEE 802.3af Class 2)

  • Power Consumption: Max 4.6W

MECHANICAL

  • Dimensions (Ø x H): Ø130mm x 81.4mm (Ø5.12″ x 3.20″)

  • Weight: 0.23kg (0.50 lb)
