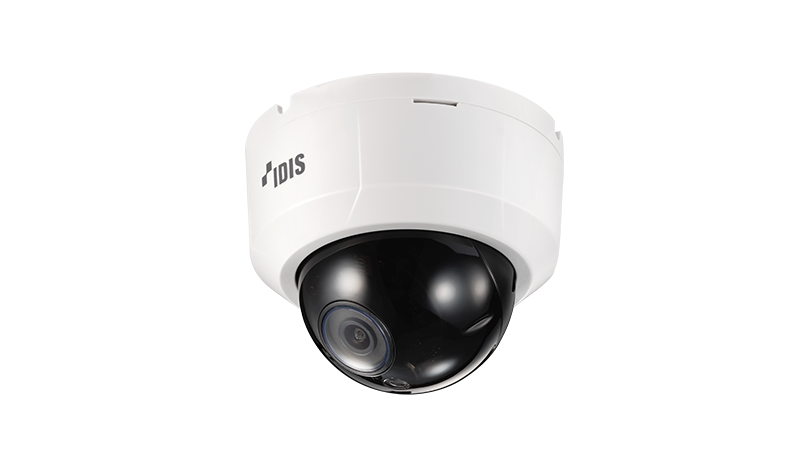

DC-D2531WR IDIS Lite Series Dome Cameras

The DC-D2531WR is a professional 5MP dome camera within the IDIS Lite Series that combines high-resolution forensic detail with the installation convenience of a Motorized Vari-focal Lens. This model is particularly valued by KYR Company for outdoor or high-traffic indoor environments where precision and flexibility are essential.

Product Highlights

• 5MP Ultra-High Definition: Delivers 2592 x 1944 resolution at 30ips, providing clear, high-pixel-density images for digital zooming and facial identification.





• Motorized Vari-focal Lens: Features a 2.7mm – 13.5mm motorized lens, allowing remote focus and zoom adjustment via the NVR or mobile app—eliminating the need for manual lens tuning at the top of a ladder.





• Sony Starvis™ Excellence: Powered by the Sony IMX 335 Starvis sensor, it offers exceptional low-light performance, maintaining color images in dimly lit areas before switching to IR.





• Superior Night Vision: Equipped with 4 high-power IR LEDs, providing a clear viewing distance of up to 25 meters (82 ft) in complete darkness.





• True WDR (120dB): Successfully manages extreme lighting contrasts, such as subjects in front of bright glass windows or sunlit entryways, ensuring balanced exposures.





• Vandal & Weather Resistant: Fully ruggedized with an IK10 impact rating and IP67 weatherproof rating, making it suitable for exposed outdoor installations.





• Advanced Storage Efficiency: Supports H.265 and triple streaming, significantly reducing bandwidth and storage usage by up to 90%.





• Enterprise-Level Security: Fully NDAA & TAA compliant, meeting the highest global cybersecurity and manufacturing standards for critical projects.





Technical Specifications

VIDEO & IMAGE

• Image Sensor: 1/2.8" Sony Starvis CMOS.





• Max. Resolution: 2592 x 1944 (5MP).





• Lens Type: Motorized Vari-focal (2.7mm – 13.5mm).





• Field of View: Horizontal: 108.1° (Wide) to 30.3° (Tele).





• Min. Illumination: Color: 0.001 Lux @ F1.6 / B/W: 0 Lux (IR LED On).





• Day & Night: True Day & Night with IR Cut Filter (ICR).





NETWORK & INTEGRATION

• Compression: H.265 (Main), H.264, M-JPEG.





• Audio: Two-way Audio (Line-In / Line-Out).





• Alarm I/O: 1 Input / 1 Output.





• Edge Storage: microSDHC / microSDXC slot (up to 512GB) with Smart Failover.





• Protocols: ONVIF Profile S/T, IDIS Lite, API.





ELECTRICAL & MECHANICAL

• Power Source: PoE (IEEE 802.3af Class 2) or 12V DC.





• Power Consumption: 6.1W.





• Dimensions: Ø130mm x 110mm (Ø5.11” x 4.33”).





• Weight: 0.74 kg (1.63 lbs).





• Operating Temp: -10°C to +60°C (+14°F to +140°F).
