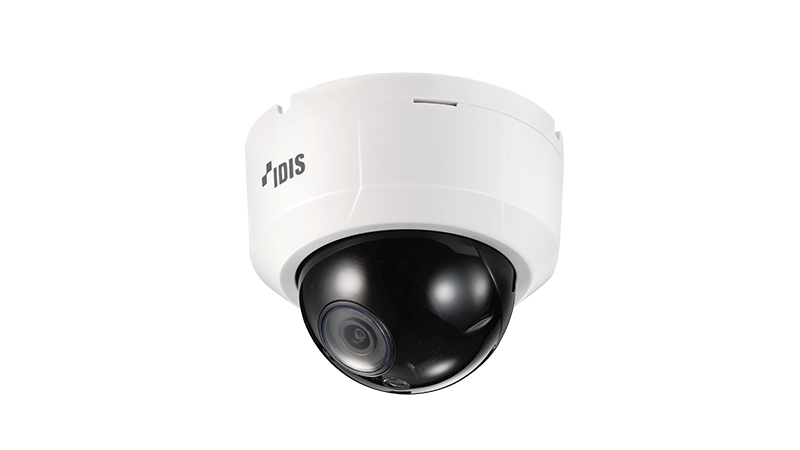

DC-D2511R IDIS Lite Series Dome Cameras

The DC-D2511R is a powerful 5MP entry in the IDIS Lite Series. It bridges the gap between standard 1080p and ultra-high-definition 4K, providing KYR Company clients with 2.5 times the resolution of Full HD. This makes it an ideal choice for banks, upscale retail, and office receptions where identifying fine details like currency or facial characteristics is a priority.

Product Highlights

• 5MP Forensic Detail: Captures video at 2592 x 1944 resolution, offering significantly higher pixel density for digital zooming compared to 2MP cameras.





• Sony Starvis™ Powered: Built with the 1/2.8" Sony Starvis CMOS sensor, ensuring the camera maintains high-quality color images even in low-light indoor environments.





• True WDR (120dB): Effectively manages high-contrast lighting (e.g., subjects standing in front of bright windows), delivering balanced and clear exposures.



• Smart Night Vision: Equipped with high-power IR LEDs that provide even illumination in total darkness up to 20 meters (66 ft).





• Compact & Discrete: Featuring a "Non-reflection" and "Heat-radiation" structure, this dome is designed for longevity and clear imaging in a small, professional form factor.





• Triple Streaming & H.265: Supports H.265 compression to save up to 90% on storage and bandwidth, allowing for triple simultaneous streams for monitoring and recording.





• Edge Storage: Includes a microSD slot (up to 512GB) with IDIS Smart Failover, ensuring no footage is lost if the network connection is interrupted.





• Fully Compliant: NDAA & TAA compliant, meeting the highest international standards for cybersecurity and manufacturing.





Technical Specifications

VIDEO & IMAGE

• Image Sensor: 1/2.8" Sony Starvis CMOS.





• Max. Resolution: 2592 x 1944 (5MP).





• Max. Frame Rate: 30ips @ 2592 x 1944.





• Lens Type: Fixed-focal (2.8mm).





• Aperture: F1.6 (Superior light intake).





• Field of View: Horizontal: 106.9° / Vertical: 56.9° / Diagonal: 127.9°.





• Min. Illumination: Color: 0.001 Lux @ F1.6 / B/W: 0 Lux (IR LED On).





NETWORK & INTEGRATION

• Compression: H.265, H.264, M-JPEG.





• Protocols: API, ONVIF Profile S/T, IDIS Lite.





• Intelligence: Video Motion Detection, Active Tampering Alarm.





• Security: SSL Encryption, Multi-user Authority, IP Filtering.





ELECTRICAL & MECHANICAL

• Power Source: PoE (IEEE 802.3af Class 2) or 12V DC.





• Power Consumption: Ultra-low 3.82W.





• Dimensions: Ø111.9mm x 88.2mm (Ø4.40” x 3.47”).





• Weight: 0.32 kg (0.71 lbs).





• Operating Temp: -10°C to +50°C (+14°F to +122°F).
