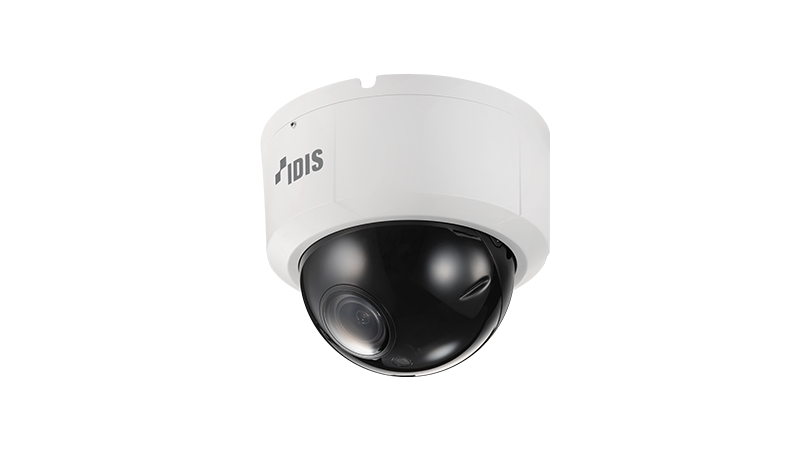

DC-D2234WR IDIS Lite Series Dome Cameras

The DC-D2234WR is a professional-grade 2MP (1080p) dome camera from the IDIS Lite Series. It is a major upgrade over fixed-lens models because it features a Motorized Vari-focal Lens, giving KYR Company the flexibility to adjust the zoom and focus remotely to perfectly fit any specific indoor or outdoor scene.

Product Highlights

• Motorized Vari-focal Convenience: Equipped with a 2.7mm – 13.5mm motorized lens, allowing you to zoom in on distant targets or widen the view for area coverage without opening the camera.



• Sony Starvis™ Technology: Features the 1/2.8" Sony Starvis CMOS sensor for industry-leading low-light performance, producing clear color images in extremely dark conditions.



• Full HD Excellence: Delivers 1080p resolution at 30ips with True WDR (120dB) to handle lighting extremes and backlighting.



• Rugged & Weatherproof: Built for tough environments with IP67 (weatherproof) and IK10 (vandal-resistant) ratings.



• Optimized Night Vision: Equipped with 4 high-power IR LEDs that provide illumination up to 25 meters (82 ft).



• Efficient Data Management: Supports H.265 and triple streaming, significantly reducing bandwidth and storage requirements.



• Plug-and-Play Security: Fully NDAA compliant and compatible with DirectIP™ NVRs for a secure, easy setup.



Technical Specifications

VIDEO & LENS

• Image Sensor: 1/2.8" Sony IMX 307 Starvis CMOS.



• Max. Resolution: 1920 x 1080 (2MP).



• Lens Type: Motorized Vari-focal (2.7mm – 13.5mm).



• Aperture: F1.6 – F3.3.



• Angular Field of View:



  • Wide: 108.1°(H) / 56.3°(V)



  • Tele: 30.3°(H) / 17.1°(V)



• Min. Illumination: Color: 0.001 Lux @ F1.6 / B/W: 0 Lux (IR LED On).



NETWORK & INTEGRATION

• Compression: H.265, H.264, M-JPEG.



• IP Camera Protocol: API, ONVIF Profile S/T, IDIS Lite.



• Audio: Two-way Audio (Line-In / Line-Out).



• Alarm I/O: 1 Input / 1 Output.



• Edge Storage: microSDHC / microSDXC slot (up to 512GB).



ELECTRICAL & MECHANICAL

• Power Source: PoE (IEEE 802.3af Class 2) or 12V DC.



• Power Consumption: 5.72W.



• Dimensions: Ø130mm x 110mm (Ø5.11” x 4.33”).



• Weight: 0.74 kg (1.63 lbs).



• Operating Temp: -10°C to +50°C (+14°F to +122°F).
