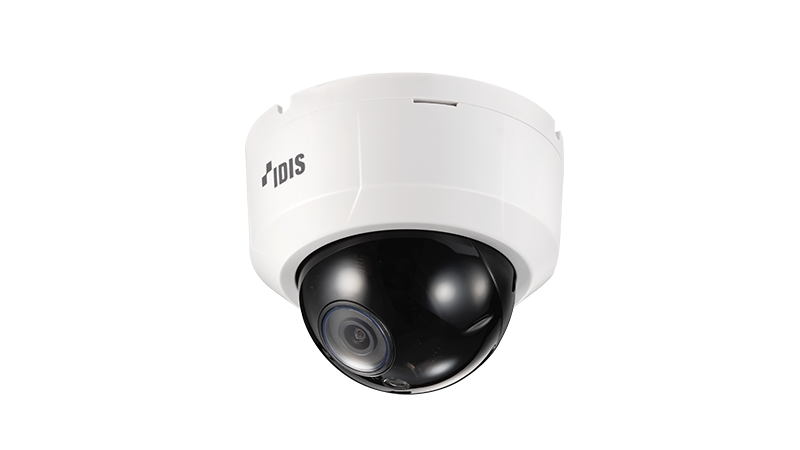

DC-D2214R IDIS Lite Series Dome Cameras

The DC-D2214R is a key part of the IDIS Lite Series, offering a high-performance yet cost-effective 2MP (1080p) surveillance solution. Powered by the Sony Starvis sensor, it excels in low-light environments, making it a reliable choice for KYR Company’s commercial and residential projects that require 24/7 clarity without the enterprise price tag.

Product Highlights

• Sony Starvis™ Excellence: Uses the high-sensitivity 1/2.8" Sony Starvis CMOS sensor to provide exceptional color video even in near-total darkness.



• Full HD Clarity: Delivers crisp 1080p (1920 x 1080) resolution at a smooth 30ips.



• Advanced Low Light (True WDR): Equipped with True Wide Dynamic Range (120dB) to handle high-contrast lighting, such as glass storefronts or bright lobbies.



• Rugged & Weatherproof: Rated IP67, making it fully resistant to heavy rain and dust. It also features a non-reflection and heat-radiation structure for long-term outdoor durability.



• Optimized Night Vision: Features 4 high-power IR LEDs providing a clear night-vision range of up to 25 meters (82 ft).



• Efficient Storage: Supports H.265 compression and triple streaming to minimize bandwidth and storage costs.



• Plug-and-Play Security: Fully NDAA & TAA compliant, ensuring it meets the strictest security standards for sensitive installations.



Technical Specifications

VIDEO & LENS

• Image Sensor: 1/2.8" Sony IMX 307 Starvis CMOS.



• Max. Resolution: 1920 x 1080 (2MP).



• Lens Type: Fixed-focal (2.8mm).



• Aperture: F1.6 (Large aperture for better light intake).



• Field of View: Horizontal: 106.9° / Vertical: 56.9° / Diagonal: 127.9°.



• Min. Illumination: Color: 0.001 Lux @ F1.6 / B/W: 0 Lux (IR LED On).



NETWORK & INTEGRATION

• Compression: H.265 (Main), H.264, M-JPEG.



• Streaming: Triple Streaming capability.



• Protocols: ONVIF Profile S/T, IDIS Lite, API.



• Event Triggers: Motion Detection, Tampering Alarm.



• Edge Storage: microSDHC / microSDXC slot for local recording.



ELECTRICAL & MECHANICAL

• Power Source: PoE (IEEE 802.3af Class 2) or 12V DC.



• Power Consumption: Ultra-low 4.6W.



• Dimensions: Ø111.9mm x 88.2mm (Ø4.40” x 3.47”).



• Weight: 0.325 kg (0.71 lb).



• Operating Temp: -10°C to +50°C (+14°F to +122°F).
