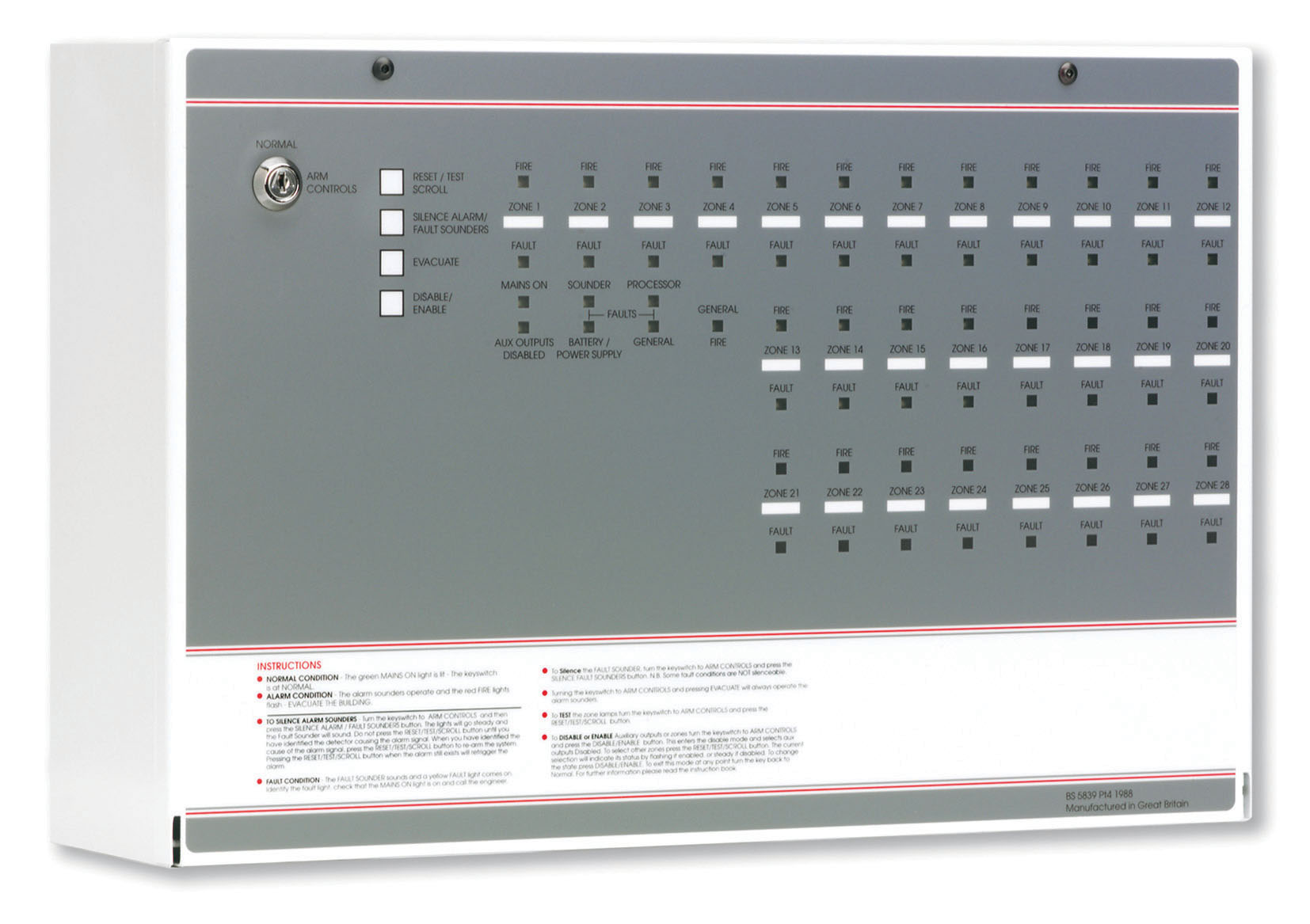

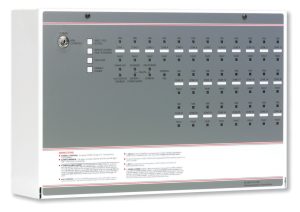

16 Zone Conventional, Control Panels , Large System, EN54 Systems, it's a Fire Alarm System having 16 conventional Zone circuits (expandable to 28) and 4 conventional Sounder circuits
Microprocessor based design.
Robust metal enclosure c/w lift off lid & heavy-duty base connections.
16 conventional Zone circuits (expandable to 28).
4 conventional Sounder circuits.
Separate indicators for open circuit, short circuit, head-out, sounder & battery/power supply faults.
Non-latching class change sounder input, latching fire & non-latching fault outputs (via expansion loom).
Zone selectable short circuit=fire facility (pre-1980 BS, no resistors in call points).
Up to 8 two-wire Repeaters per Main panel.
Multi-lingual variants (subject to quantities).
Space for 2 x 12V 7Ah VRLA batteries.
Compatible with virtually all known conventional fire detectors including C-TEC’s ActiV range.
Designed to comply with BS 5839-4 (this panel in not compliant with EN54-2/4 and should NOT be used in new UK or European installations).
